genie Basic Settings
24
R6300 WiFi Router 802.11ac Dual Band Gigabit

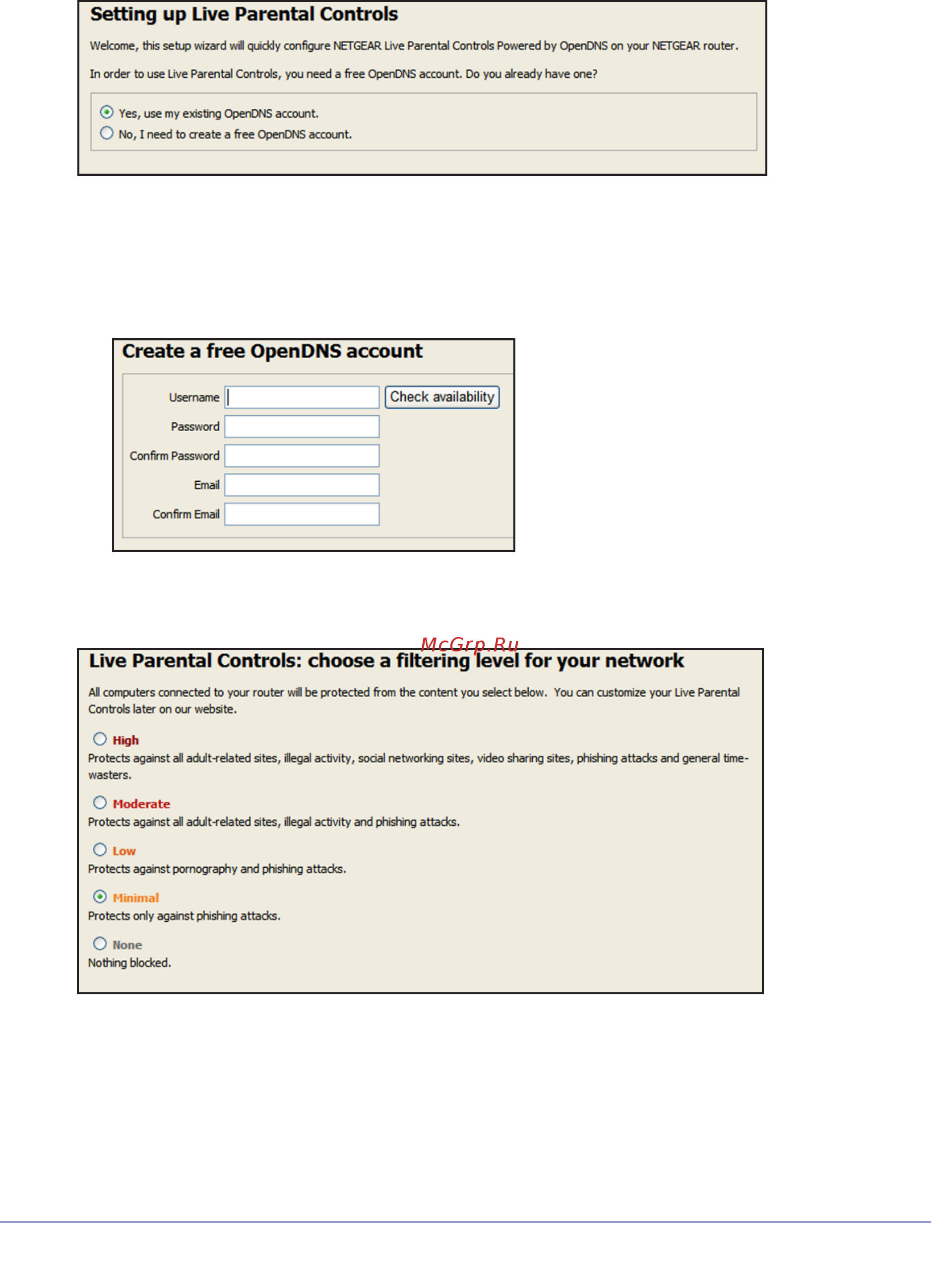

Because Live Parental Controls uses free OpenDNS accounts, you are prompted to log in
or create a free account.
5. Select the radio button that applies to you, and click Next.
• If you already have an OpenDNS account, leave the Yes radio button selected.
•
If you do not have an OpenDNS account, select the No radio button.
If you are creating an account, the following screen displays:
• Fill in the fields and click Next.
After you log on or create your account, the filtering level screen displays:
