Netgear R6300 [11/127] The label on the bottom of the router shows the login information mac address and serial number

Hardware Setup

R6300 WiFi Router 802.11ac Dual Band Gigabit

Label

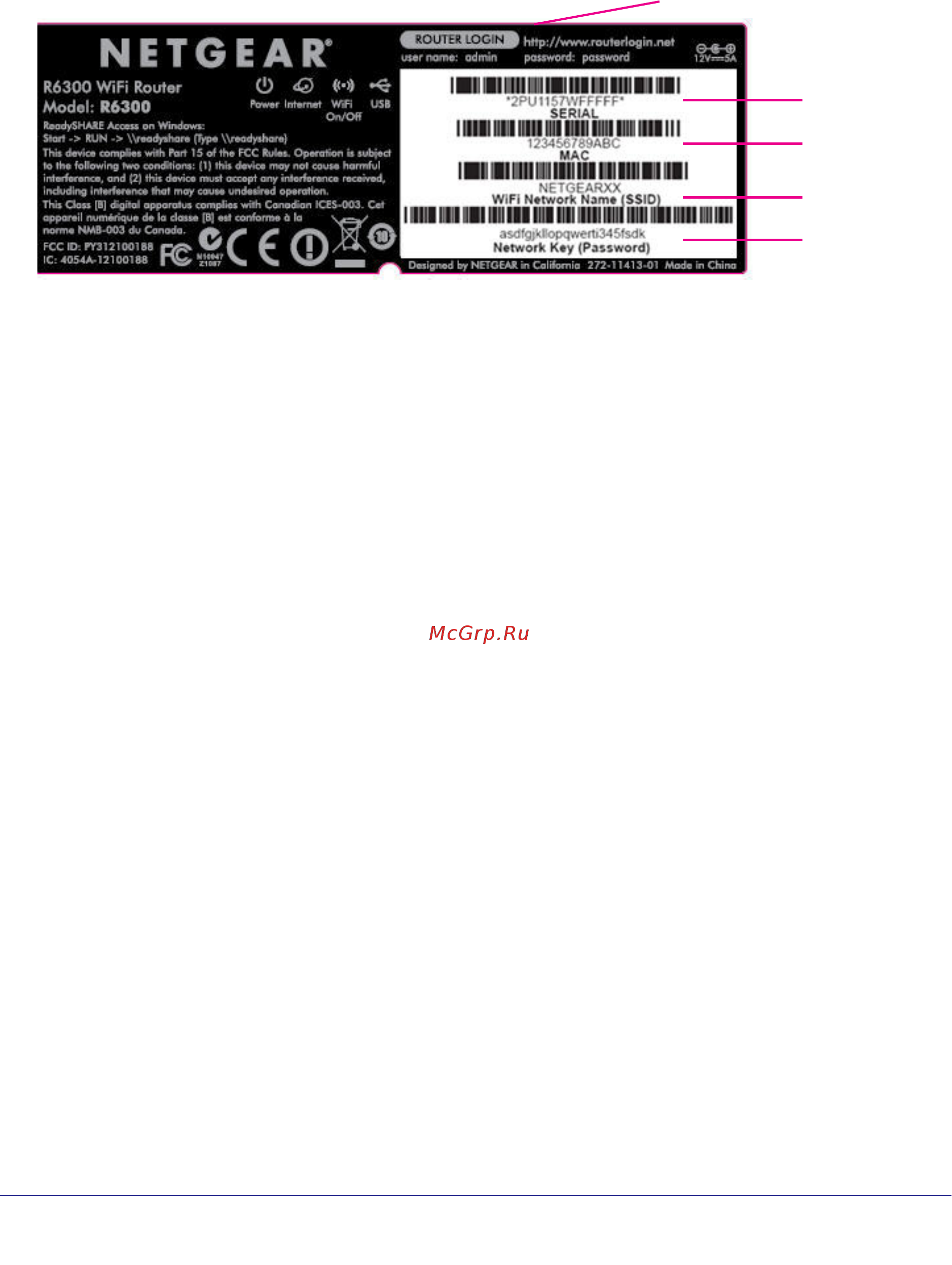

The label on the bottom of the router shows the login information, MAC address, and serial

number.

MAC address

Serial number

Preset WiFi

Default access information

Preset SSID

password

Figure 4. The label shows unique information about your router
