Administration
72
R6300 WiFi Router 802.11ac Dual Band Gigabit
View Router Status

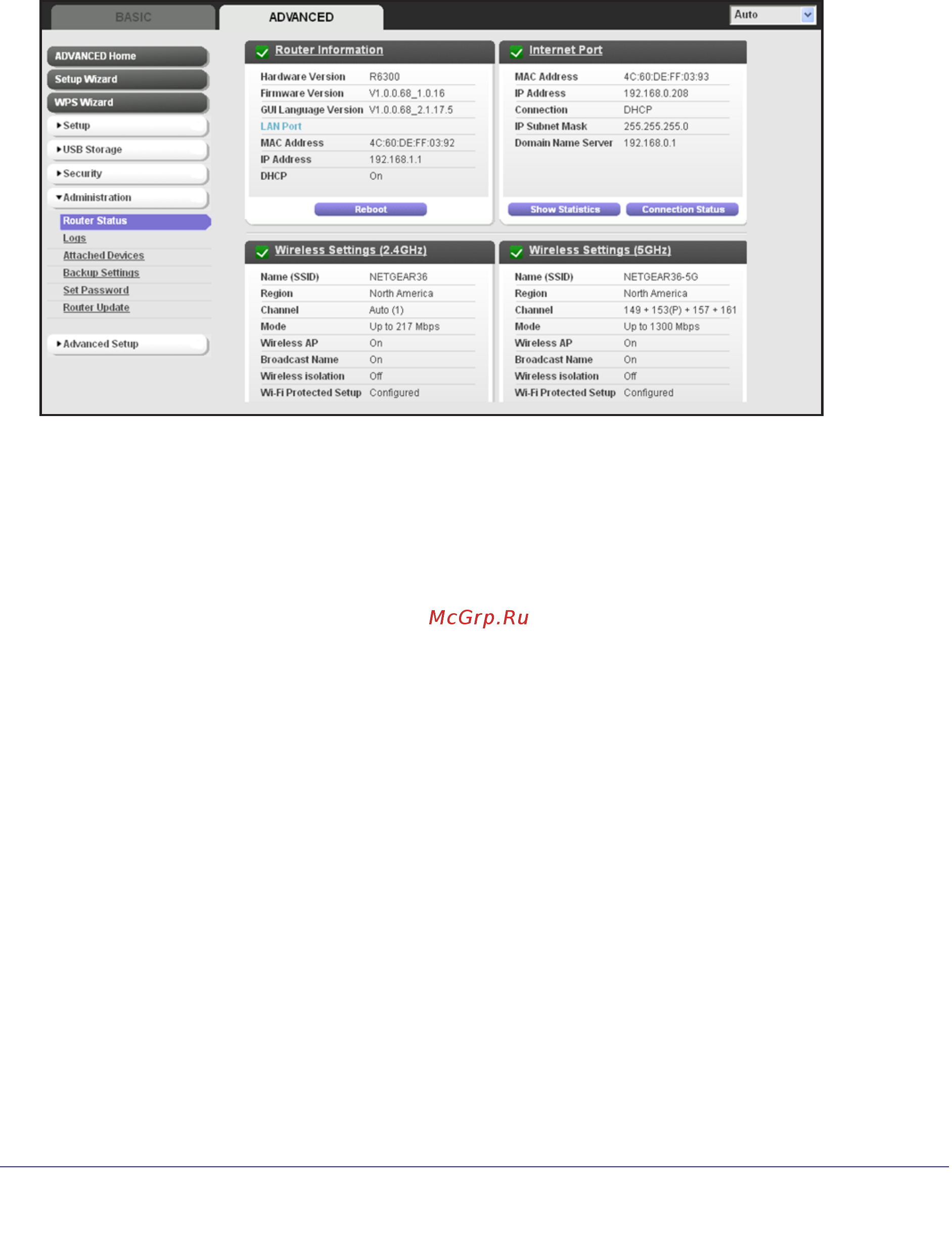

To view router status and usage information, select Advanced Home or select
Administration > Router Status to display the following screen:
Router Information
Hardware Version. The router model.
Firmware Version. The version of the router firmware. It changes if you upgrade the router
firmware.
GUI Language V
ersion. The localized language of the user interface.
LAN Port.
• MAC Address. The Media
Access Control address. This is the unique physical address
used by the Ethernet (LAN) port of the router.
• IP Address. The IP address used by the Ethernet (LAN) port of the router.
The default is
192.168.1.1.
• DHCP Server. Identifies whether the router’s built-in DHCP server is active for devices on
the LAN.
Internet Port (WAN) Setup
MAC Address. The Media Access Control address, which is the unique physical address
used by the Internet (WAN) port of the router.
IP Address. The IP address used by the Internet (WAN) port of the router. If no address is
shown or the address is 0.0.0, the router cannot connect to the Internet.
