![Netgear R6300 [53/127] Safely remove a usb drive](/img/pdf.png)
Netgear R6300 [53/127] Safely remove a usb drive
![Netgear R6300 [53/127] Safely remove a usb drive](/views2/1205509/page53/bg35.png)
USB Storage
53
R6300 WiFi Router 802.11ac Dual Band Gigabit
• Read Access and Write Access. Shows the permissions and access controls on the
network folder: All - no password (the default) allows all users to access the network
folder. The password for admin is the same one that you use to log in to the router.
• Folder Name. Full path of the network folder
.
•
Volume Name. V
olume name from the storage device (either USB drive or HDD).
• Total Space and Free Space. Shows the current utilization of the storage device.
Safely Remove a USB Drive
To remove a USB disk drive safely, select USB Storage > Basic Settings, and click the
Safely Remove USB Device button. This takes the drive offline.
Media Server Settings
By default, the router is set up to act as a Ready DLNA media server. This setting lets you
view movies and photos on DLNA/UPnP AV–compliant media players, such as Xbox360,
Playstation, and NETGEAR’s Digital Entertainer Live.

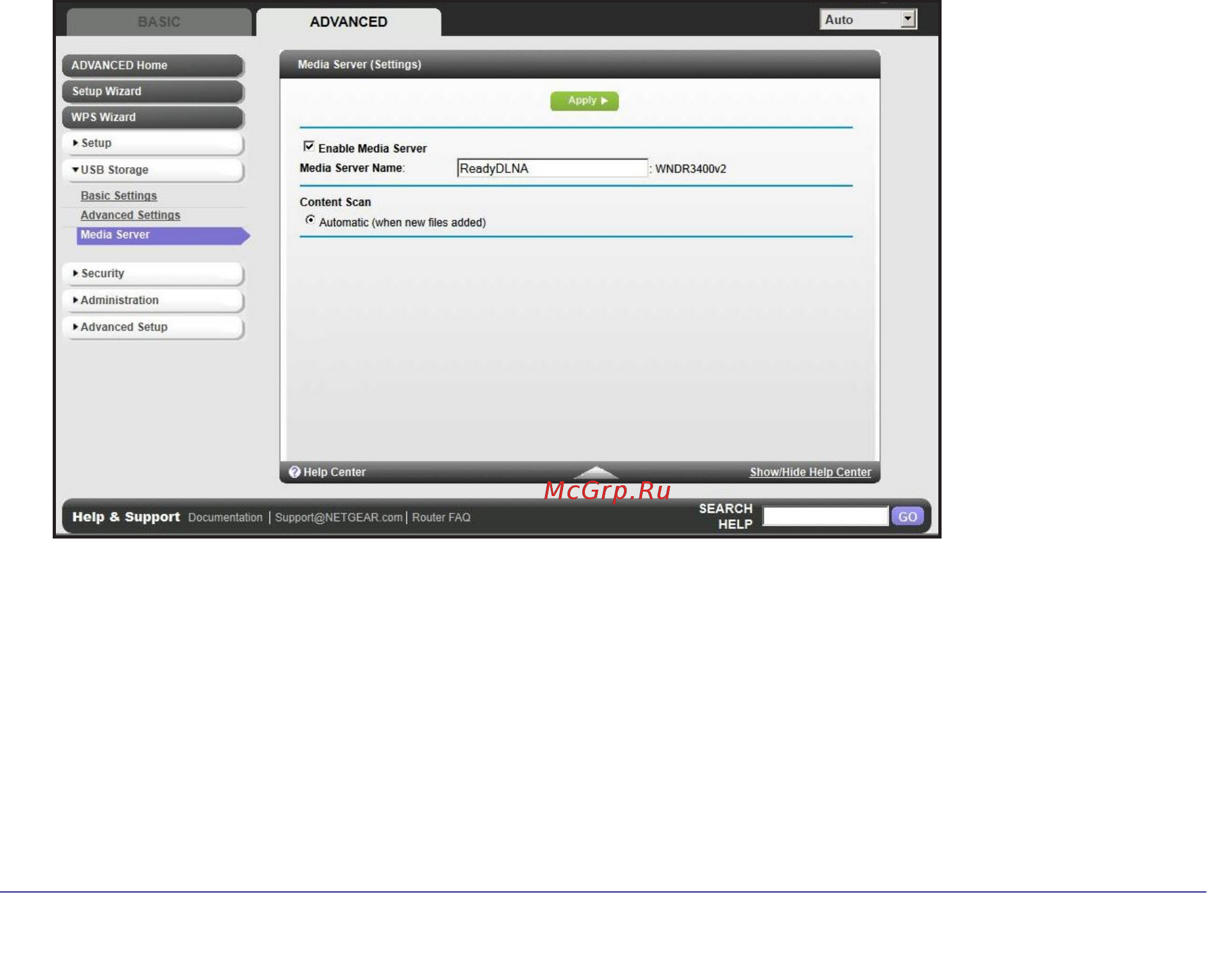

To view these settings, select Advanced > USB Storage > Media Server to display the
following screen:
By default the Enable Media Server check box and the Automatic (when new files are added)
radio button are selected. When these options are selected, the router scans for media files
whenever new files are added to the ReadySHARE USB hard drive.
