Advanced Settings
83
R6300 WiFi Router 802.11ac Dual Band Gigabit

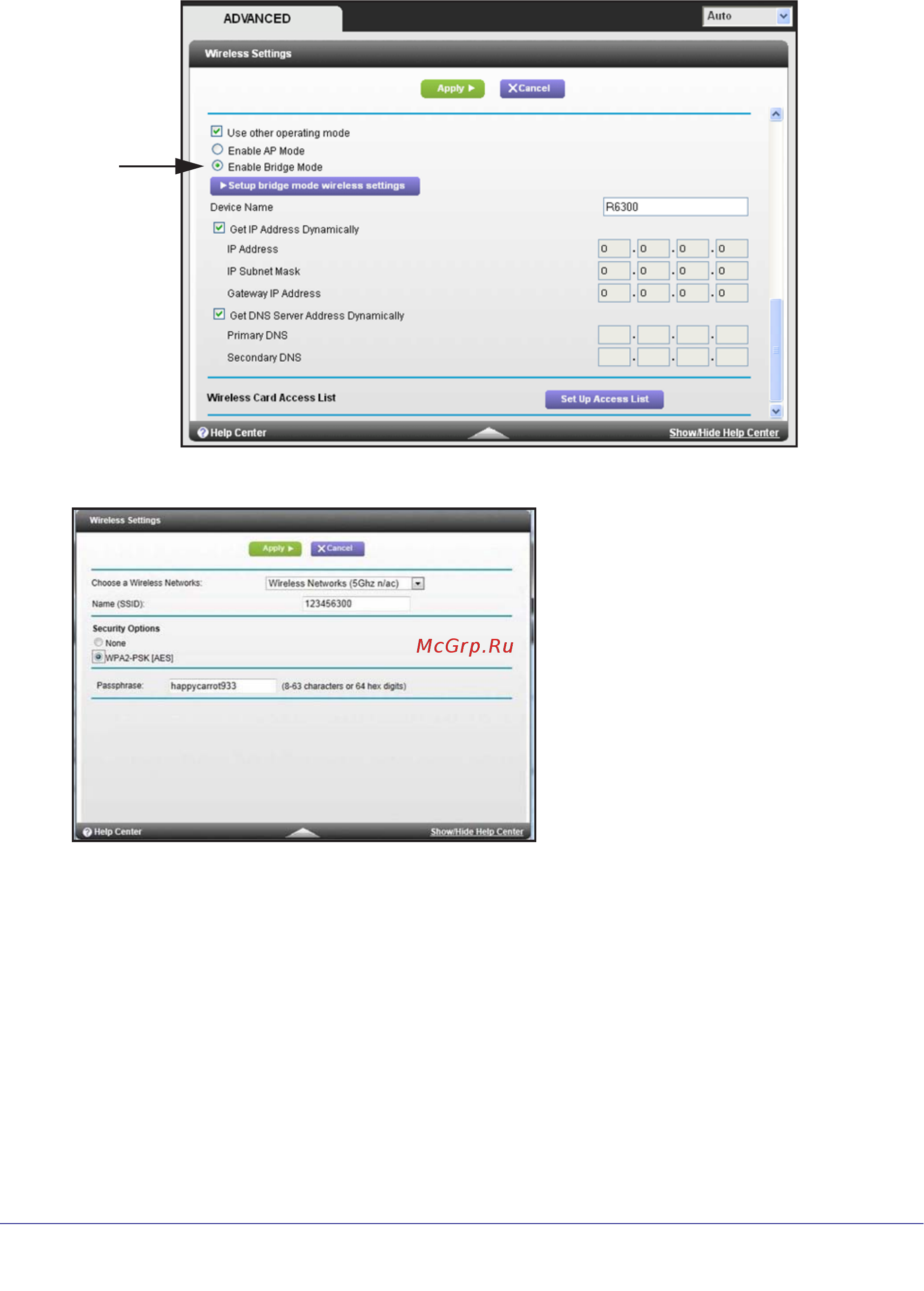

3. Scroll down to view the Use other operating mode setting and select the Enable Bridge
mode radio button.
The following screen displays:
4. Click the Setup bridge mode wireless settings button, and specify the settings of the
wireless network to which your bridge mode router will connect:
a. In the Choose a Wireless Network drop-down list, select the wireless network
frequency (2.4 GHz or 5 GHz) of the router you are connecting to.
b. T
ype the wireless network name (SSID) of the router you are connecting to.
c. Select the security option for the router you are connecting to.
d. T
ype the passphrase of the router you are connecting to.
e. Click Apply.
5. Click Apply
again on Wireless Settings screen.
The R6300 router reboots and connects to the base router within a few minutes.
