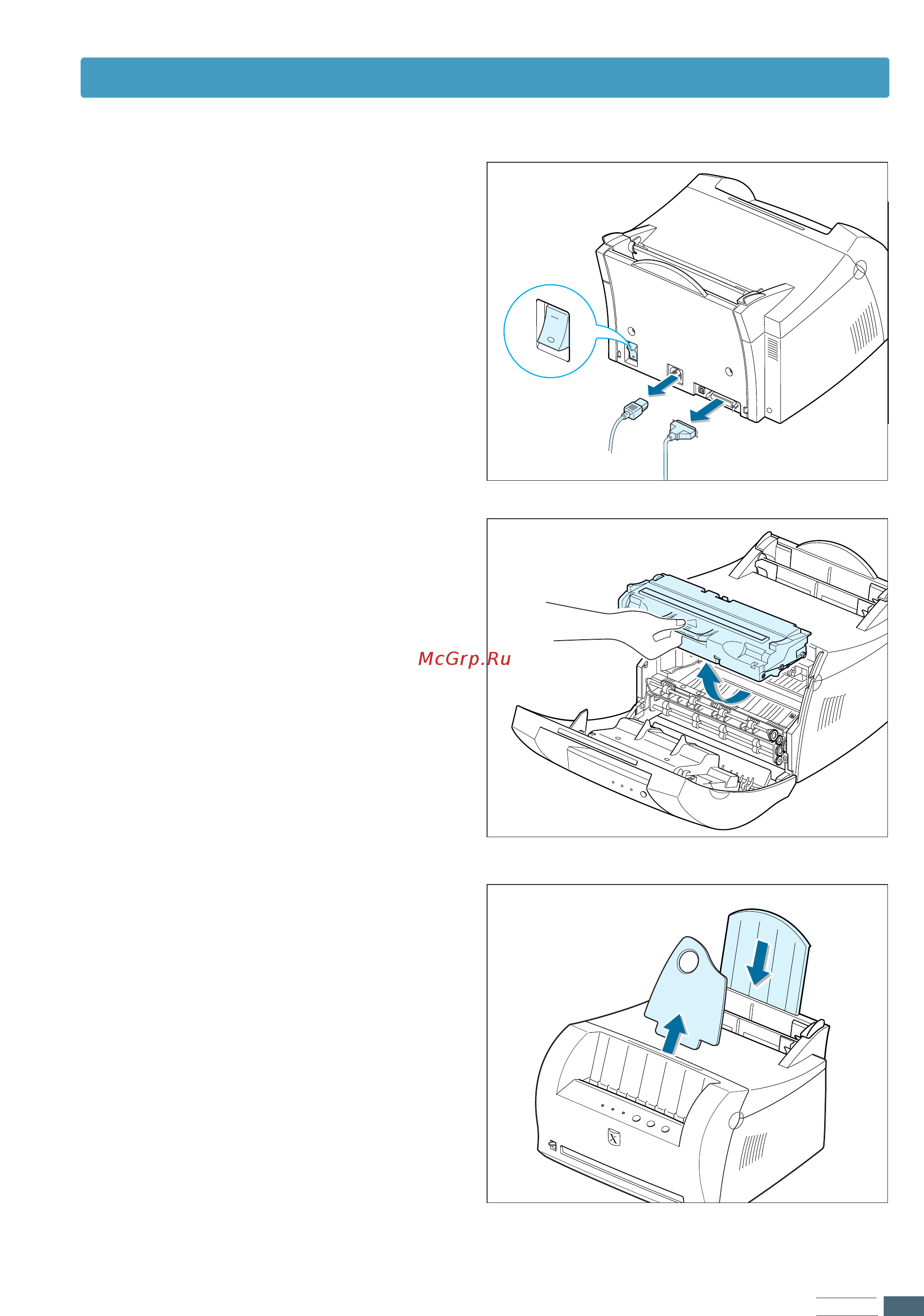

APPENDIX
A.25
Installing Optional Memory
1
Turn the printer power off and unplug
all cables from the printer.
2
Open the front cover and remove the
toner cartridge.
3
Remove the paper output support and
push down on the paper support until it
is recessed into the printer body.
