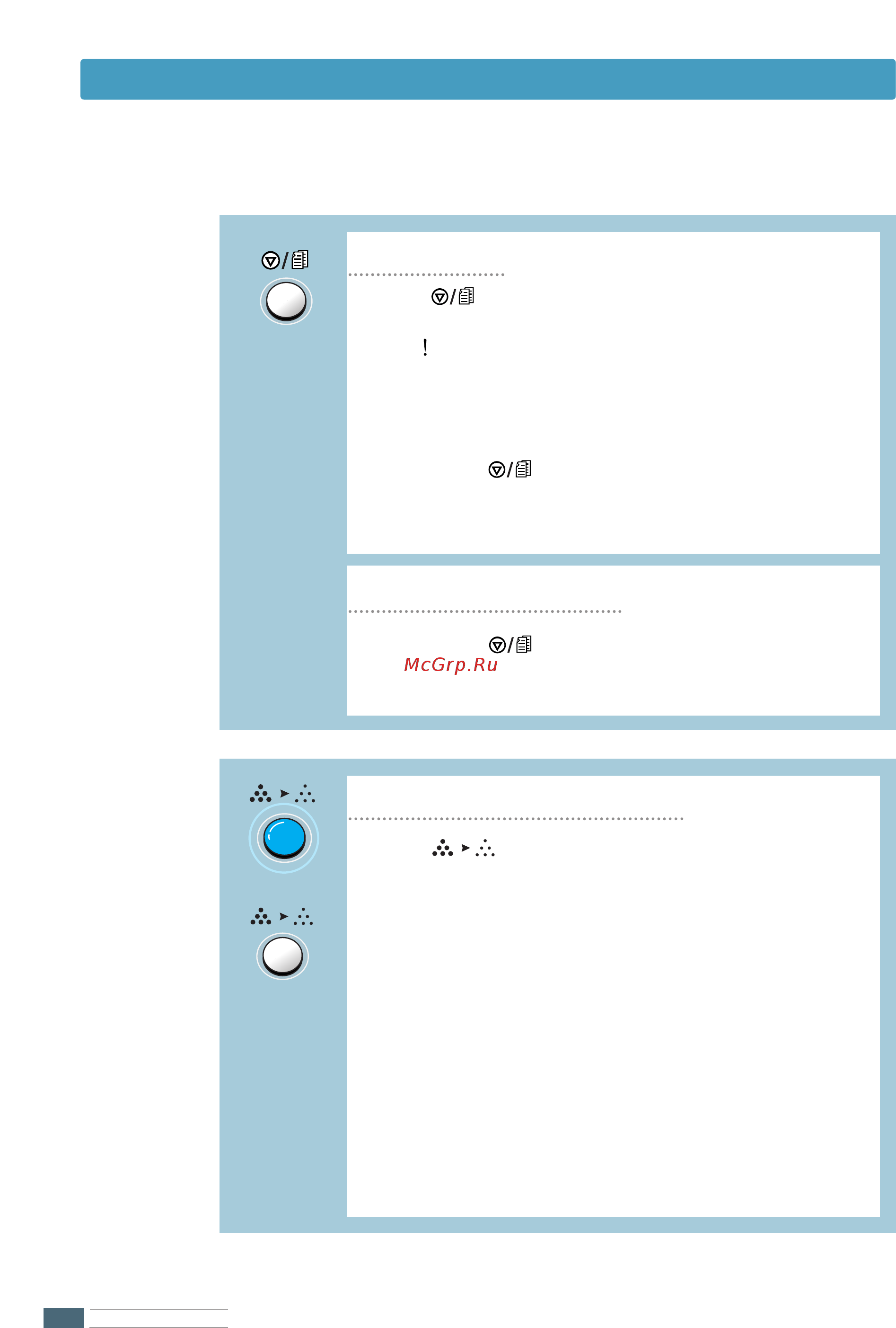

USING CONTROL PANEL
3.2
Control Panel Buttons
Reprint last page of the job
Press and hold until the control panel lights
blink to cancel a job the printer is currently printing.
The light will blink while the print job is cleared
from both the printer and the computer, and then the
printer will return to the Ready mode. This may take
some time, depending on the size of the print job.
Note: If the button is accidentally pushed, the
job must be reprinted. There is no undo function.
If you press in the Ready mode, the printer
prints the last page of the last print job. See page
5.21.
Cancel job
Press to turn the Toner save mode on or off.
The printer must be in the Ready mode.
• If the button backlight is on, toner save mode
activates and the printer uses less toner to print a
document.
• If the button backlight is off, toner save mode is
disabled and you will print in normal quality.
To enable or disable the Toner Save mode using this
button, the Toner Save Mode option in the printer
driver must be set to Printer Setting.
For further information on the Toner Save mode,
see page 5.6.
(on)
(off)
Turn the Toner Save Mode on/off
