PROBLEM SOLVING
7.7
Note: If paper has entered the toner cartridge area, follow the instructions on page 7.8. It is
easier to remove such jams from the inside of the printer than the paper input area.

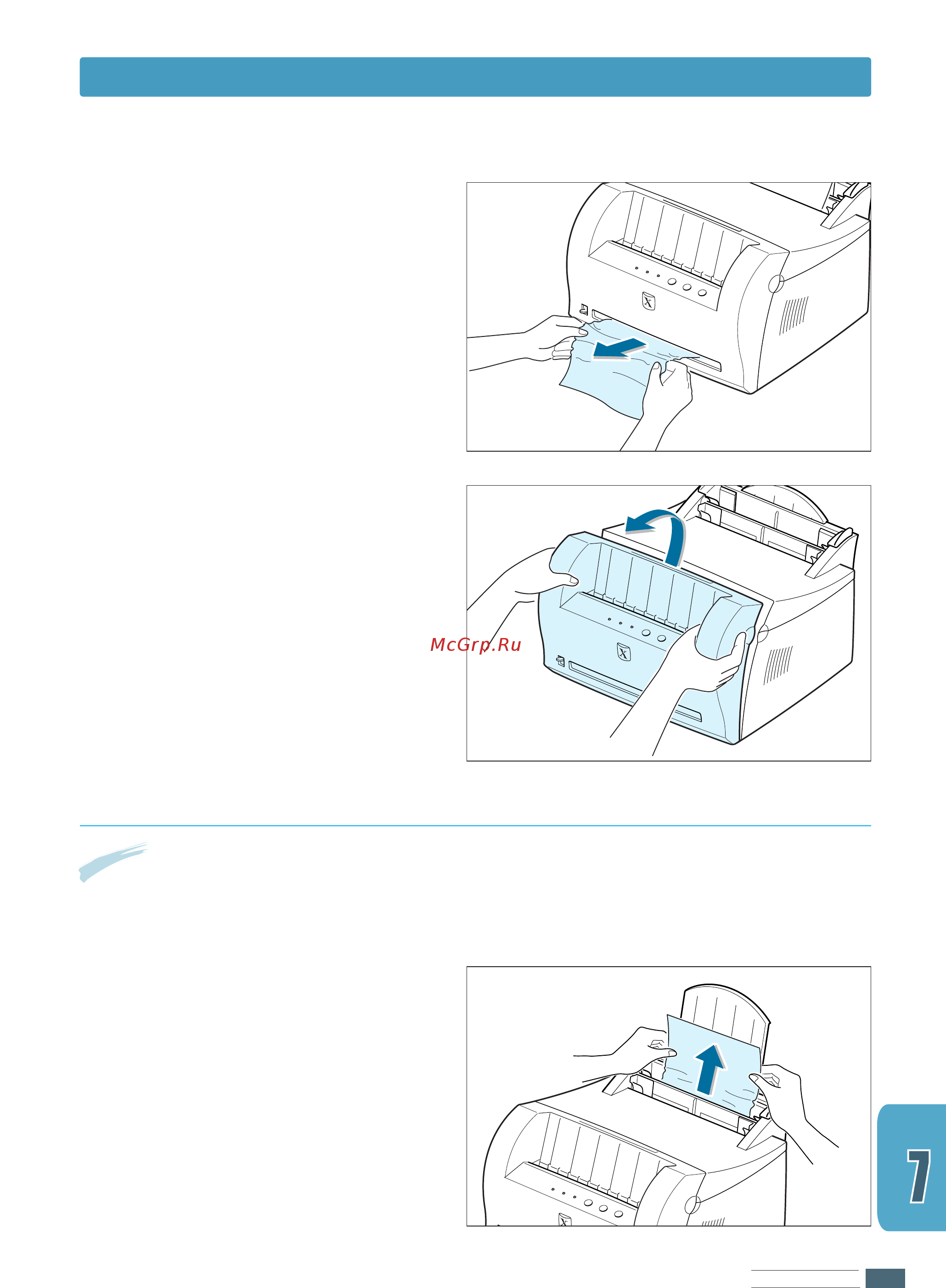

Input Area
11
Carefully pull the jammed paper out of
the input tray.
22
Open and close the front cover. Printing
can be resumed.
If paper is jammed in the face-up output
slot, carefully remove the paper as shown.
Clearing Paper Jams
