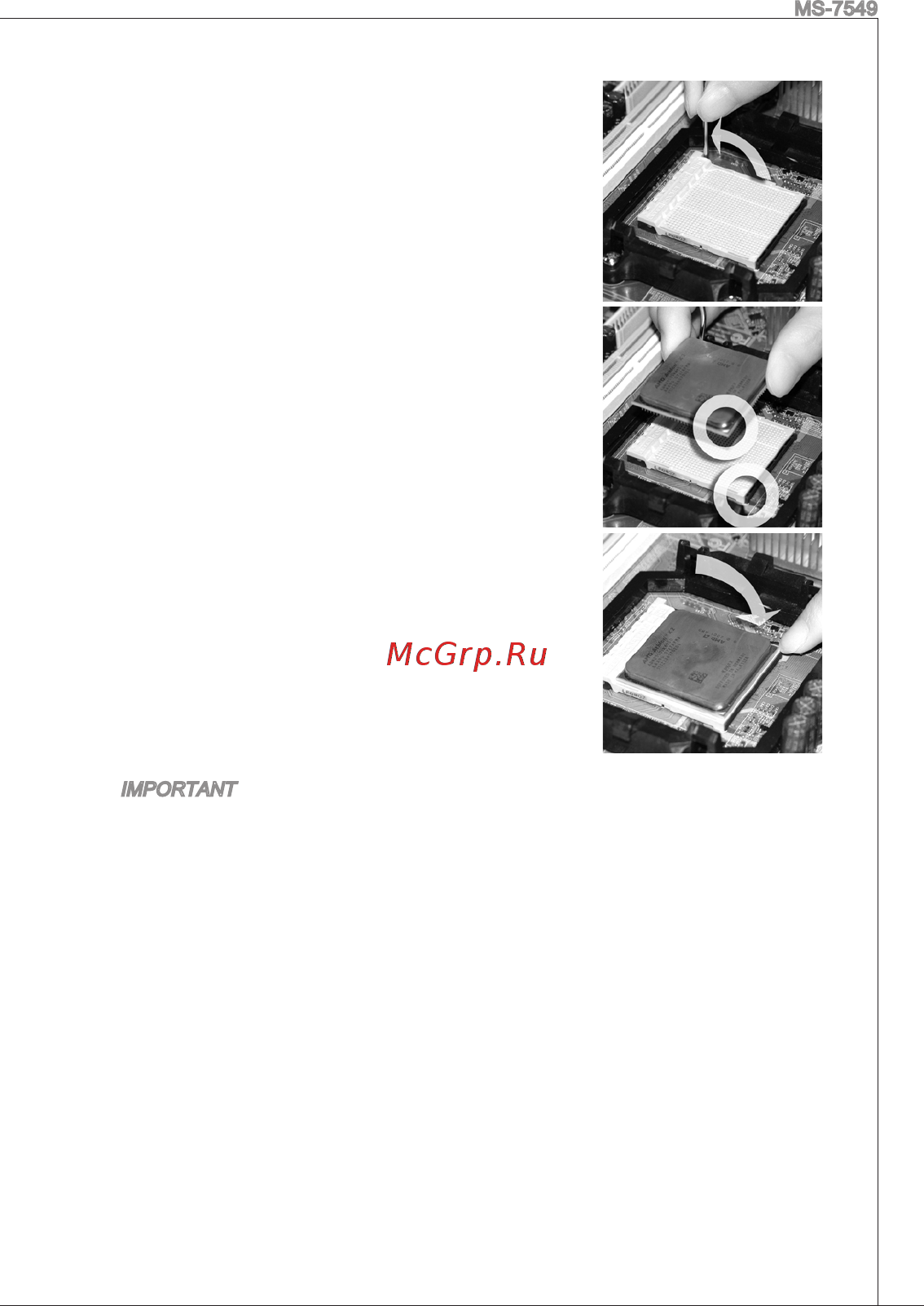

MS 7549 1 Pull the lever sideways away from the socket Make sure to raise the lever up to a 90 degree angle 2 Look for the gold arrow of the CPU The gold arrow should point as shown in the picture The CPU can only fit in the correct oriertation 3 If the CPU is correctly installed the ains should be completely embedded into the socket and can not be seen Please note that any viola ion of the cor rect installation procedures may cause permanent damages to your mainboard 4 Press the CPU down firmly into the socket and close the lever As the CPU is likely to move while the lever is being closed always close the lever with your fingers pressing tightly on top of the CPU to make sure the CPU is properly and com pletely embedded into the socket 5 Position the cooling set onto the retention mecha nism Hook one end of the clip to hook first 6 Then press down the other end of the clip to fasten the cooling set on the top of the retention mechanism Locate the Fix Lever and lift up it 7 Fasten down the lever 8 Attach the CPU Fan cable to the CPU fan connec tor on the mainboard IMPORTANT Mainboard photos shown in this secton are for demonstration of the cooler in stallation for Socket AM2 AM3 CPU only The appearance of your mainboard may vary depending on the model you purchase While disconnecting the hook from the fixed bolt it is necessary to keep an eye on your fingers because once the hook is disconnected from the fixed bolt the fixed lever will spring back instantly 13
