1-2 Chapter 1: System introduction
1.1 Welcome!
Thank you for choosing the ASUS V-Series P5945GC!
The ASUS V-Series P5945GC is an all-in-one barebone system with a
versatile home entertainment feature.
The system comes in a stylish casing and powered by the ASUS
motherboard that supports the Intel
®
Core™2 Extreme / Core™2 Duo /
Pentium
®
D / Pentium
®
4 / Celeron
®
D processors in the 775-land package.
The system supports up to 2 GB of system memory using
DDR2-667/533/400 DIMMs. High-resolution graphics via integrated
graphics controller or PCI Express x16 slot, Serial ATA, USB 2.0, and
6-channel audio feature the system and take you ahead in the world of
power computing.

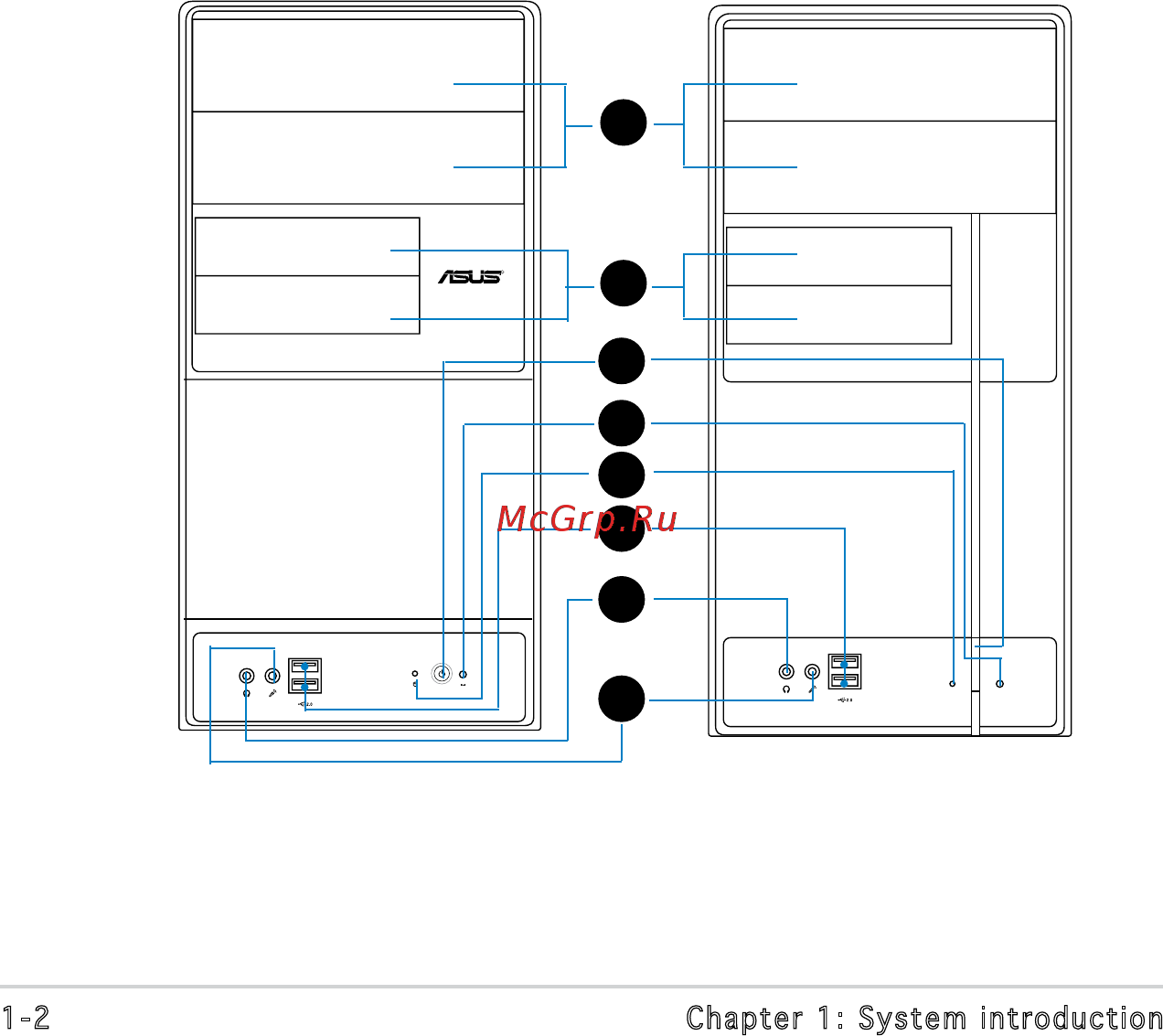

1.2 Front panel
The front panel includes the optical drive bays, oppy disk drive slot, power
button, and several I/O ports are located at the front panel.
R
3
7
8
6
5
4
1
2
