KH2508A / KH2516A User Manual

To recover from missing or corrupt firmware, see Firmware Upgrade

Recovery, page 59.

Upgrade Succeeded

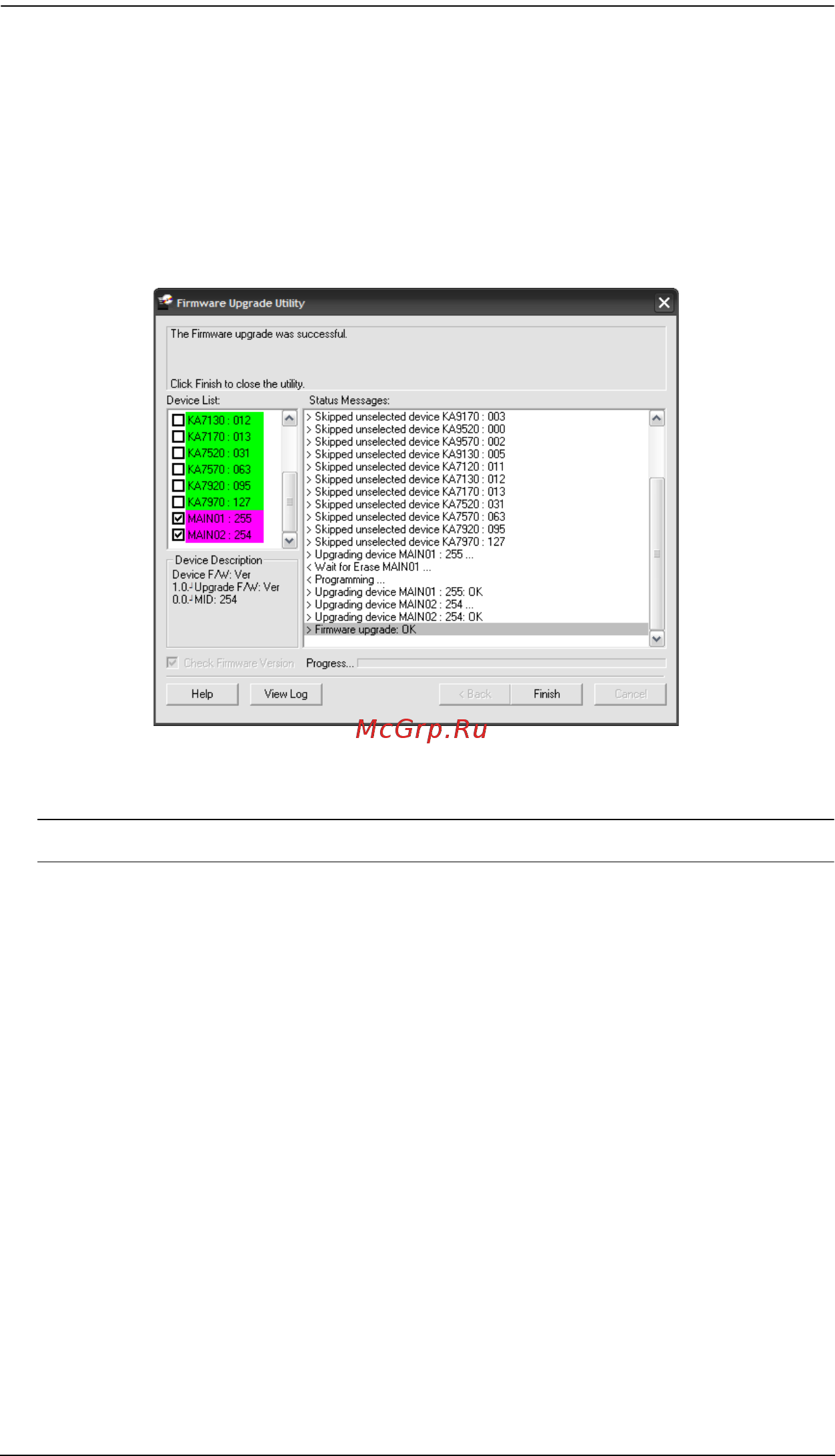

After the upgrade has completed, a screen appears to inform you that the

procedure was successful

Click Finish to close the Firmware Upgrade Utility

Note: At the completion of the upgrade, the KH2508A / KH2516A restarts
