Chapter 7. The Firmware Upgrade Utility
61
OSD Configuration Backup/Restore
The Firmware Management Utility lets you backup the current OSD
configuration of the KH2508
A / KH2516A, and restore it when necessary.
Storing the OSD configuration settings is useful when deploying more than one
installation that uses the same settings.
Backup
Follow these steps to store a backup file to a local computer:
1. Make sure your computer is connected to the KH2508
A / KH2516A.
See Before You Begin, page 53, and follow steps 1–3.
2. When you have selected the F4 ADM function, scroll down to OSD
CONFIG BACKUP / RESTORE. Press [Enter], then press [Y] to invoke
OSD Config Backup / Restore mode.
3. Run the Firmware Management Utility. In the dialog box, choose OSD
Configuration Backup/Restore, then click Next.

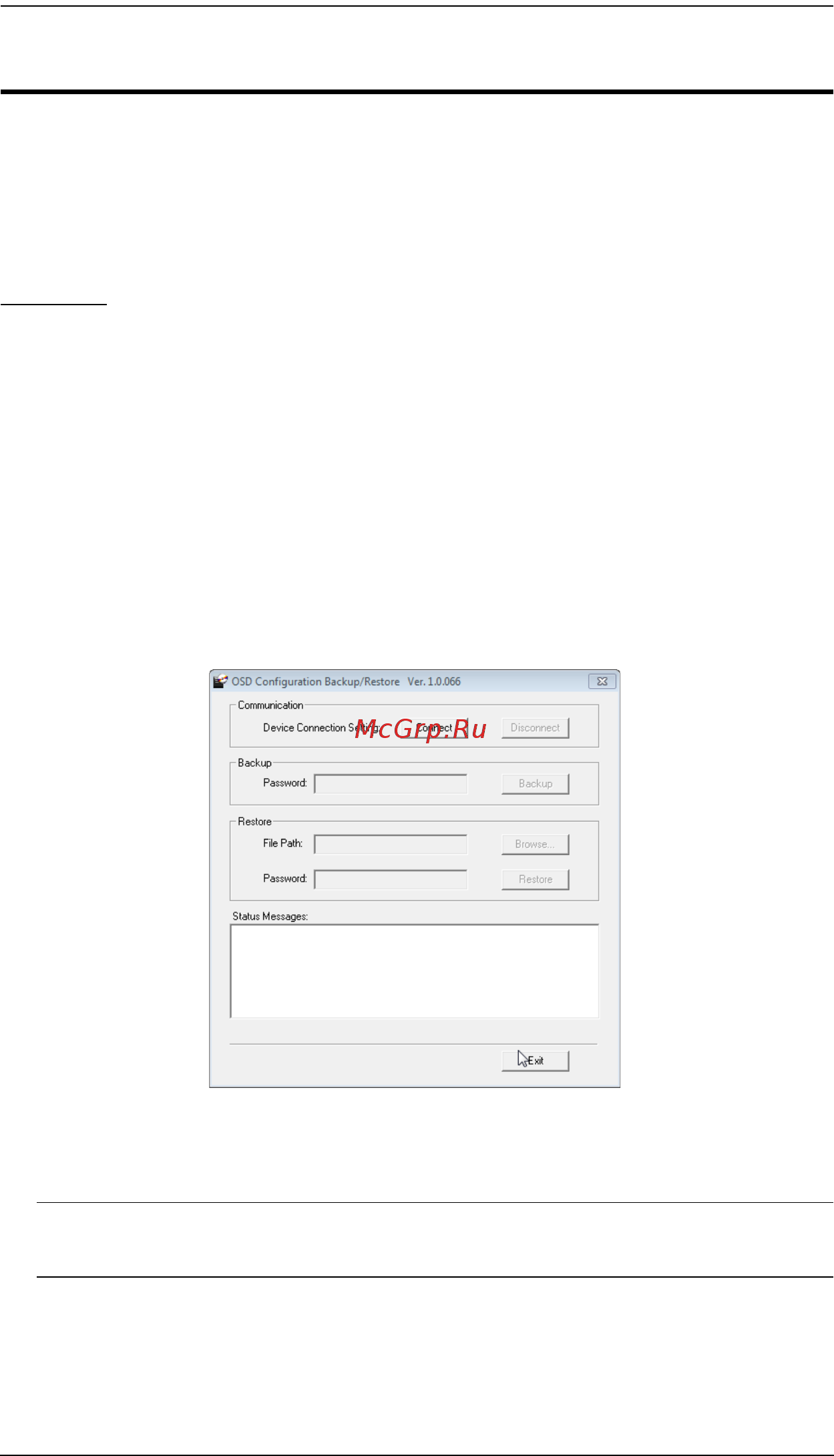

4. In the window that appears, click Connect Device.
5. In the Password field, key in a password for the file.
Note: Setting a password is optional. If you do not set one, the file can be
restored without specifying a password.
6. Click Backup.
7. When the browser asks what you want to do with the file, select Save to
disk, then save it in a convenient location.
