91
Chapter 8
Device Management
Devices

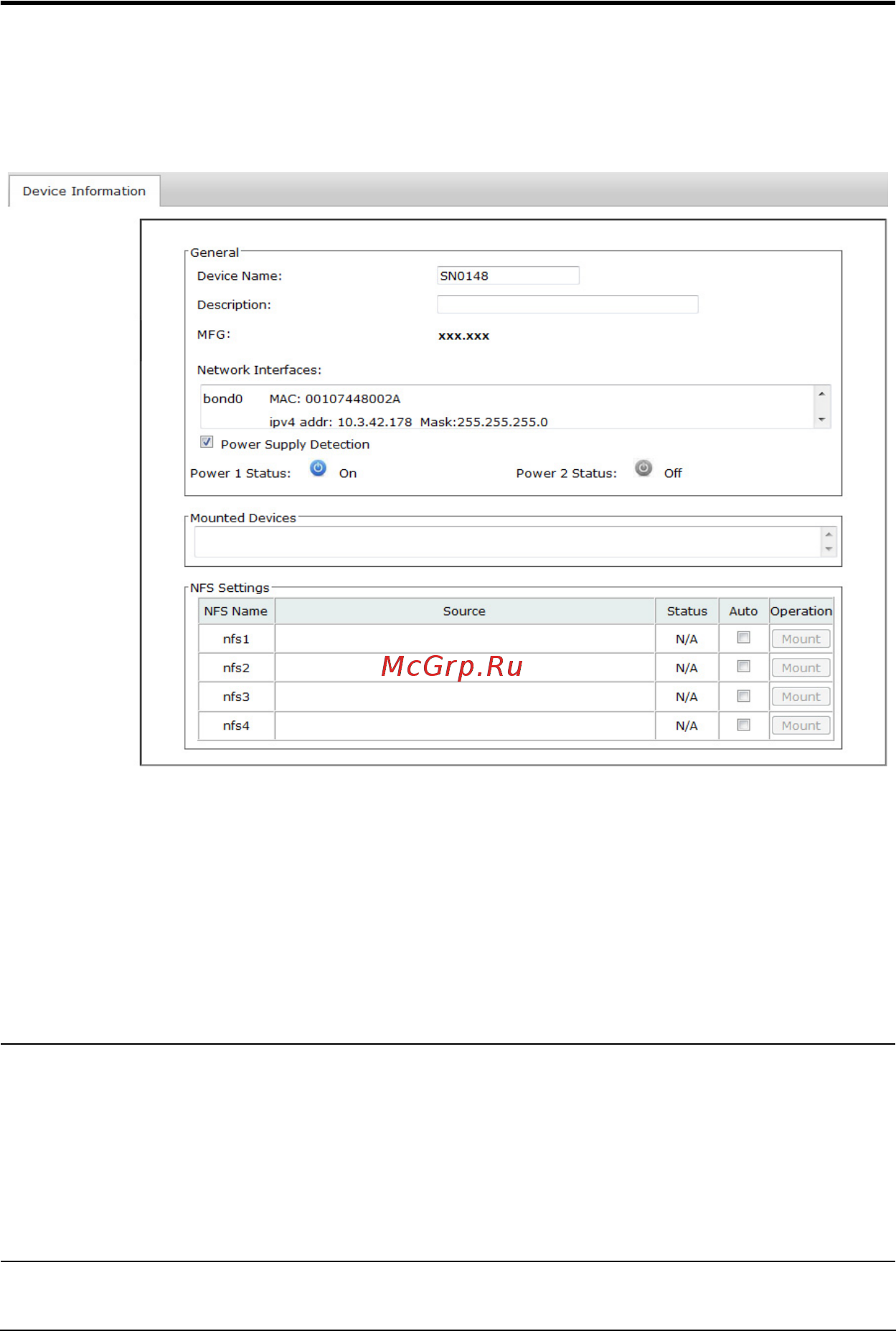

The Device Management page opens with the top level Serial Console Server
selected in the Sidebar, with all its ports nested below, and the Device
Information page displaying in the main panel:
General
The General section of the Device Information page displays and allows you
to set the Device Name and Description and view the Manufacturing (MFG)
information of the Serial Console Server. The Network Interfaces section
provides detailed information about it’s network configurations.
Note: The “MFG Number” (Manufacturing Number) is an internal serial
number used by ATEN’s factory and technical support staff to identify
products. This number does not affect products’ warranty. If your
product requires after-sales services, you may provide the MFG
Number to ATEN’s sales or technical support staff to identify the
product and model number.
