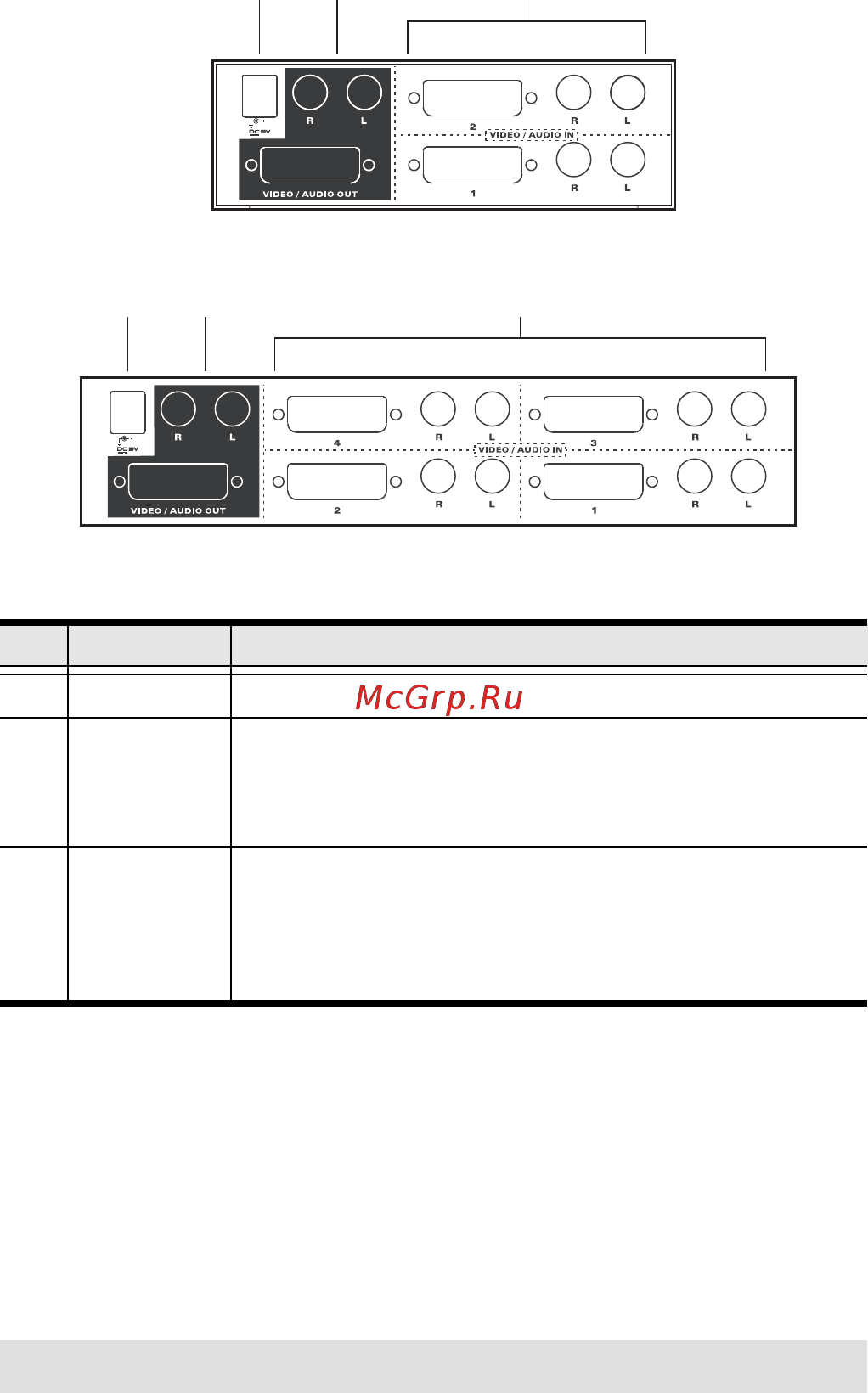

Rear View

No. Component Description

1 Power Jack The power adapter cable plugs in here.

2 Video/Audio

Output

The output section is comprised of a DVI-I connector and

two RCA audio jacks. The cables that connect to the video

and audio input ports on the Video Display plug in here.

L=left audio, R=right audio.

3 Video/Audio

Input

Each input section is comprised of a DVI-I connector and

two RCA audio jacks. The cables that connect to the video

and audio output ports on the source devices plug in here.

Be sure that the cables from an individual source device all

plug into the same input section (e.g. all in Port 1, etc.).

1 2 3
