B150M-P73 USER MANUAL

Chapter 4

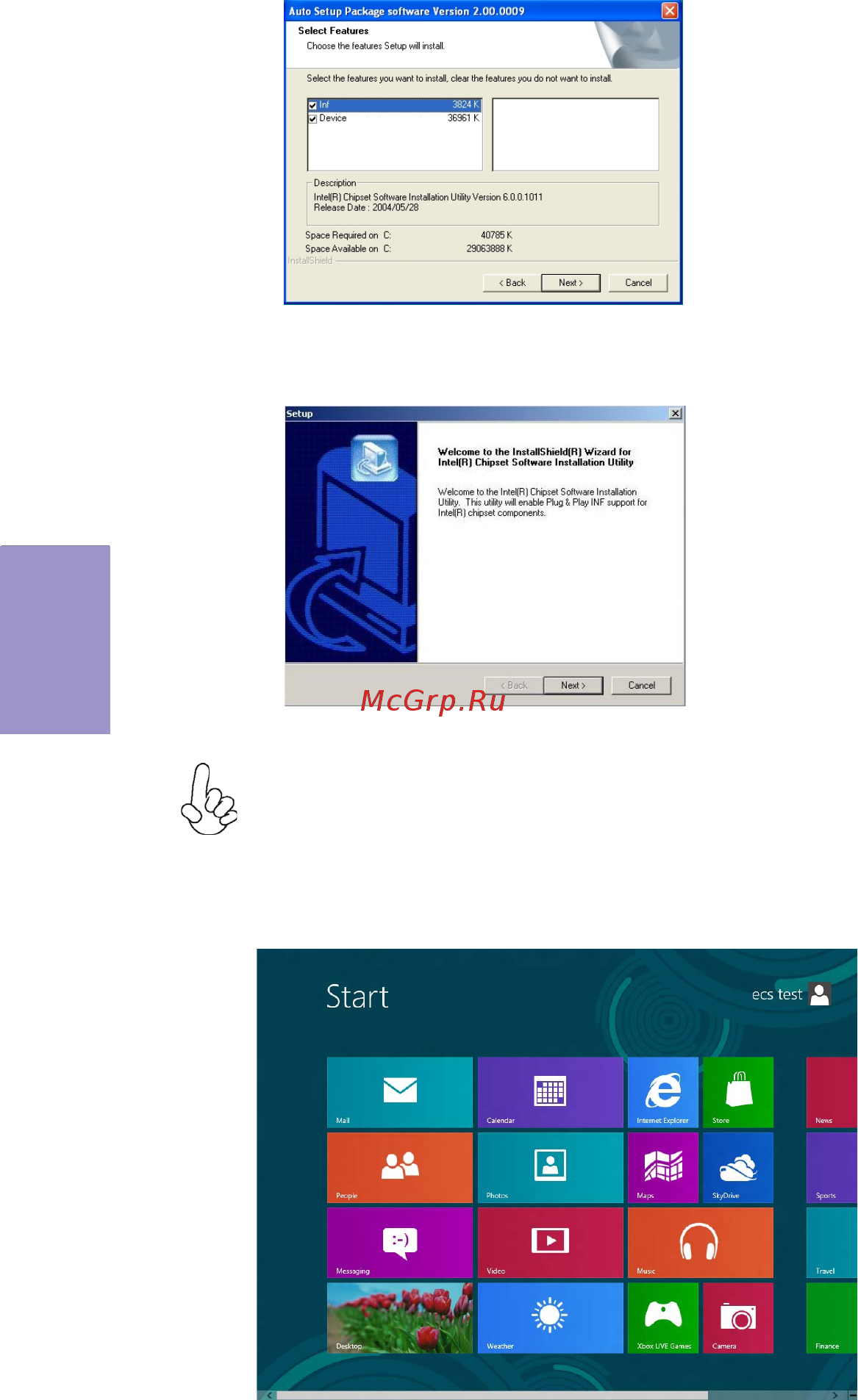

2. Click Next. The following screen appears:

3. Check the box next to the items you want to install. The default options are recommended.

5. Follow the instructions on the screen to install the items.

4. Click Next to run the Installation Wizard. An item installation screen appears:

Drivers and software are automatically installed in sequence. Follow the

onscreen instructions, confirm commands and allow the computer to

restart a few times to complete the installation.

Windows 8 will show the following screen after system restart, you

must select “Desktop” in the bottom left to install the next driver.
