Chapter 2

Z87H3-A3X USER MANUAL

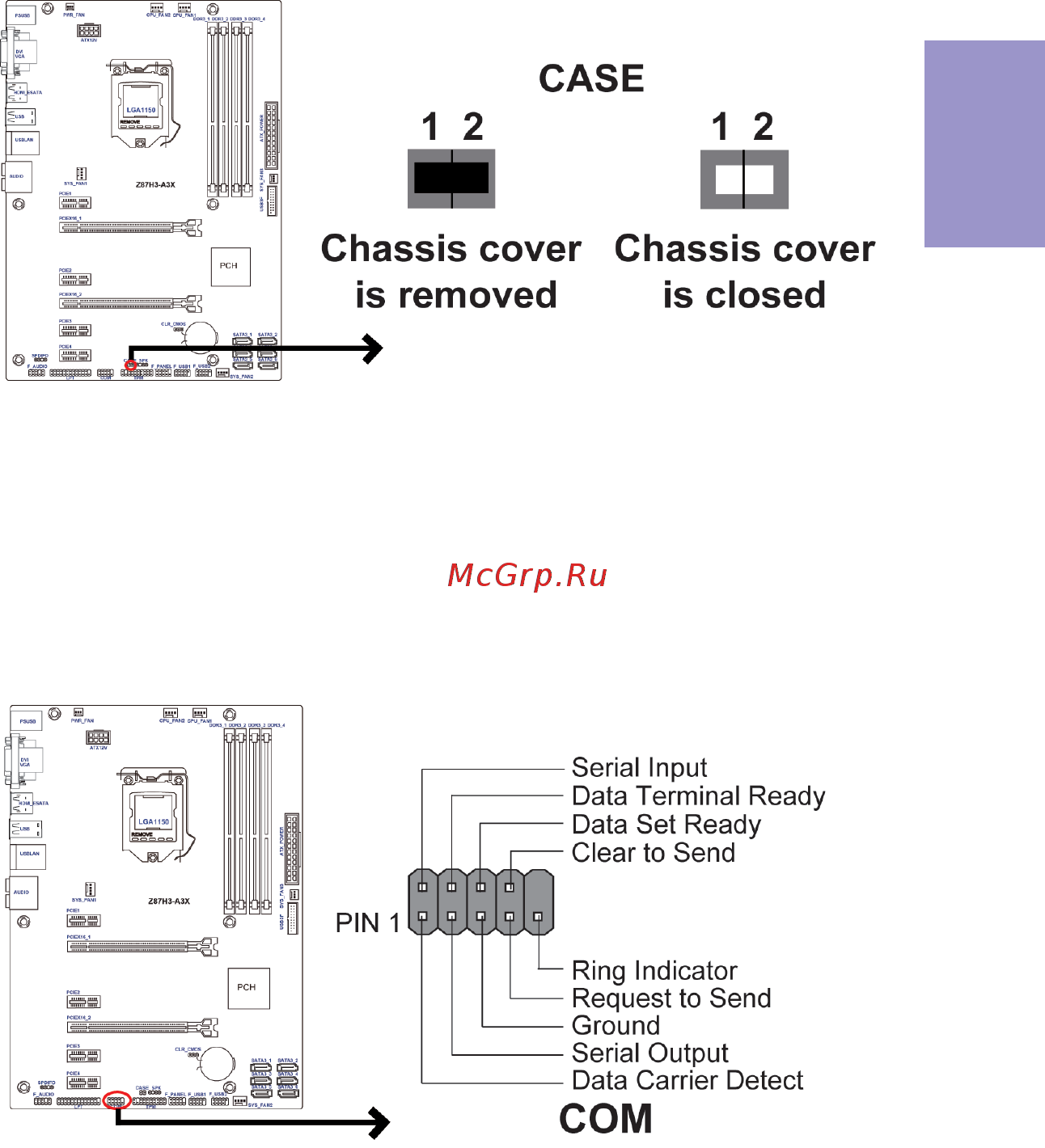

5. CASE: Chassis Intrusion Detect Header

This detects if the chassis cover has been removed. This function needs a chassis

equipped with instrusion detection switch and needs to be enabled in BIOS.

6. COM: Onboard serial port header

Connect a serial port extension bracket to this header to add a serial port to your

system.
