Chapter 2

Z87H3-A3X USER MANUAL

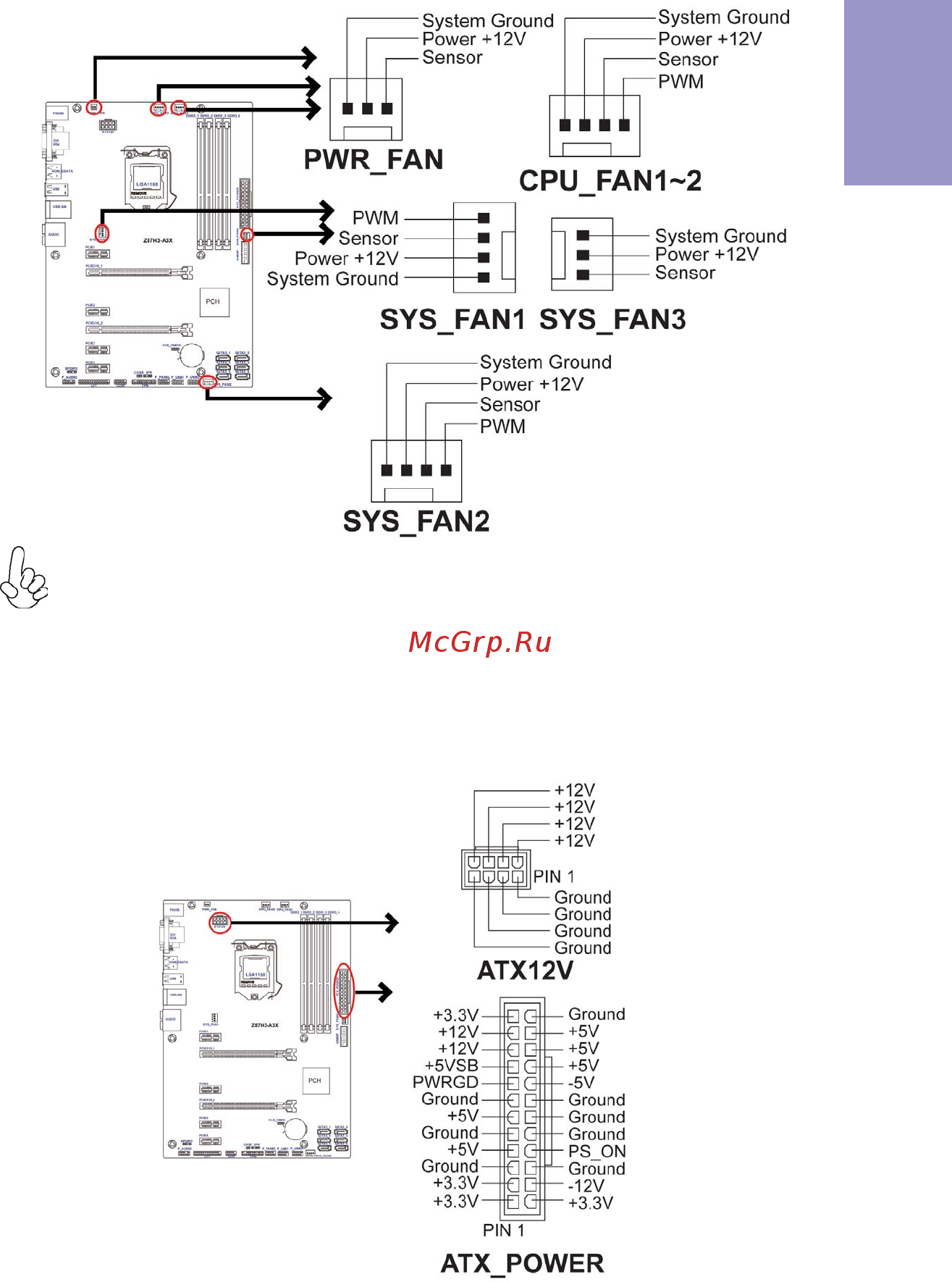

1 & 2. CPU_FAN1~2(CPU cooling FAN Power Connectors) & 9. PWR_FAN

(Power Cooling FAN Power Connector) 4 & 5 & 8. SYS_FAN1~3 (System Cooling

FAN Power Connectors)

Connect the CPU cooling fan cable to CPU_FAN.

Users please note that the fan connector supports the CPU cooling fan of 1.1A

~ 2.2A (26.4W max) at +12V.

Connect the system cooling fan connector to SYS_FAN.

Connect the power cooling fan connector to PWR_FAN.

3. ATX_POWER (ATX 24-pin Power Connector) & 10. ATX12V (8 pin ATX 12V

Power Connector)

Connect the standard power supply connector to ATX_POWER.

Connect the auxiliary case power supply connector to ATX12V.
