ECS Elitegroup Z87H3-A3X [26/96] Z87h3 a3x user manual

Chapter 2

Z87H3-A3X USER MANUAL

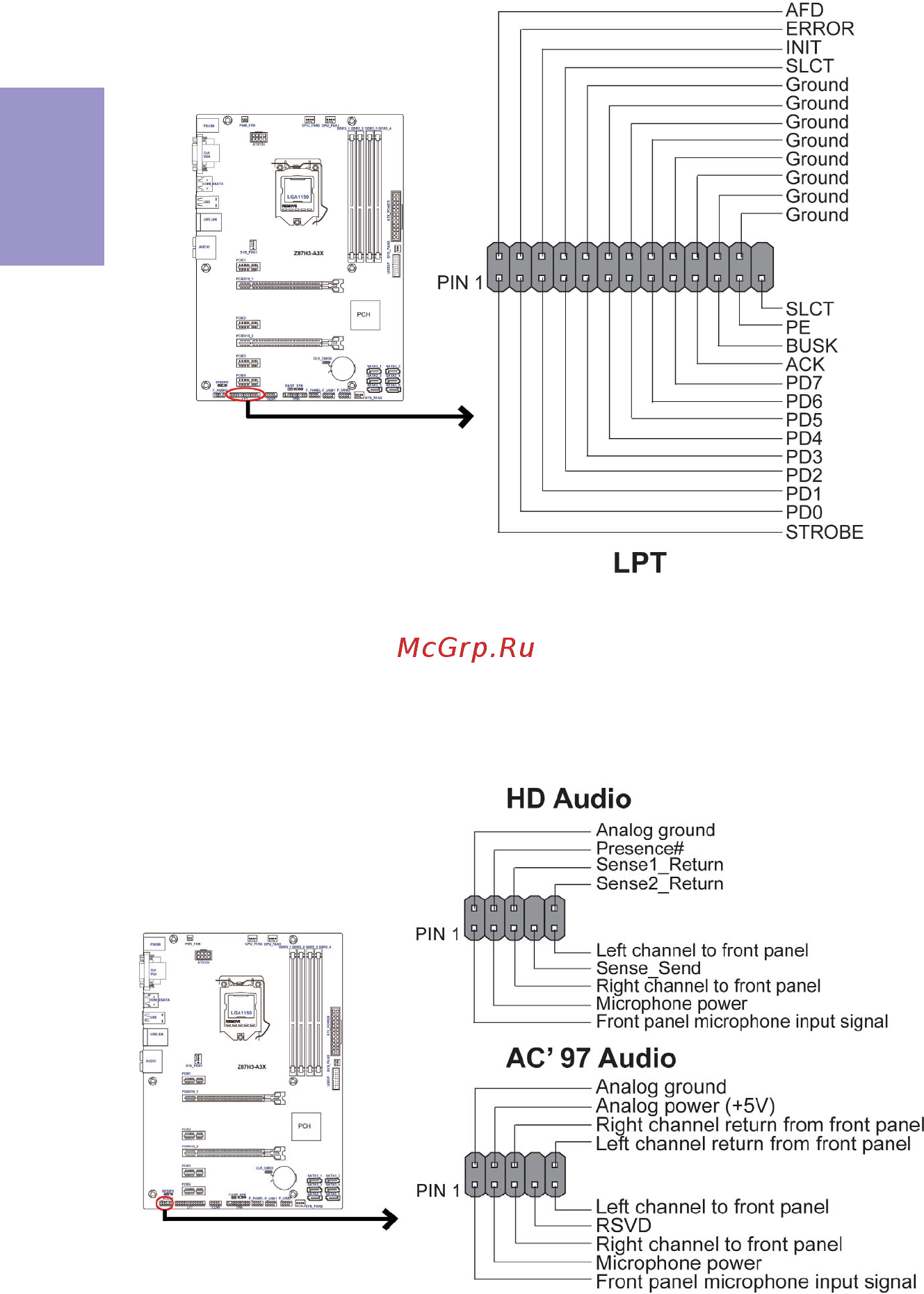

This is a header that can be used to connect to the printer, scanner or other devices.

7. LPT: Onboard parallel port header

The front panel audio header allows the user to install auxiliary front-oriented mi-

crophone and line-out ports for easier access. This header supports HD audio by

default. If you want connect an AC’ 97 front panel audio to HD onboard headers,

please set as below picture.

8. F_AUDIO: Front Panel Audio Header
