Chapter 3
Z87H3-A3X USER MANUAL
38
ACPI Settings
The item in the menu shows the highest ACPI sleep state when the system enters
suspend.
ACPI Sleep State [S3(Suspend to RAM)]
This item allows user to enter the ACPI S3 (Suspend to RAM) Sleep State (default).
Press <Esc> to return to the Advanced Menu page.

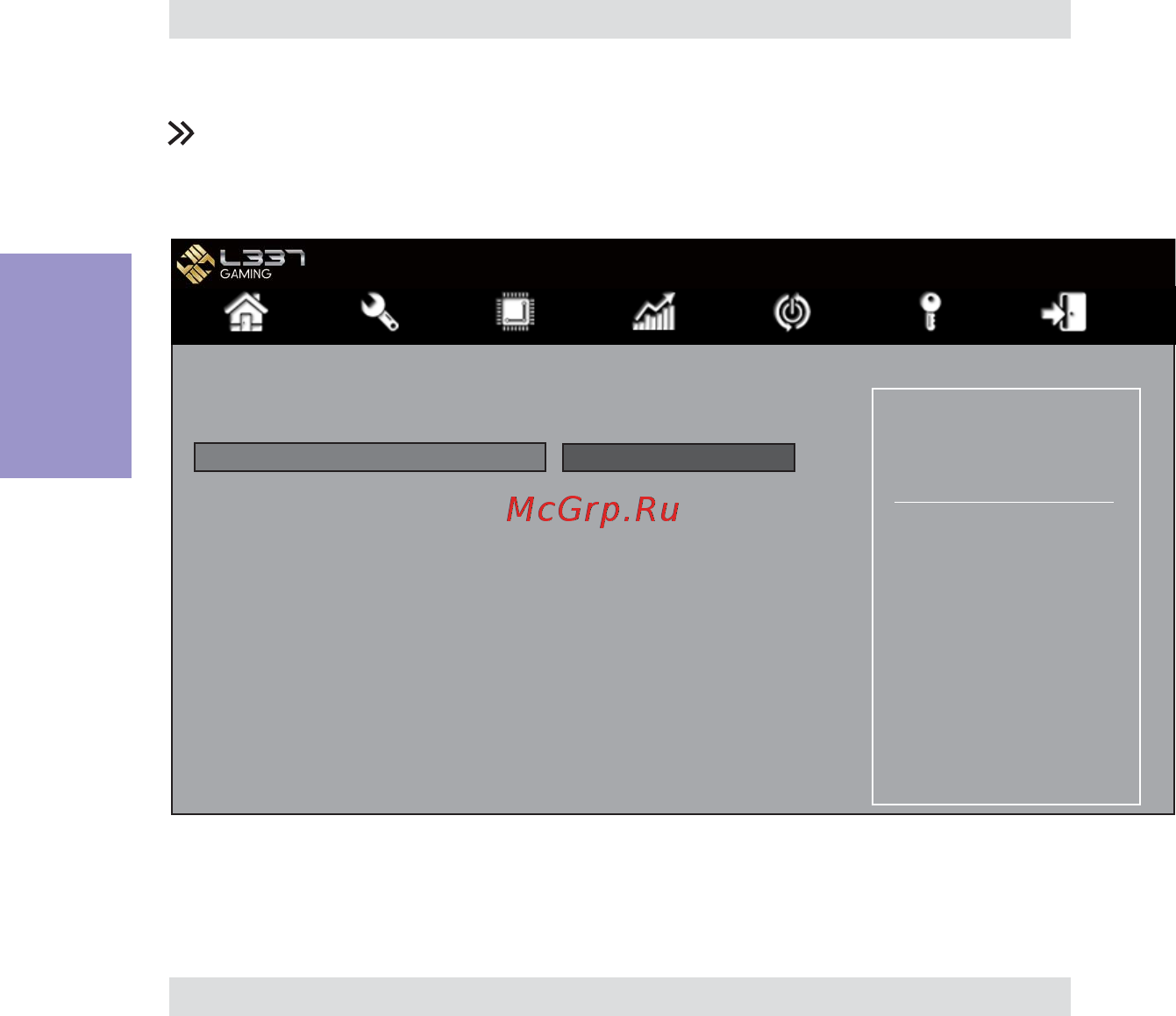

Main Advanced Chipset M.I.B. X Boot Security Exit
Select ACPI sleep state the
system will enter when the
SUSPEND button is pressed.
ACPI Settings
ACPI Sleep State S3 (Suspend to RAM)
EUP Function (Enabled)
This item allows user to enable or disable EUP support.
Power LED Type (Dual Color LED)
This item shows the type of the Power LED.
Press <Esc> to return to the Advanced Menu page.
+/- : Change Opt.
Enter/Dbl Click : Select
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
F9: Capture Screen
