ECS Elitegroup A55F-M4 (V2.0) [24/76] A55f m4 user manual

Chapter 2

A55F-M4 USER MANUAL

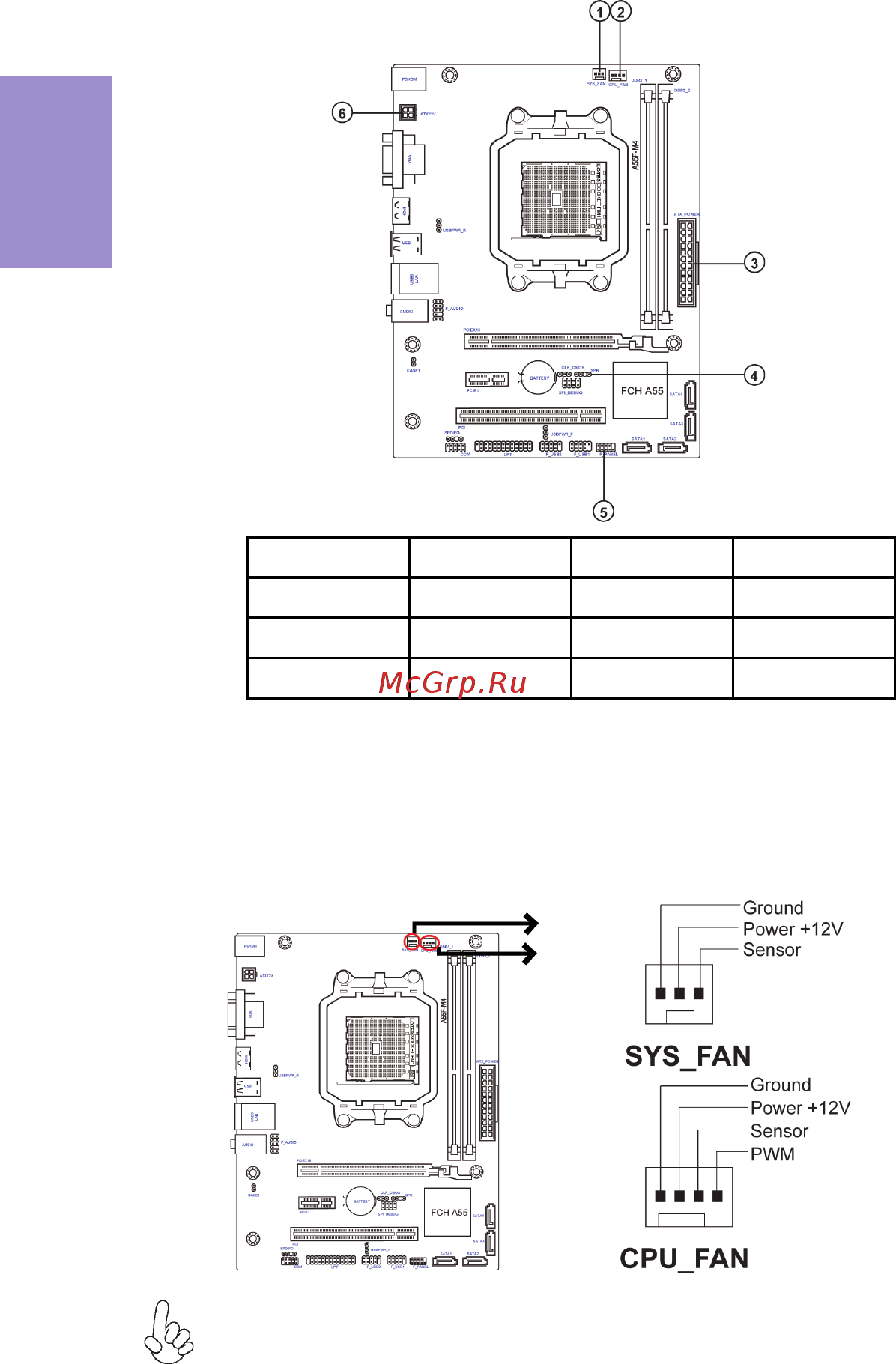

1 & 2. SYS_FAN(System Cooling FAN Power Connector) & CPU_FAN(CPU cooling

FAN Power Connector)

After you have installed the motherboard into a case, you can begin connecting the

motherboard components. Refer to the following:

Connect the CPU cooling fan cable to CPU_FAN.

Connect the system cooling fan connector to SYS_FAN.

Users please note that the fan connector supports the CPU cooling fan of 1.1A

~ 2.2A (26.4W max) at +12V.

2-4-7. Connecting Case Components

No. Components No. Components

1 SYS_FAN 4 SPK

2 CPU_FAN 5 F_PANEL

3 ATX_POWER 6 ATX_12V
