28 29
English
Z170A-X1

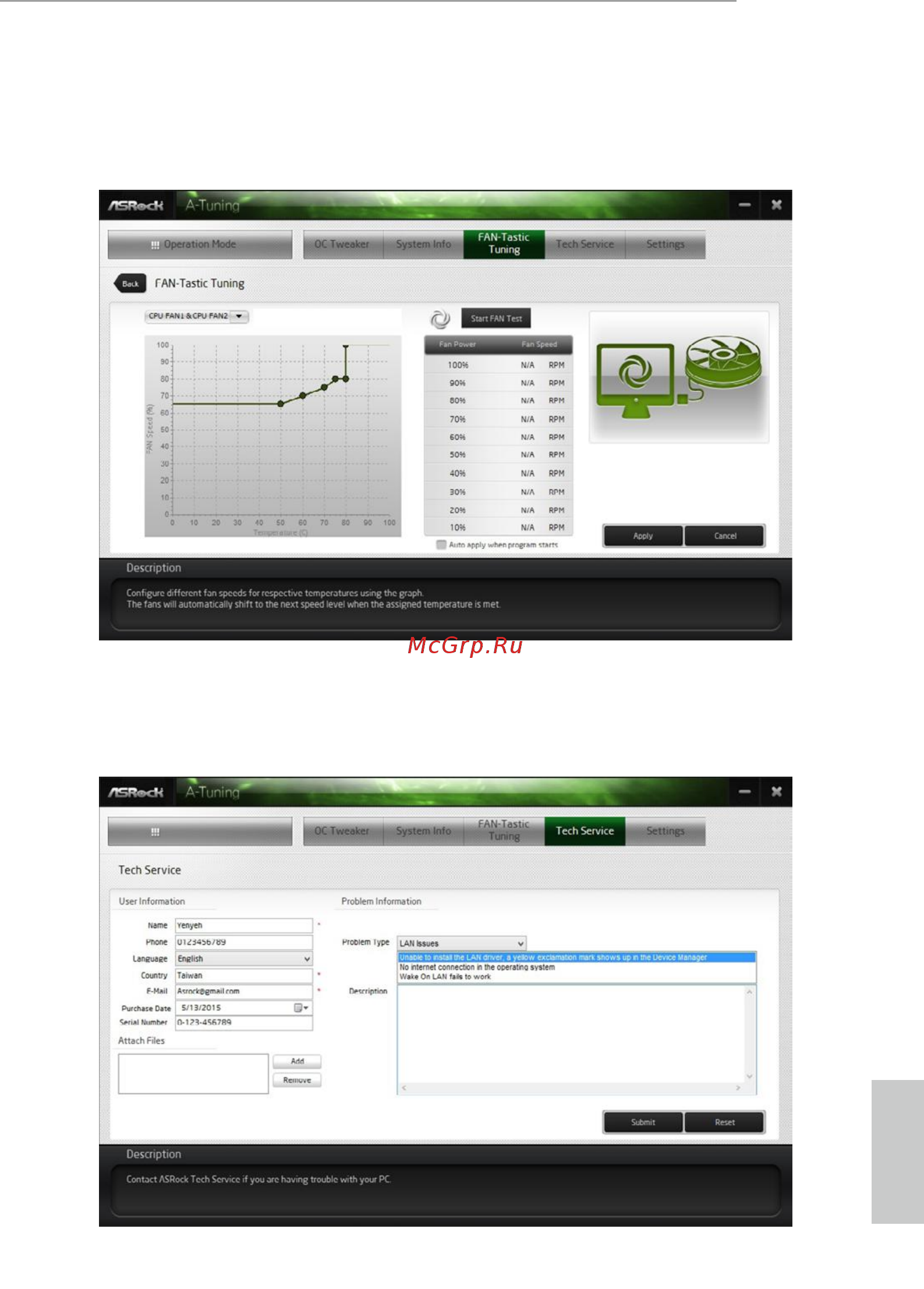

FAN-Tastic Tuning
Congure up to ve dierent fan speeds using the graph. e fans will automatically shi
to the next speed level when the assigned temperature is met.
Tech Service
Contact Tech Service if you have problems with your computer. Please leave your
contact information along with details of the problem.
