ASRock z170a-x1 [62/79] Chipset configuration
![ASRock z170a-x1 [62/79] Chipset configuration](/views2/1213327/page62/bg3e.png)
58 59
English

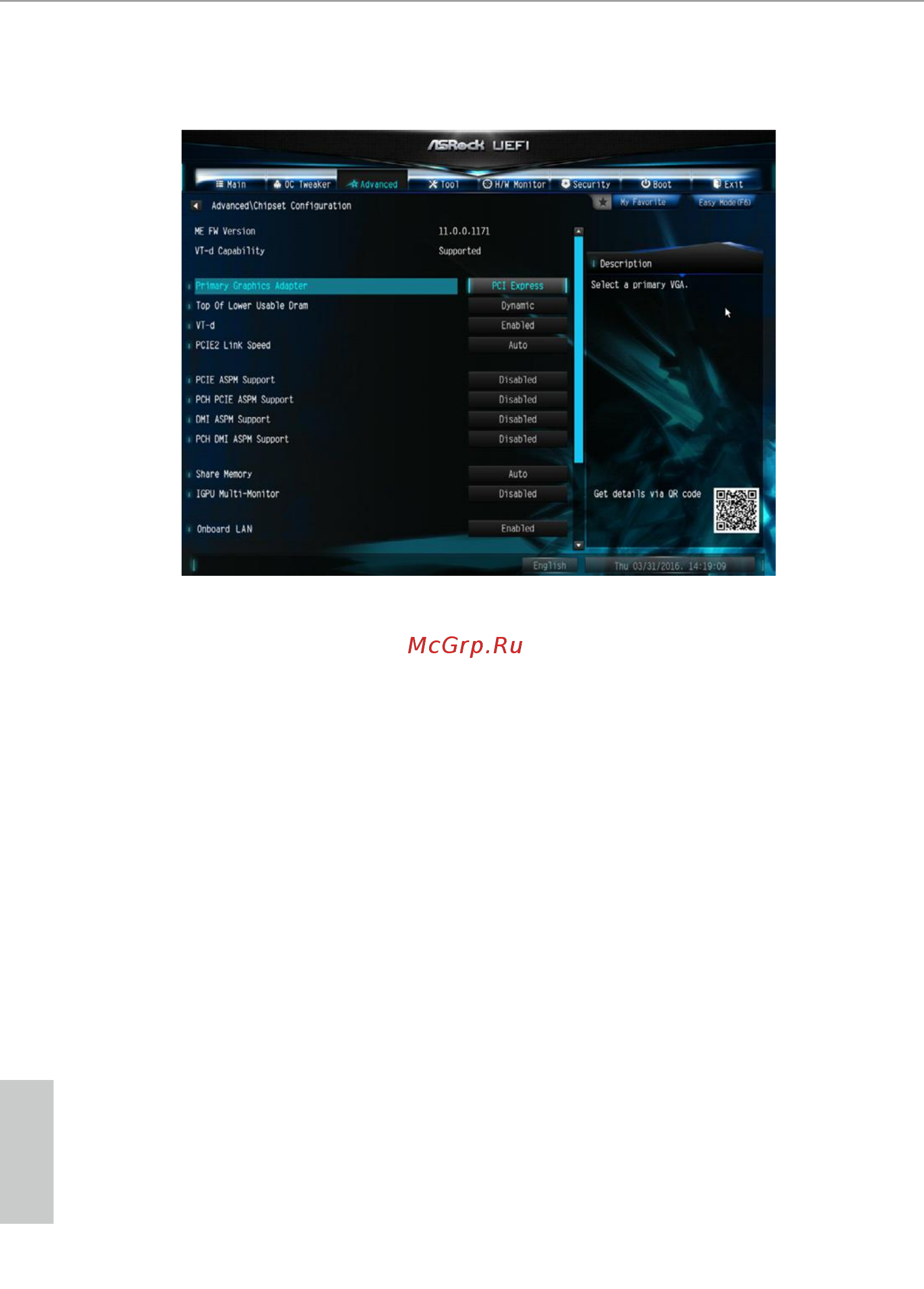

4.6.2 Chipset Conguration
Primary Graphics Adapter
Select a primary VGA.
Top of Lower usable DRAM
Set the maximum value of TOLUD. Set this item to Dynamic to allow TOLUD to
adjust automatically based on the largest MMIO length of the installed graphic
controller.
VT-d
Intel® Virtualization Technology for Directed I/O helps your virtual machine
monitor better utilize hardware by improving application compatibility and
reliability, and providing additional levels of manageability, security, isolation, and
I/O performance.
PCIE2 Link Speed
Select the link speed for PCIE2.
PCIE ASPM Support
is option enables/disables the ASPM support for all CPU downstream devices.
PCH PCIE ASPM Support
is option enables/disables the ASPM support for all PCH PCIE devices.
