ASRock z170a-x1 [40/79] Setting
![ASRock z170a-x1 [40/79] Setting](/views2/1213327/page40/bg28.png)
36 37
English

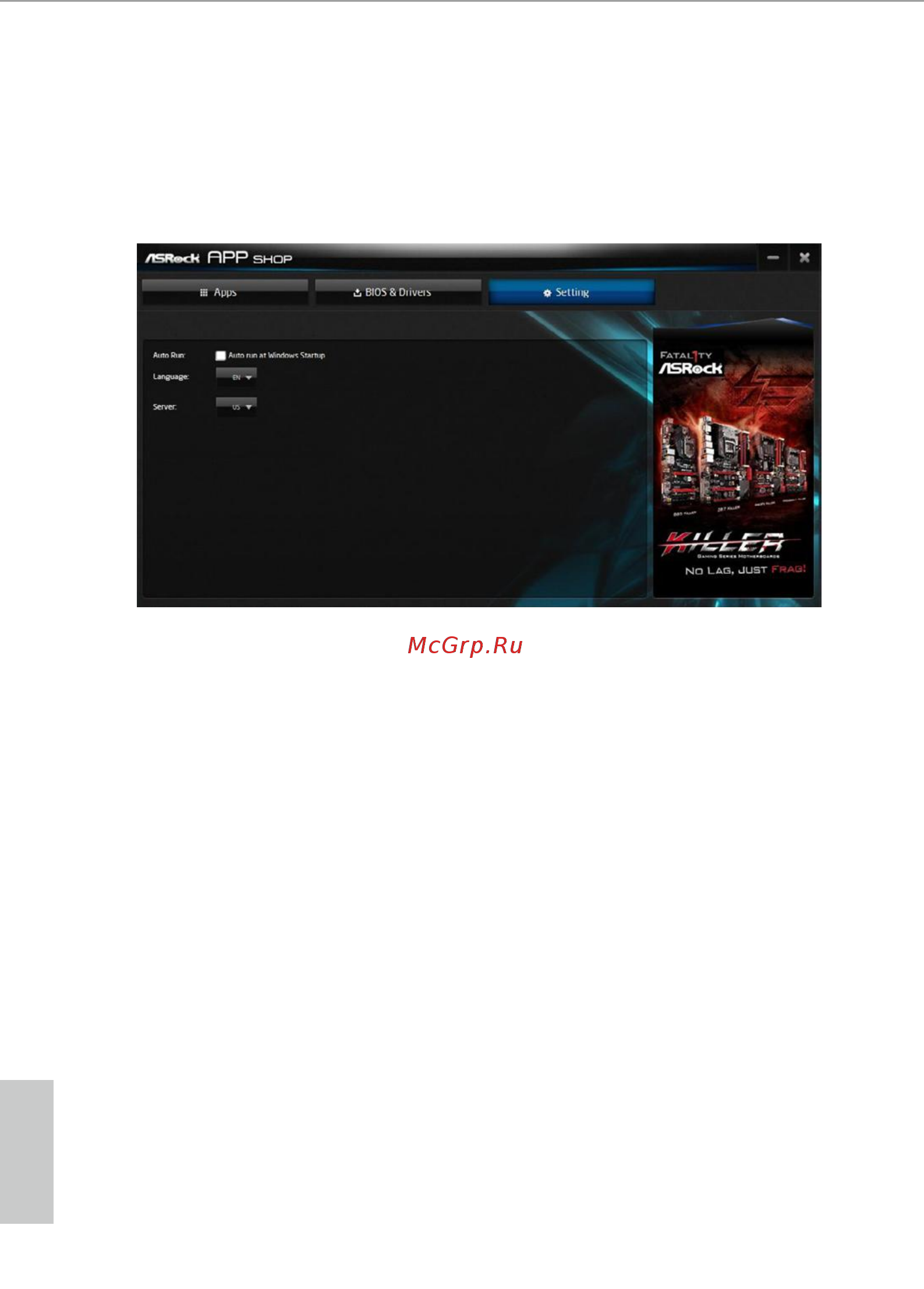

3.3.4 Setting
In the "Setting" page, you can change the language, select the server location, and
determine if you want to automatically run the ASRock Live Update & APP Shop
on Windows startup.
