ASRock z170a-x1 [34/79] English
![ASRock z170a-x1 [34/79] English](/views2/1213327/page34/bg22.png)
30 PB
English

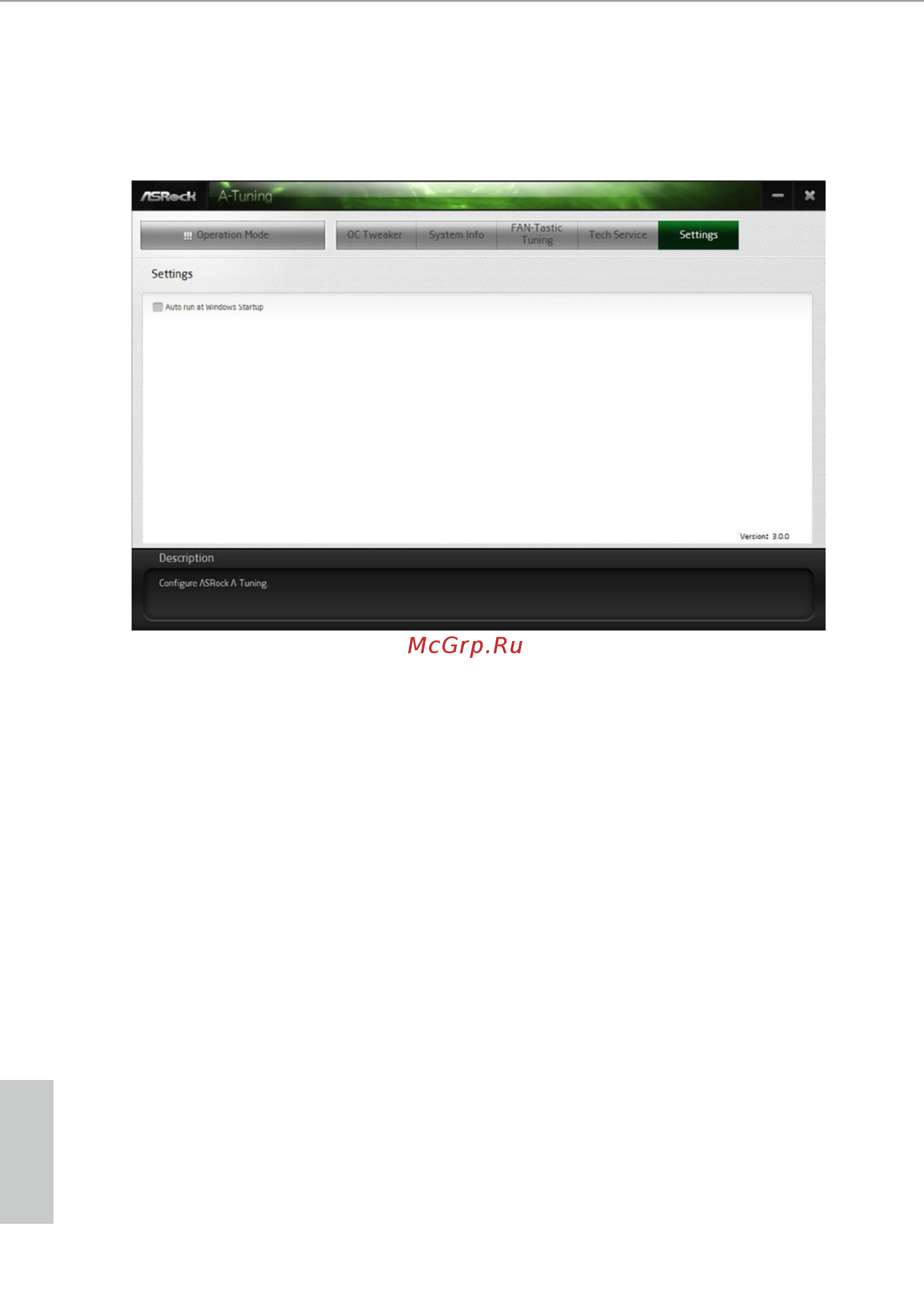

Settings
Congure ASRock A-Tuning. Click to select "Auto run at Windows Startup" if you
want A-Tuning to be launched when you start up the Windows operating system.
