ASRock deskmini 110 [15/70] English

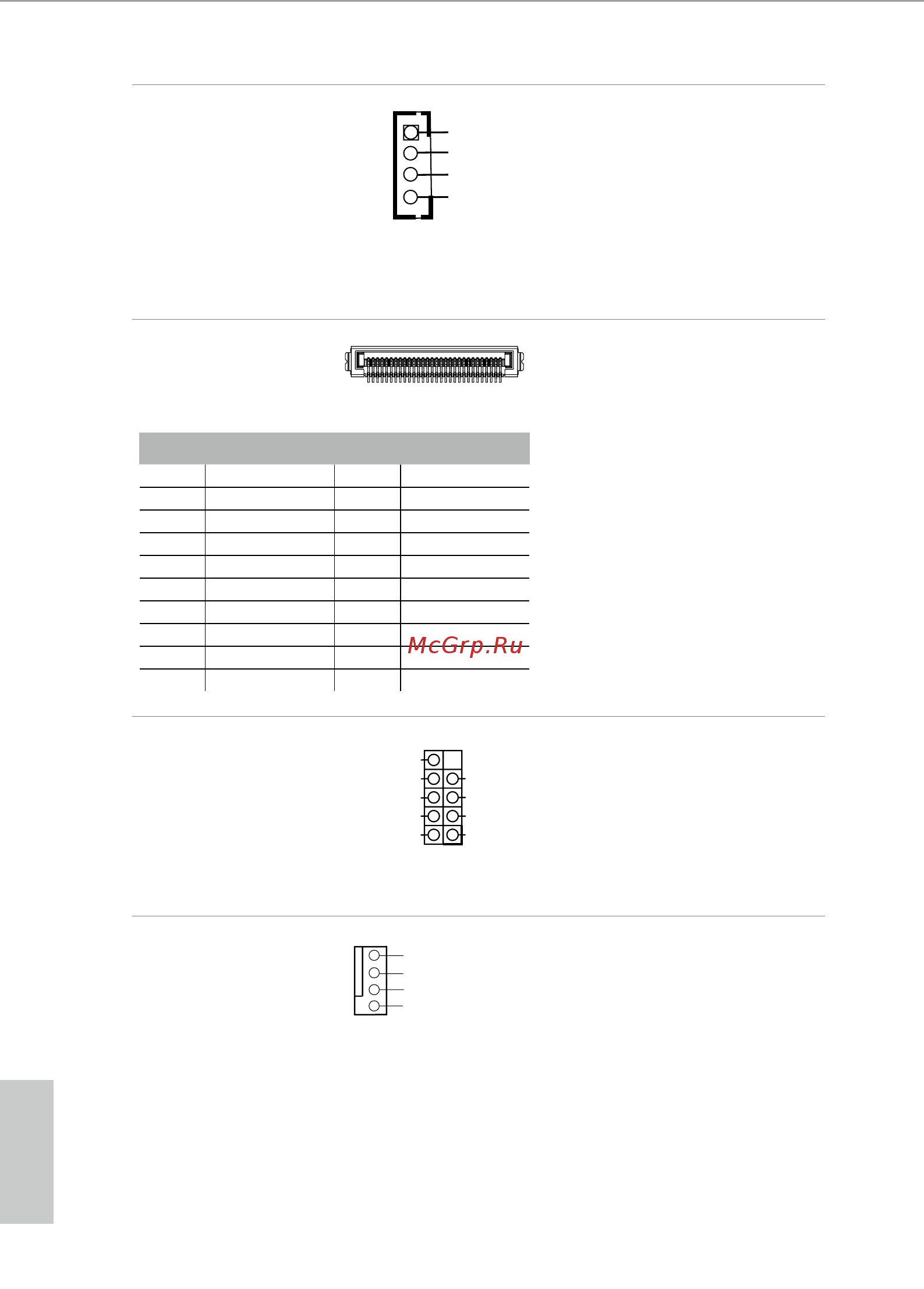

![ASRock deskmini 110 [15/70] English](/views2/1213329/page15/bgf.png)
10 11
English
Internal Speaker Header
(4-pin SPEAKER1)
(see p.6, No. 6)
Please connect the chassis
speaker to this header.
Serial ATA3 Connectors
(see p.7, No. 10 and 11)
ese two SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
*e SATA3 connectors
support 2.5-inch hard
drive (+5V) and do not
support 3.5-inch hard
drive (+12V)
USB 2.0 Header
(9-pin USB_5_6)
(see p.6, No. 5)
ere is one header on
this motherboard. is
USB 2.0 header can
support two ports.
CPU Fan Connector
(4-pin CPU_FAN1)
(see p.6, No. 3)
is motherboard
provides a 4-Pin CPU fan
(Quiet Fan) connector.
If you plan to connect a
3-Pin CPU fan, please
connect it to Pin 1-3.
DUMMY
GNDGND
P+
P-
P+
P-
USB_PWR
U SB_PWR
1
Front_L+
Front_R-
Front_R+
Front_L-
1
1
20
PIN Signal Name PIN Signal Name
1 GND 11 N/A
2 LVDS _TX+ 12 5V
3 LVDS _TX- 13 5V
4 GND 14 5V
5 GND 15 5V
6 LVDS _ R X- 16 5V
7 LVDS _ R X+ 17 N/A
8 GND 18 GND
9 GND 19 GND
10 GND 20 GND
GN D
+ 12V
CPU_FAN_SPEED
FAN_SPEED_CONTROL
1
2
3
4
