ASRock deskmini 110 [24/70] Installing the 2 inch hdd ssd
![ASRock deskmini 110 [24/70] Installing the 2 inch hdd ssd](/views2/1213329/page24/bg18.png)
18 19
English
DeskMini series
3.7 Installing the 2.5-inch HDD/SSD

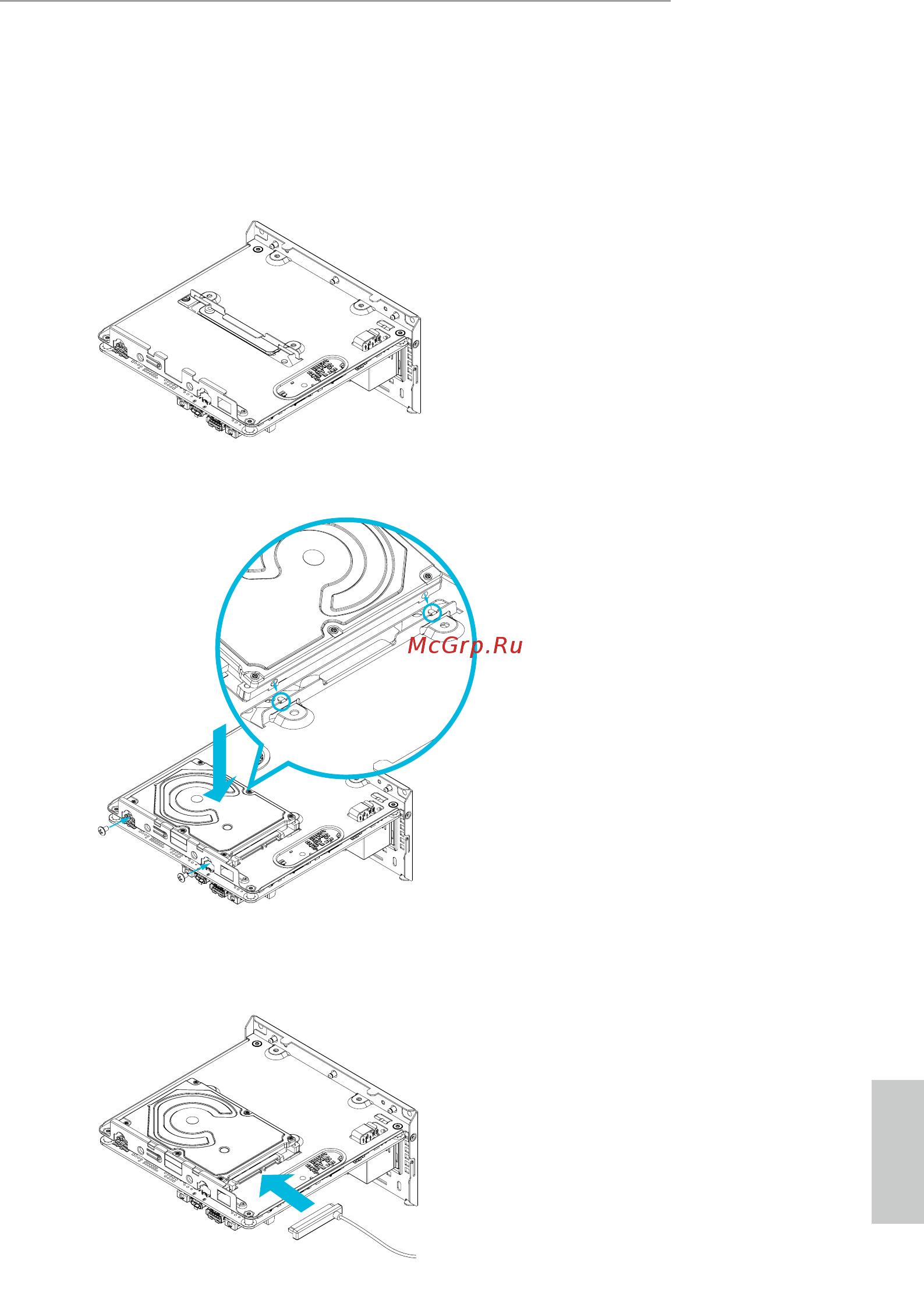

1. Place another HDD/SSD on the tray B shown in Step 1. en turn the motherboard
tray upside down and secure the HDD/SSD with the four screws.
*Removing the motherboard before installing the second HDD/SSD.
2. Connect the SATA Data and Power Cable to the HDD/SSD.
3. Connect the other end of the SATA Cables to the SATA Connectors on the
motherboard.
A
B
