4-46
Chapter 4: BIOS setup

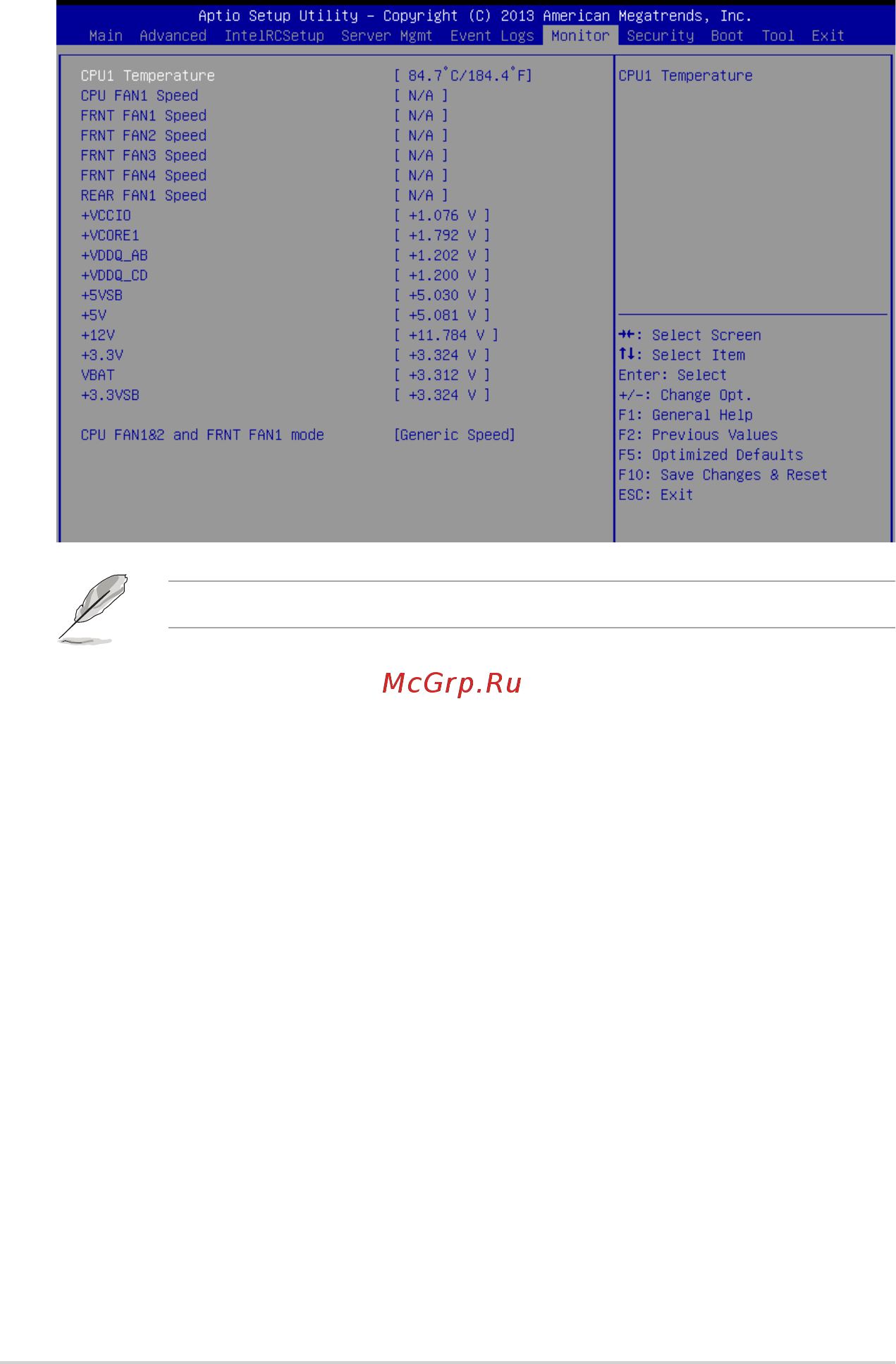

4.8 Monitor menu
TheMonitormenudisplaysthesystemtemperature/powerstatus,andallowsyoutochange
the fan settings.
Scroll down to view the other items
CPU1 Temperature [xxx°C/xxx°F]
The onboard hardware monitor automatically detects and displays the CPU temperatures.
CPU FAN1 Speed; FRNT FAN1–4 Speed; REAR FAN1 Speed [xxxx RPM] or
[N/A]
TheonboardhardwaremonitorautomaticallydetectsanddisplaysthespeedofCPUfans,
frontfans,andrearfaninrotationsperminute(RPM).Ifthefanisnotconnectedtothe
motherboard,theeldshowsN/A.
+VCCIO Voltage, VCORE1 Voltage, +VDDQ_AB Voltage, +VDDQ_CD Voltage,
+5VSB Voltage, +5V Voltage, +12V Voltage, +3.3V Voltage, VBAT Voltage,
+3.3VSB Voltage
The onboard hardware monitor automatically detects the voltage output through the onboard
voltage regulators.
CPU FAN1&2 and FRNT FAN1 mode [Generic Speed]
AllowsyoutoconguretheASUSSmartFanfeaturethatsmartlyadjuststhefanspeedsfor
moreefcientsystemoperation.
Congurationoptions:[GenericSpeed][HighSpeedSpeed][FullSpeedSpeed][Manual]
Duty % [50]
ThisitemappearsonlywhenCPUFAN1&2andFRNTFAN1modeissetto[Manual].
Thisitemallowsyoutocongurethefandutysettingfrom10%to100%.
