4-38
Chapter 4: BIOS setup
4.5.8 Server ME Configuration

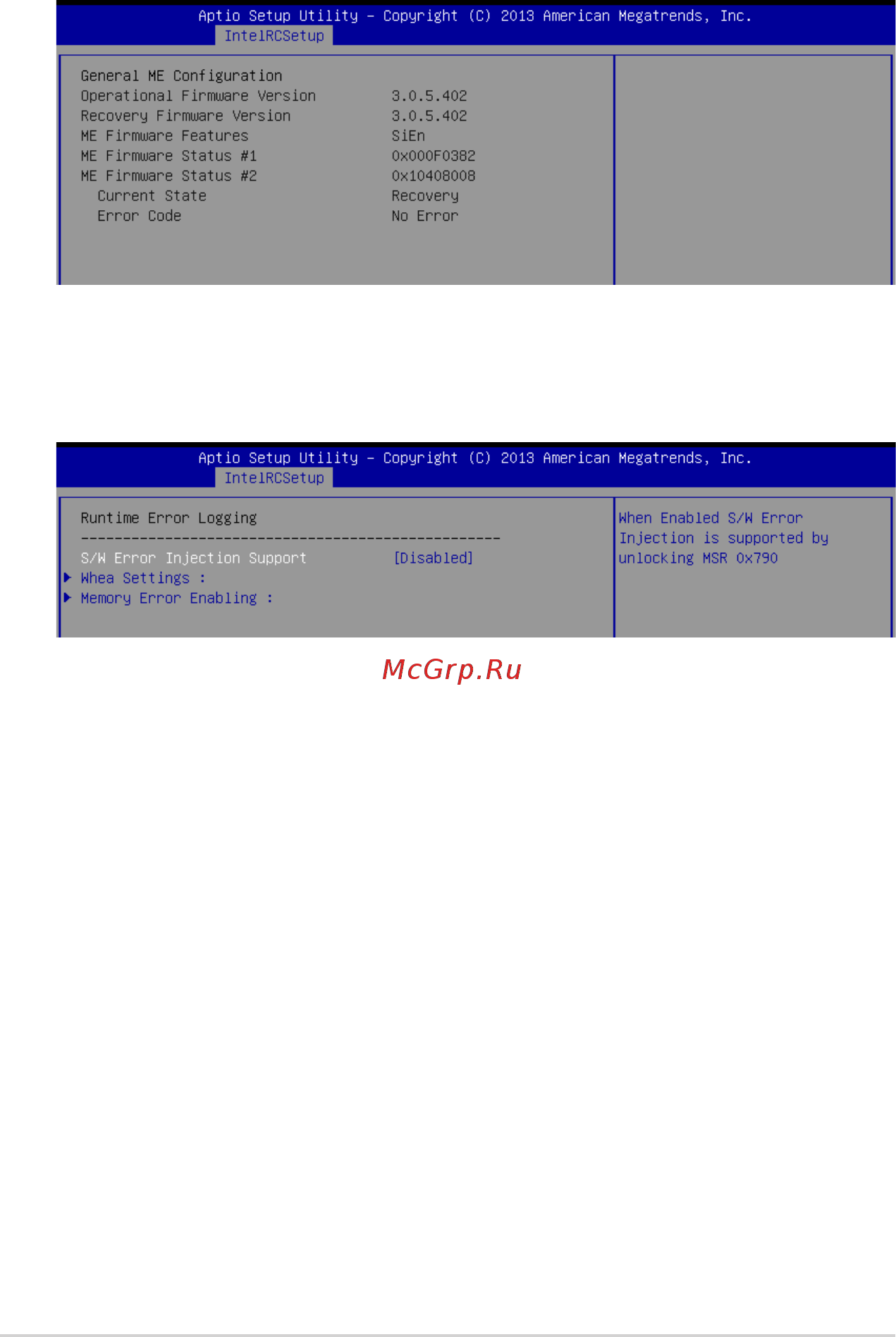

Displays the Server ME Technology parameters on your system.
4.5.9 Runtime Error Logging
Runtime Error Logging
S/W Error Injection Support [Disabled]
Whenenabled,S/WErrorInjectionissupportedbyunlockingMSR0x790.
Congurationoptions:[Disabled][Enabled]
Whea Settings
WHEA Support [Disabled]
ThisitemallowsyoutoenableordisabletheWHEAsupport.
Congurationoptions:[Disabled][Enabled]
Memory Error Enabling
Memory corrected Error enabling [Disabled]
This item allows you to enable or disable memory corrected Errors.
Congurationoptions:[Disabled][Enabled]
