Asus z10pa-u8 [47/186] Internal connectors
![Asus z10pa-u8 [47/186] Internal connectors](/views2/1214390/page47/bg2f.png)
2-29
Z10PA-U8 Series
The actual data transfer rate depends on the speed of Serial ATA hard disks installed.
2.8.2 Internal connectors

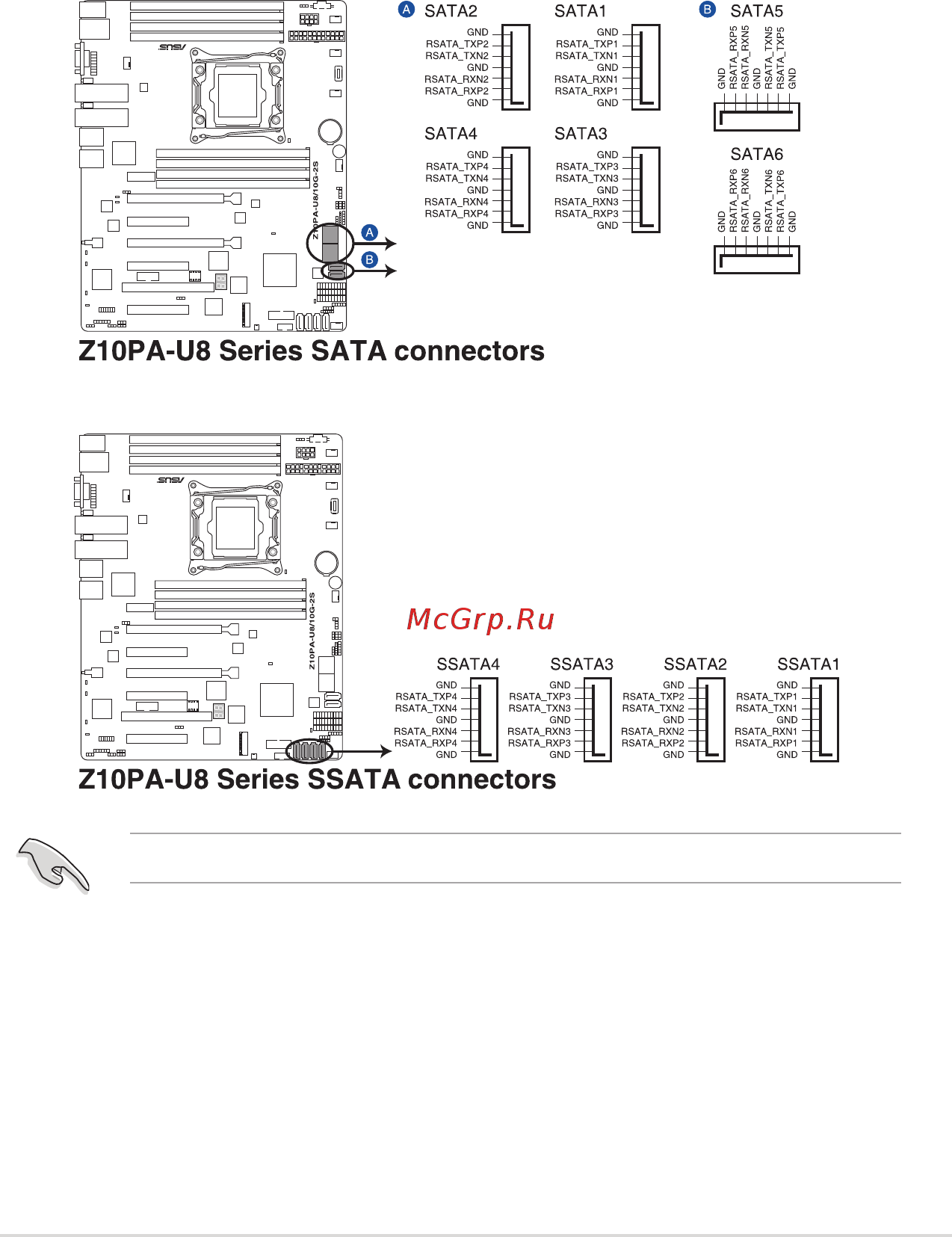

1. Serial ATA 6.0 Gb/s connectors (7-pin SATA1-6, SSATA1-4)
Supported by the Intel
®
612Serieschipset,thisconnectorisfortheSerialATAsignal
cablesforSerialATAharddiskdrivesthatallowsupto6Gb/sofdatatransferrate.
IfyouinstalledSerialATAharddiskdrives,youcancreateaRAID0,RAID1,RAID10,
orRAID5conguration.
