4-37
Z10PA-U8 Series

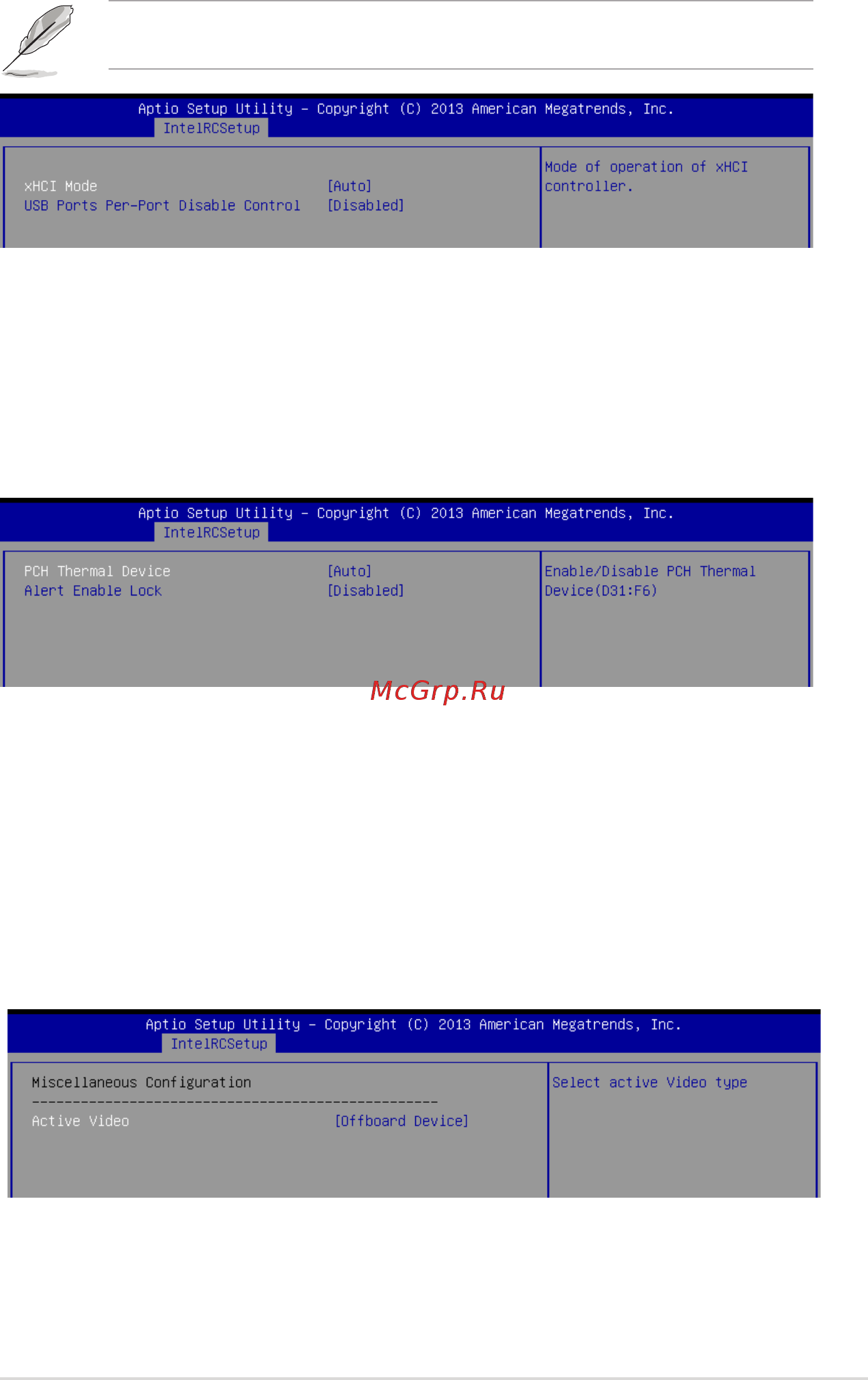

The following items appears only when the USB Ports Per-Port Disable Control is set to
[Enabled].
USB Port #1/ #2/ #3/ #4/ #5/ #6/ #7/ #8 [Enabled]
Congurationoptions:[Disabled][Enabled]
USB 3.0 Port #1/ #2/ #3/ #4 [Enabled]
Congurationoptions:[Disabled][Enabled]
Platform Thermal Configuration
PCH Thermal Device [Auto]
Allows you to enable or disable the PCH Thermal Device (D31:F6).
Congurationoptions:[Auto][Disabled][Enabled]
Alert Enable Lock [Disabled]
AllowsyoutolockallAlertEnablesettings.
Congurationoptions:[Disabled][Enabled]
4.5.7 Miscellaneous Configuration
Active Video [Offboard Device]
Allows you to select the video type.
Congurationoptions:[OnboardDevice][OffboardDevice]
