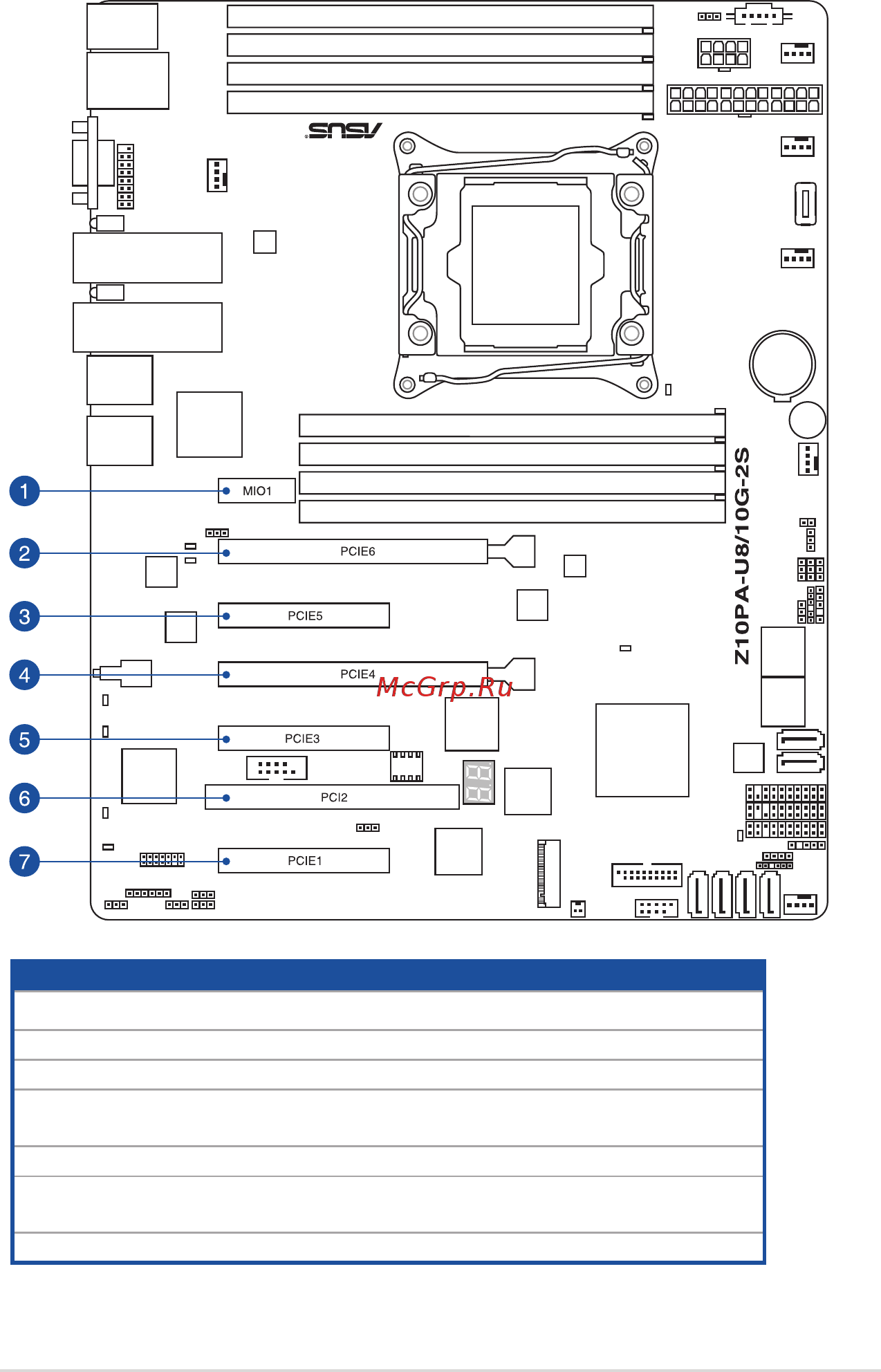

2-17
Z10PA-U8 Series
No. (Slot location) Short description
1 PCIE1 PCI-Ex8(x4Gen2 link)
2 PCI2 PCI
3 PCIE3 PCI-Ex8(x8Gen3Link)
4 PCIE4
PCI-Ex16(x16Gen3Link)
(Autoswitchtox8Linkifslot3isoccupied)
5 PCIE5 PCI-Ex8(x8Gen3Link)
6 PCIE6
PCI-Ex16(x16Gen3Link)
(Autoswitchtox8Linkifslot5isoccupied)
7 MIO1 MIO(OnlyforAudio)
