2-26
Chapter 2: Hardware information

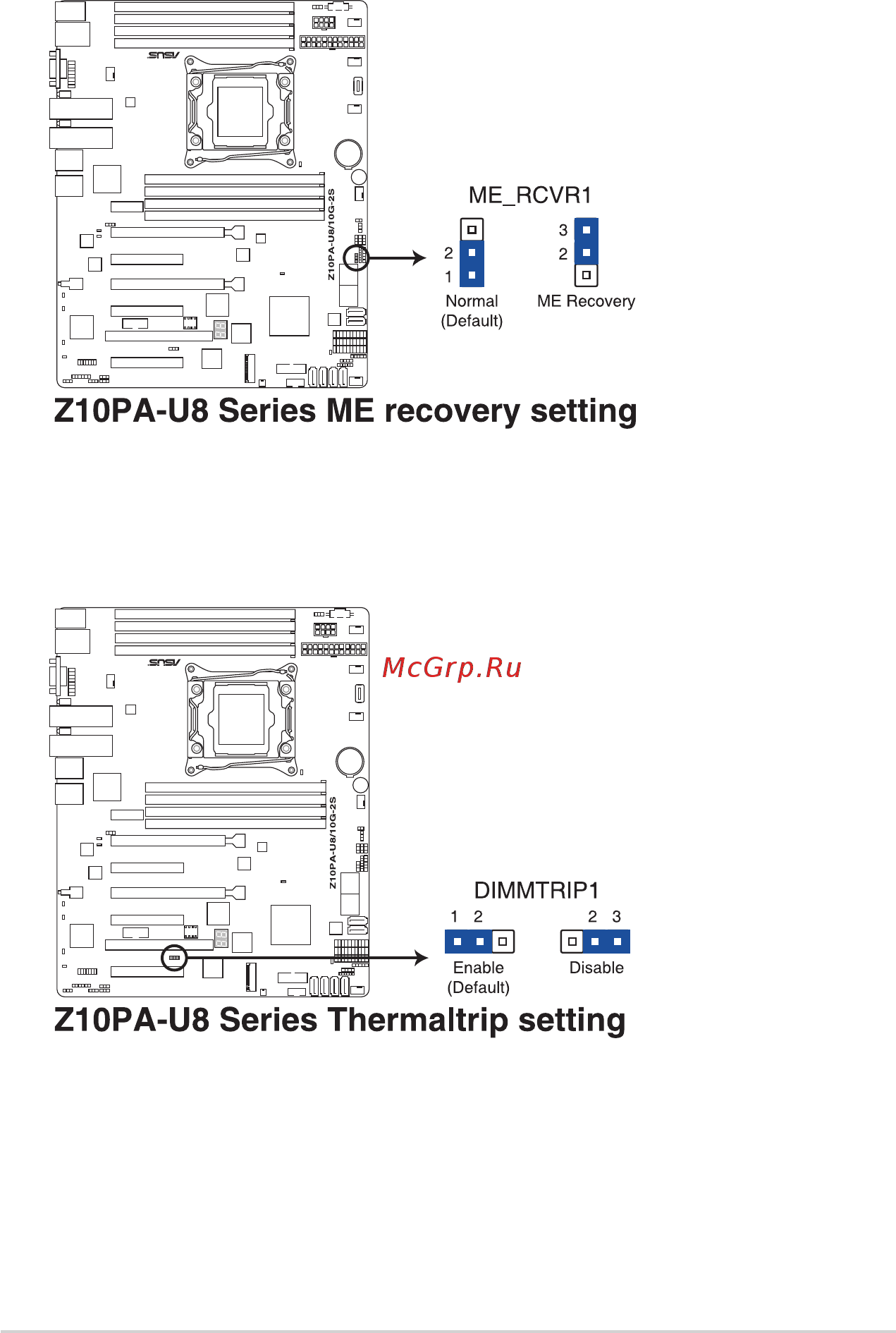

4. ME firmware force recovery setting (3-pin ME_RCVR1)
This jumper allows you to force Intel
®
ManagementEngine(ME)bootfromrecovery
modewhenMEbecomescorrupted.
5. DDR4 thermal event setting (3-pin DIMMTRIP1)
ThisjumperallowsyoutoenableordisableDDR4DIMMthermalsensingeventpin.
