DJI ronin-m [11/35] Mounting the camera

Ronin-M

User Manual

Make sure the DJI Intelligent Battery is turned off during installation.

An incorrectly installed battery may lead to (1) Poor battery connection, or (2) Unavailable

battery information.

Mounting the Camera

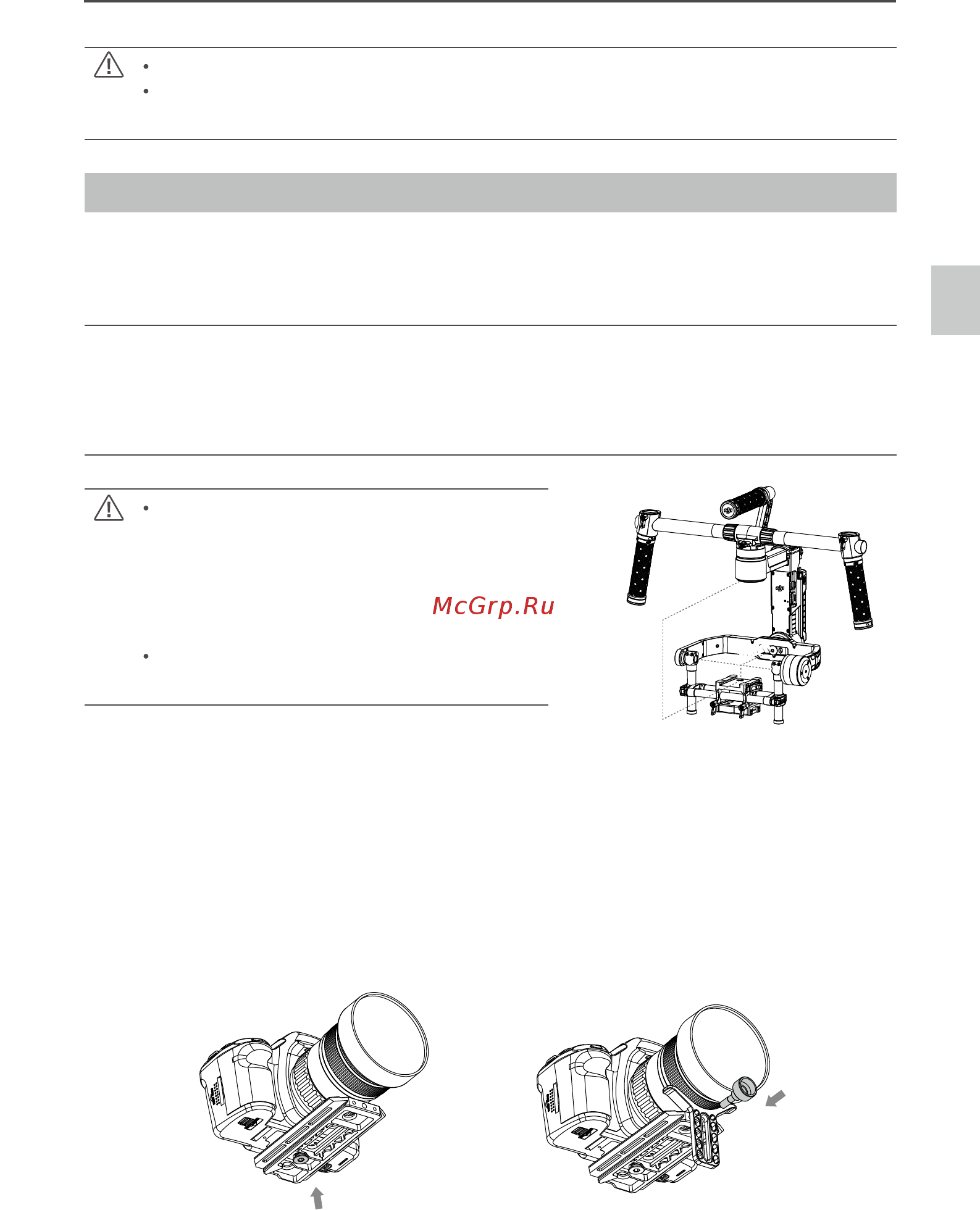

The Ronin-M uses an adjustable camera mounting plate that allows you to easily balance, install, and

remove the camera. The Ronin-M has been tested with the following types of cameras. Other cameras

similar in size and weight may also be compatible.

Black Magic Cinema Camera Canon 5DMKIII Nikon D800

Black Magic Pocket Cinema Camera Canon 6D Panasonic GH3

Canon 1Dc Canon 7D Panasonic GH4

Canon 5DMKII Canon C100 Sony Alpha 7

Camera Size Requirements: The maximum

depth from the center of gravity on the camera

base plate is 120 mm. The maximum height,

measured from the top of the camera base plate,

is 195 mm. The maximum width is 160 mm as

shown in the image to the right.

To avoid obstructing camera movement, the

use of soft connection cables is recommended.

1. Attach the camera mounting plate to your camera using the provided camera screws A, B, C or

D. Camera screws A and B only t the holes of the mounting plate, while camera screws C and

D only t the slot of the mounting plate. Be sure to use the correct 1/4" or 3/8" screws. Secure the

camera as rmly as possible. Some cameras have two tripod mounting holes. If two mounting

holes are available on your camera, use them both. Choose the correct screw holes, according

to your camera’s conguration.

2. Install the lens support by gently pushing it up, so that it is applying light pressure to the lens.

Then tighten the thumbscrew.

195mm

160mm

140mm

120mm

Getting Started
