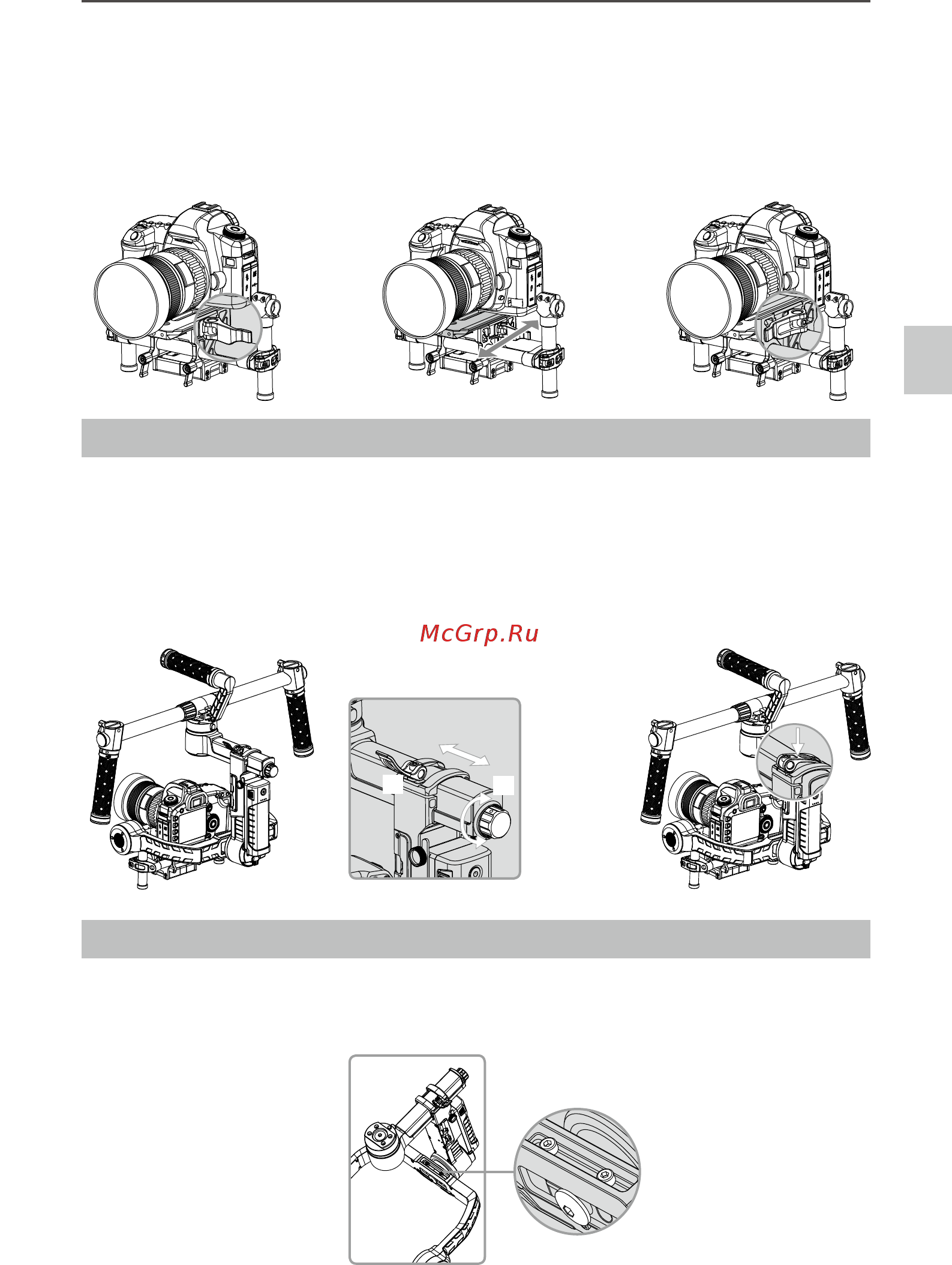

Advanced Roll Adjustment

If additional roll adjustment is needed in cases where the camera itself is too light in comparison to the

tilt motor assembly, advanced roll adjustment can be achieved by loosening the indicated screws and

pushing the assembly to the right or left.

[1]

[2]

Balancing

1. Loosen the camera base's side clamp to allow the camera and mounting plate to slide forwards

and backwards.

2. Slide the camera forwards or backwards until the tilt axis remains level. Only very small

adjustments are required to achieve the proper balance.

3. Tighten the side clamp to lock the camera and mounting plate in position. If properly balanced,

the camera should be able to remain steady at any given tilt angle.

Step4:BalancingthePanAxis

The entire mass below the pan motor must be balanced on the central axis line of the pan motor. To

achieve this balance, you must adjust the pan axis slide.

1. Open the clamp [1] on the pan axis and turn the knob [2] to slide the assembly. Identify if the

Ronin-M is front heavy or rear heavy.

2. While the Ronin-M is resting on the tuning stand, try rotating the Ronin-M along the pan axis by

lifting one side of the handle bar. If the camera does not swing, the pan axis is properly balanced.

Tighten the clamp after balancing is completed.
