2. Turn off the server (see “Turning off the server” on page 21) and all attached

peripheral devices. Disconnect all power cords; then, disconnect all external

cables as necessary to replace the device.

3. Remove the top cover (see “Removing the server top cover” on page 33).

4. Remove PCI riser-card assembly 1 from the server. (see “Removing a PCI

riser-card assembly” on page 328).

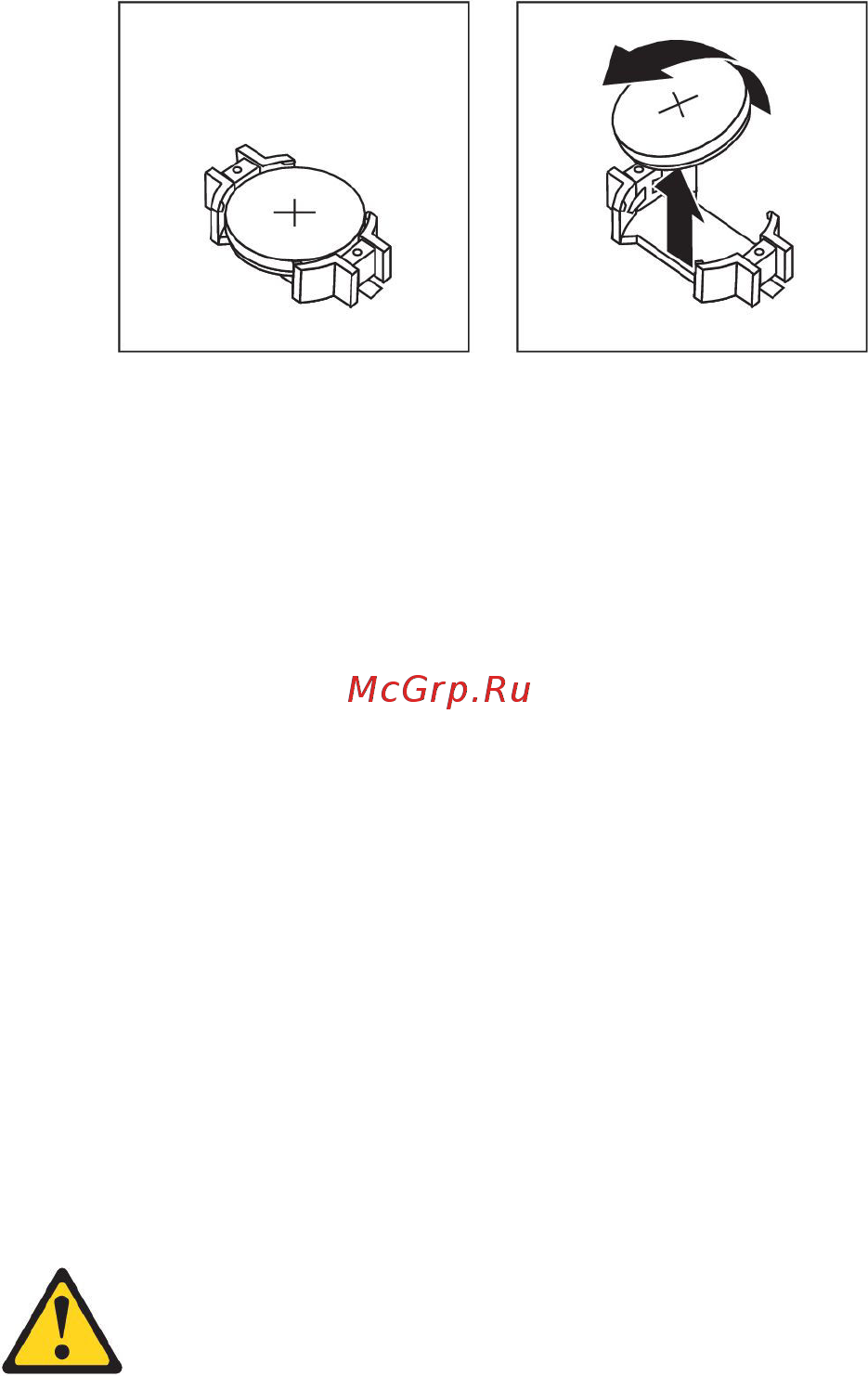

5. Remove the system-board battery:

a. Use one finger to push the battery horizontally out of its housing.

b. Use your thumb and index finger to lift the battery from the socket.

6. Dispose of the battery as required by local ordinances or regulations. See the

IBM Environmental Notices and User's Guide on the IBM Documentation CD for

more information.

Replacing the system battery

The following notes describe information that you must consider when replacing

the system-board battery in the server.

v When replacing the system-board battery, you must replace it with a lithium

battery of the same type from the same manufacturer.

v To order replacement batteries, call 1-800-426-7378 within the United States, and

1-800-465-7999 or 1-800-465-6666 within Canada. Outside the U.S. and Canada,

call your IBM marketing representative or authorized reseller.

v After you replace the system-board battery, you must reconfigure the server and

reset the system date and time.

v To avoid possible danger, read and follow the following safety statement.

Statement 2

CAUTION:

When replacing the lithium battery, use only IBM Part Number 33F8354 or an

equivalent type battery recommended by the manufacturer. If your system has a

module containing a lithium battery, replace it only with the same module type

made by the same manufacturer. The battery contains lithium and can explode if

not properly used, handled, or disposed of.

Do not:

v Throw or immerse into water

v Heat to more than 100°C (212°F)

v Repair or disassemble

Dispose of the battery as required by local ordinances or regulations.
