IBM system x3530 m4 (7160k2g, 90y8826 х4, 49y3760, 00d4413) [43/402] System board jumpers

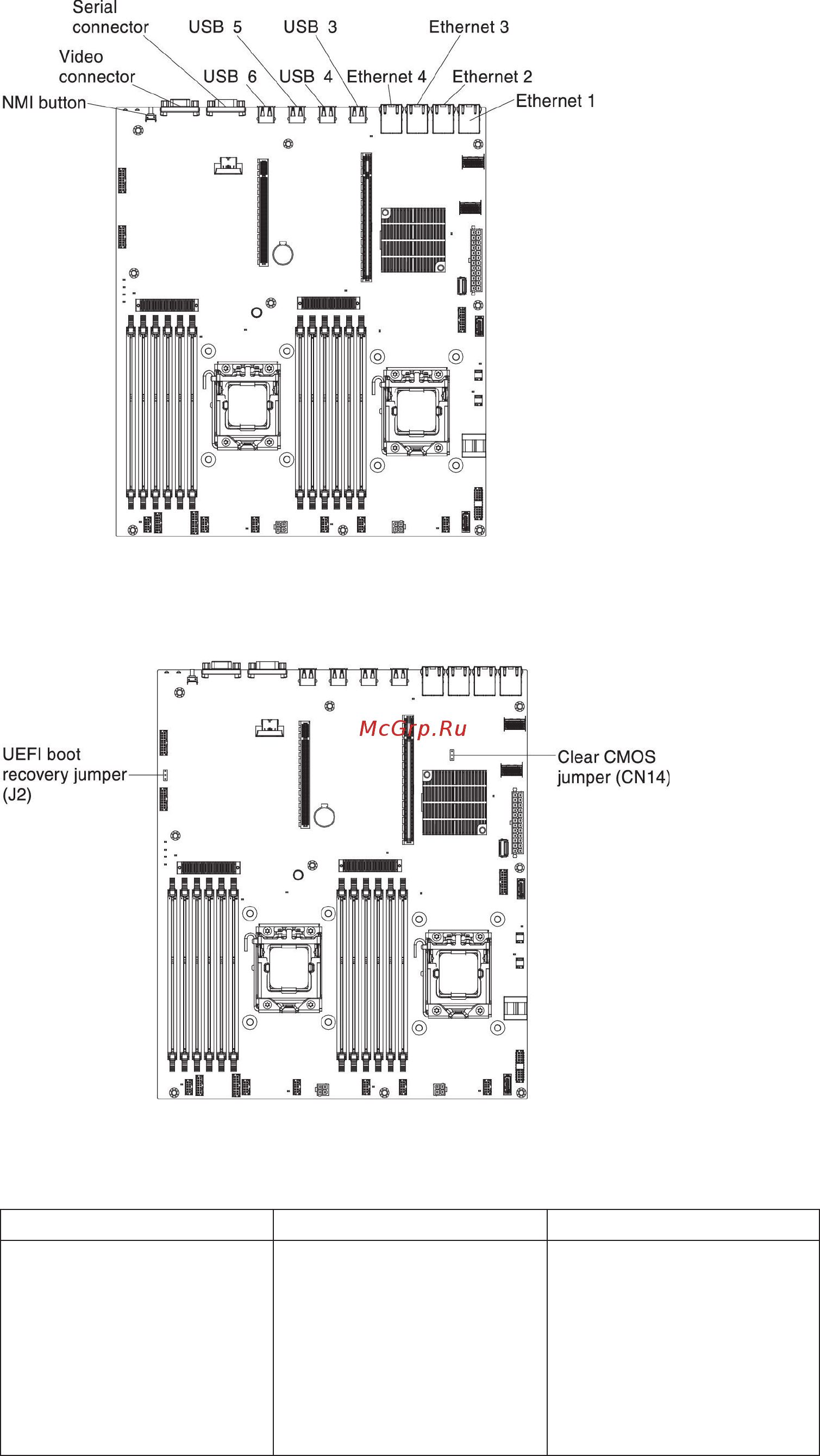

System-board jumpers

The following illustration shows the location of the jumpers.

The following table describes the jumper on the system board.

Table 2. System board jumpers

Jumper number Jumper name Jumper setting

CN14 Clear CMOS jumper

v Pins 1 and 2: Normal

(default) This keeps the

CMOS data.

v Pins 2 and 3: This clears

the CMOS data such as

power-on password and

loads the default UEFI

settings.

Chapter 2. Installing optional devices 27
