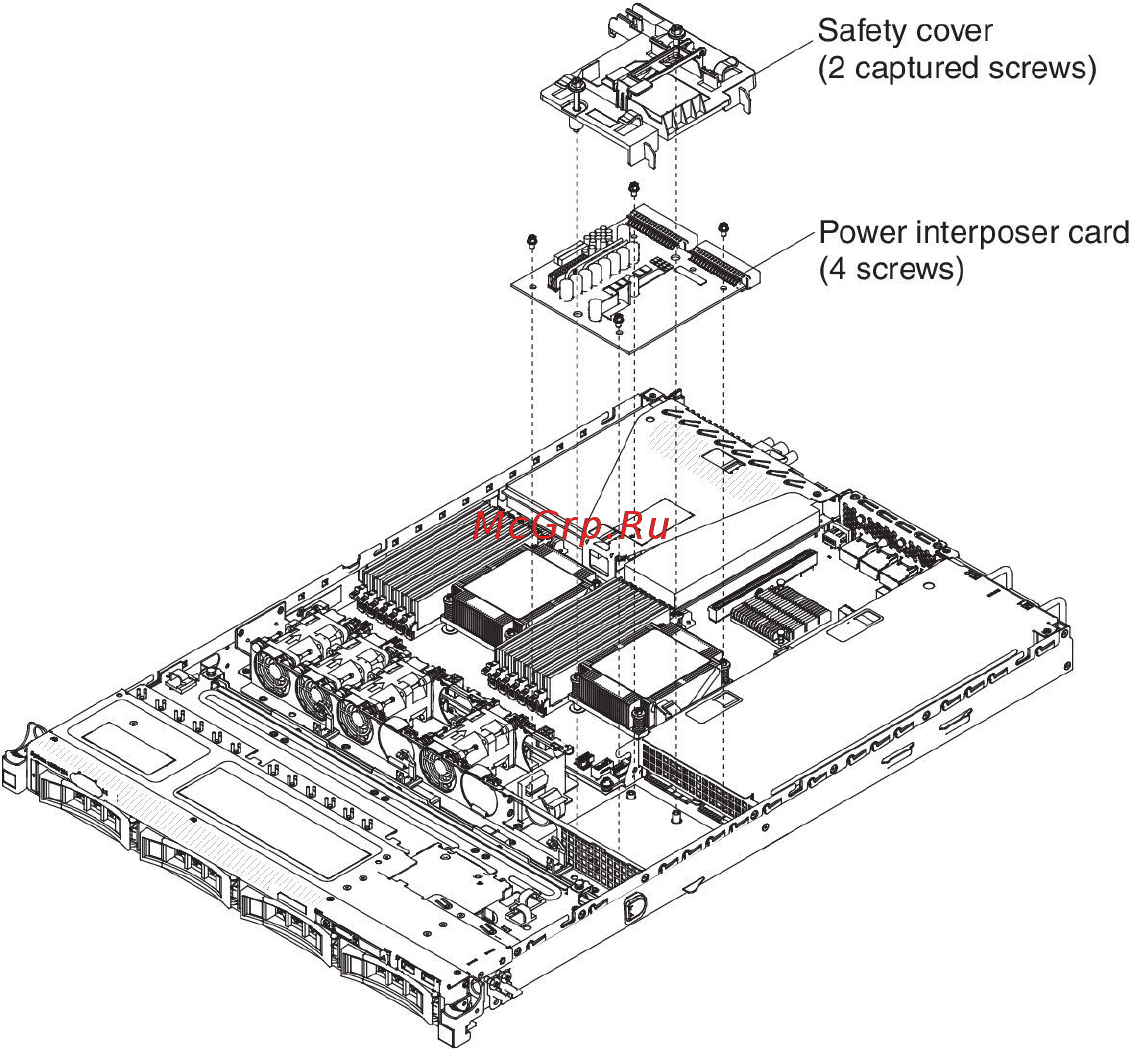

10. Remove the screws that secure the power interposer card to the chassis.
11. Disconnect the power cable from the power interposer card; then, remove the
power interposer card out of the server.
12. If you are instructed to return the power interposer card, follow all of the
packaging instructions, and use any packaging materials for shipping that are
supplied to you.
Replacing the power interposer card assembly
To install the power interposer card assembly, complete the following steps:
1. Read the safety information that begins on page Safety and “Installation
guidelines” on page 30.
2. Reconnect the power cable to the power interposer card.
3. Align the screw holes on the power interposer card with the screw holes on
the chassis; then, install the screws to secure the power interposer card to the
chassis.
342 System x3530 M4 Type 7160: Installation and Service Guide
