Server internal LEDs, connectors, and jumpers

The illustrations in this section show the connectors, LEDs, and jumpers on the

internal boards. The illustrations might differ slightly from your hardware.

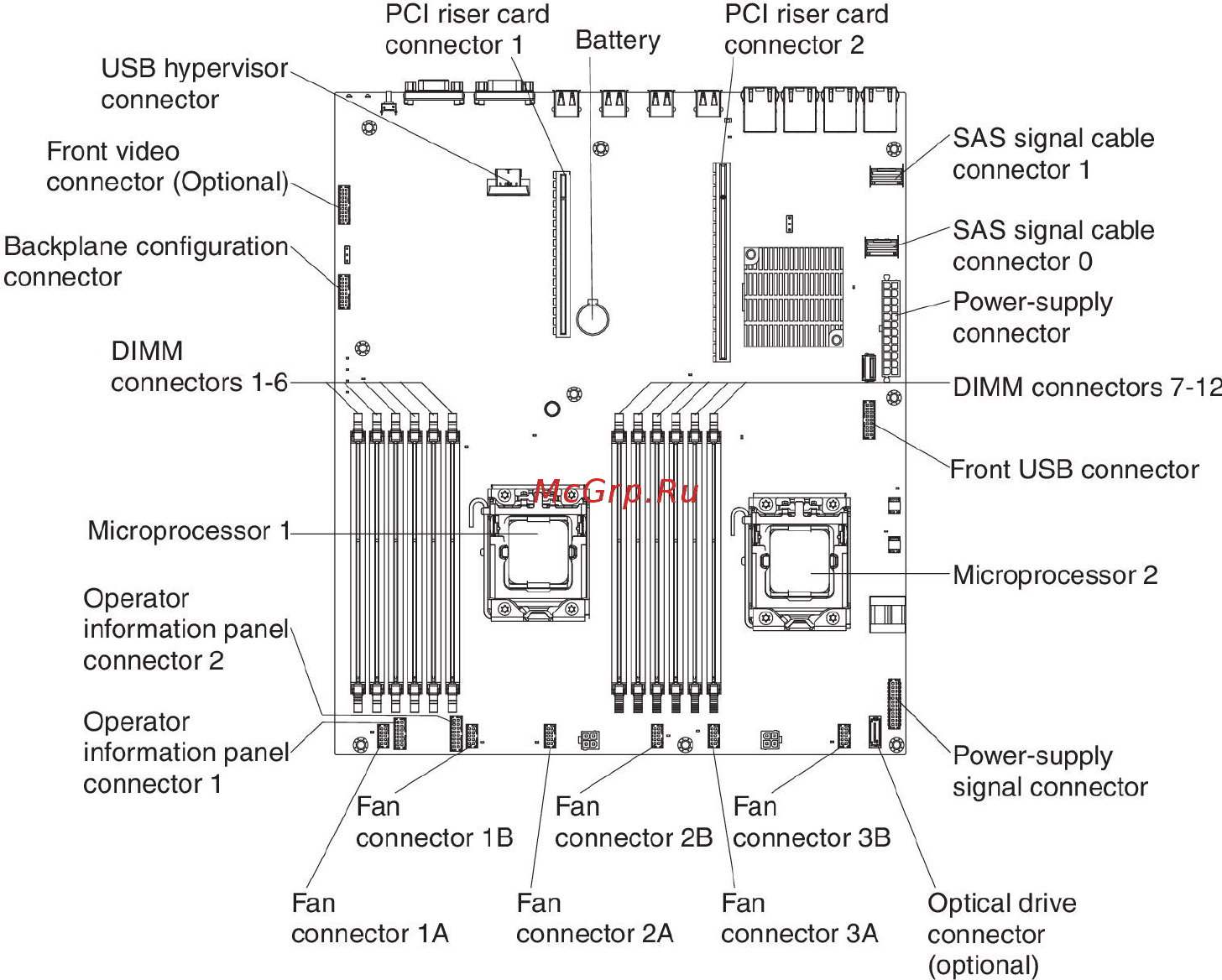

System-board internal connectors

The following illustration shows the internal connectors on the system board.

System-board external connectors

The following illustration shows the external input/output connectors on the

system board.

26 System x3530 M4 Type 7160: Installation and Service Guide
