system x3530 m4 (7160k2g, 90y8826 х4, 49y3760, 00d4413)
Инструкция по эксплуатации Страница: 59

IBM system x3530 m4 (7160k2g, 90y8826 х4, 49y3760, 00d4413) Инструкция по эксплуатации онлайн [59/402] 183097

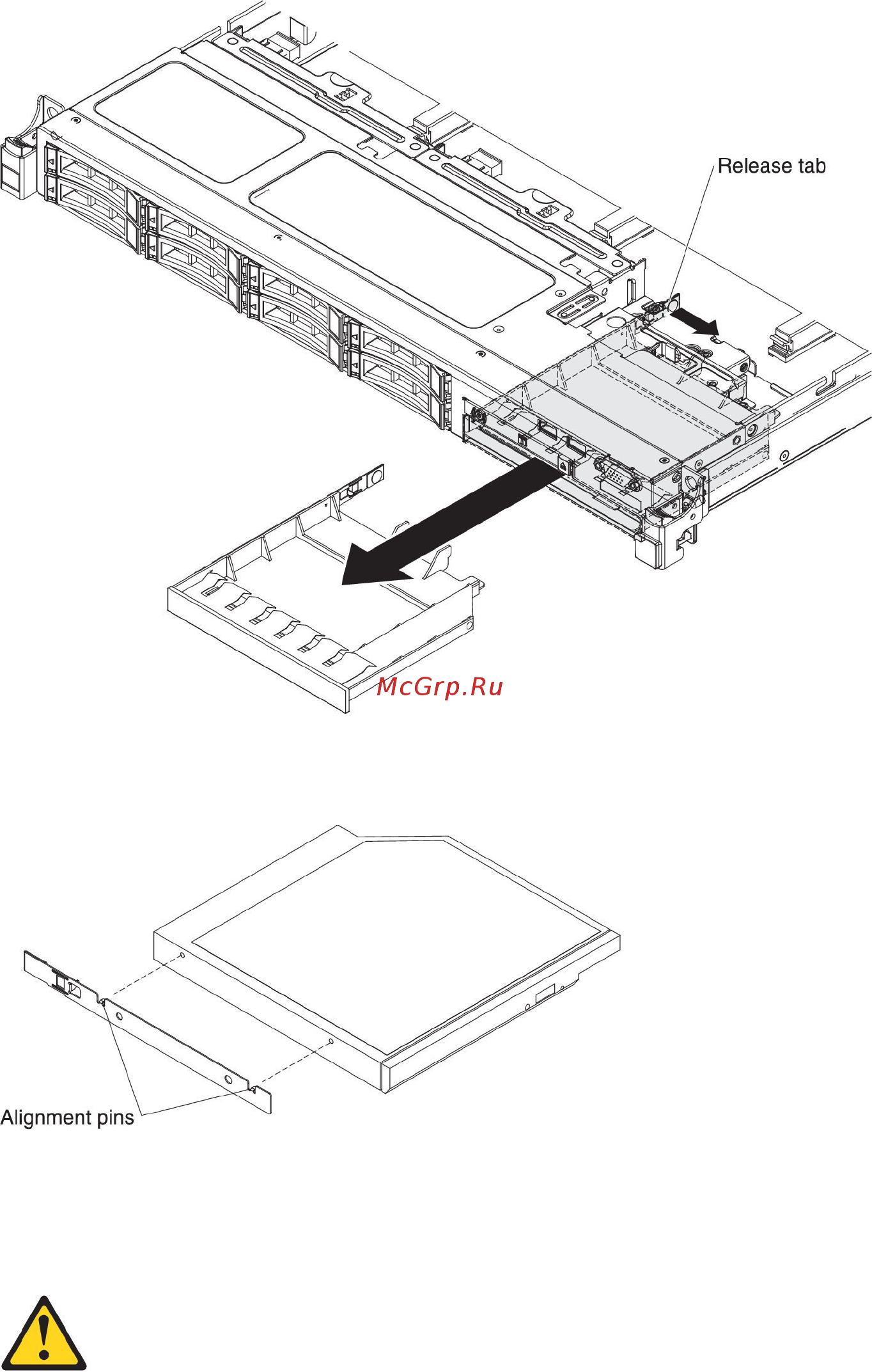

5. Pull the optical drive filler out of the front of the server.

6. Remove the retention clip from the side of the drive filler.

Note: If you are installing a drive that contains a laser, observe the following

safety precaution.

Statement 3

Chapter 2. Installing optional devices 43
