Intel r2208gl4gs [19/22] Reference
![Intel r2208gl4gs [19/22] Reference](/views2/1219990/page19/bg13.png)
15
Reference

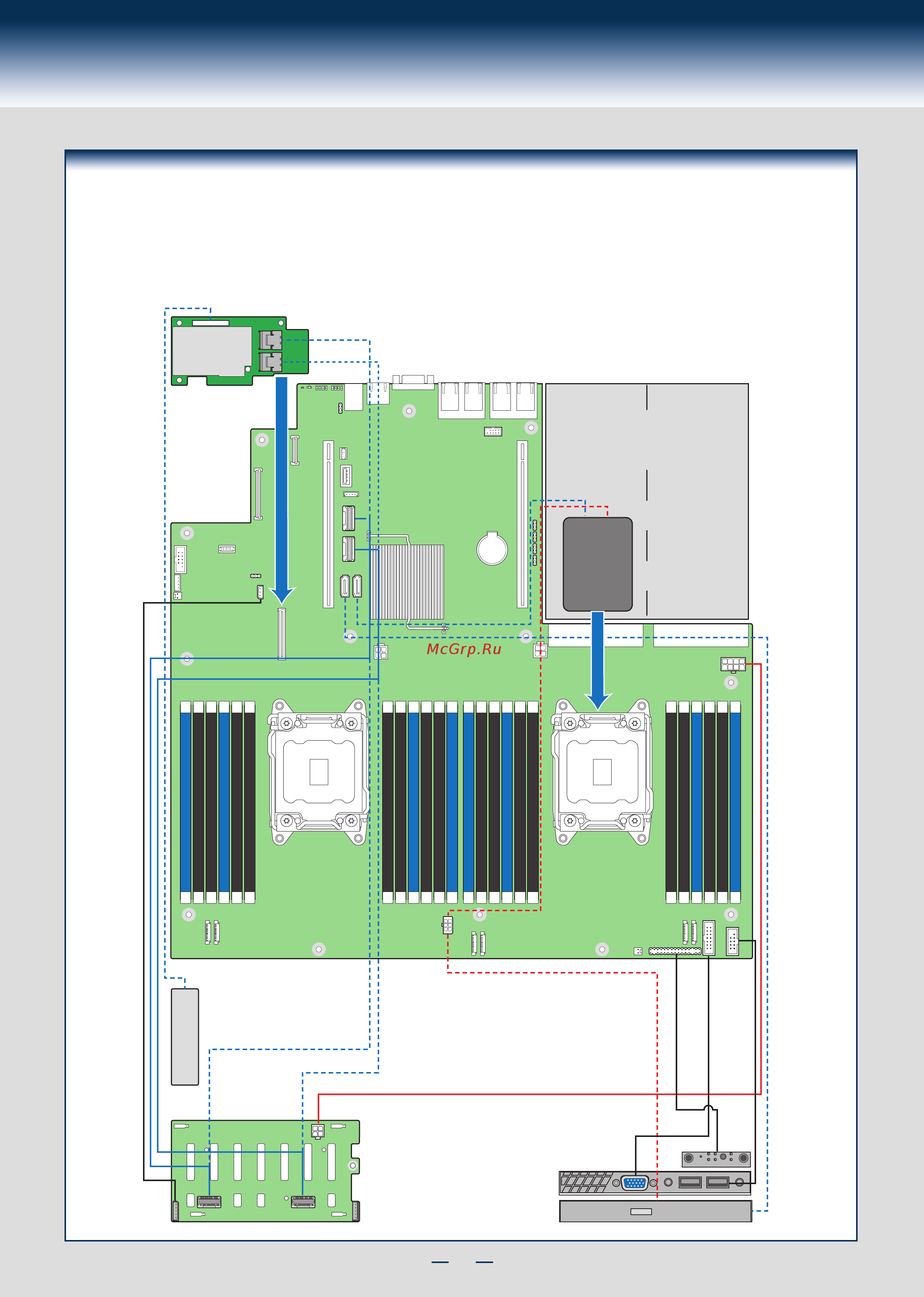

System Cabling Diagram
For system with 8 x 2.5” hard drive bay:
NOTES: To activate the port SCU1 (4-7) on the server board, a proper Intel
®
RAID C600 Upgrade Key must be
installed. For instructions, see Intel
®
RAID C600 Upgrade Key Installation Guide.
A second SSD is supported when the optical drive is NOT in use. For cable routing, please refer to Page 17.
Server
Board
Power
Supply
SSD
Optical Drive
BBU
Intel
®
Integrated
RAID Module
8 x 2.5" HSBP
Front Panel
I
2
C
Front Panel Video
Front Panel USB
Mount on Air Duct
