17
Reference

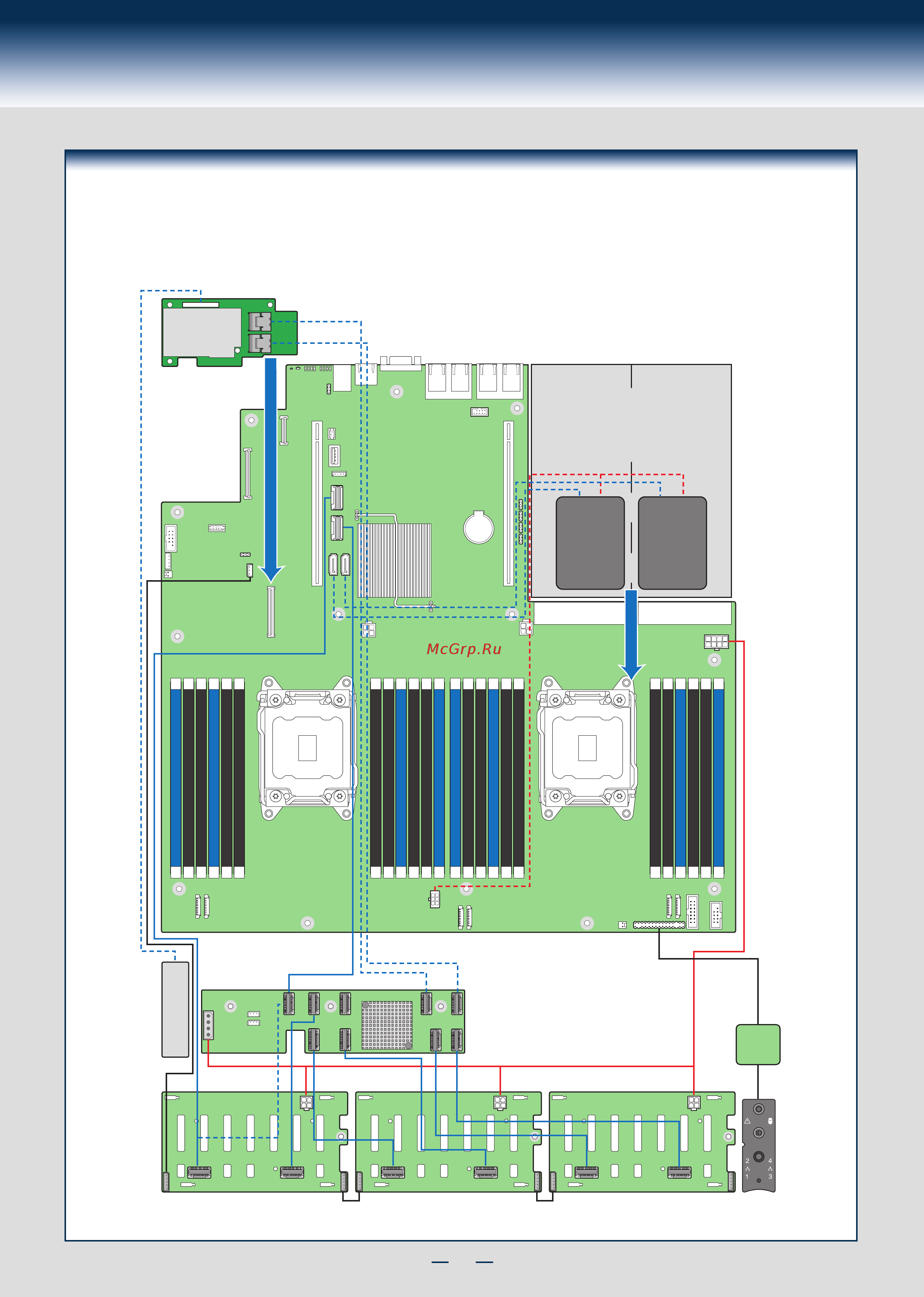

System Cabling Diagram
For system with 24 x 2.5” hard drive bay:
NOTE: To activate the port SCU1 (4-7) on the server board, a proper Intel
®
RAID C600 Upgrade Key must be
installed. For instructions, see Intel
®
RAID C600 Upgrade Key Installation Guide.
Server
Board
Power
Supply
SAS
Expander
BBU
SSD SSD
Intel
®
Integrated
RAID Module
8 x 2.5" HSBP 8 x 2.5" HSBP 8 x 2.5" HSBP
Front Panel
I
2
C
I
2
C
I
2
C
Mount on Air Duct
Interposer
Board
A B
C D E
H I
F
G
