CONNECTION/INSTALLATIONCONNECTION/INSTALLATION
Removing the unit (Only for KW-V420BT
Region 4/KW-V320BT Region4/KW-V220BT
Region4)

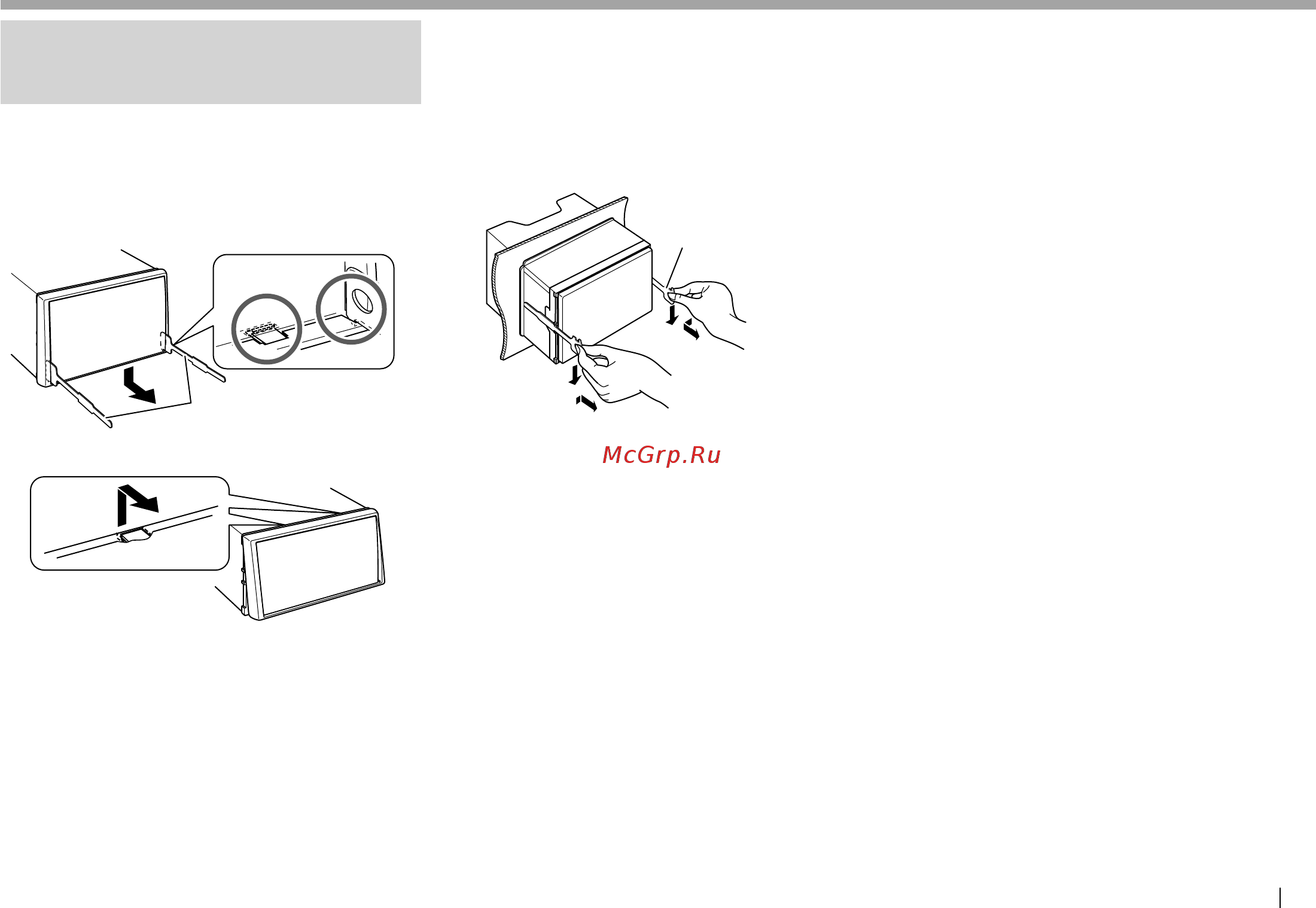

❏ Removing the trim plate
1 Engage the catch pins on the extraction
key (4) and remove the two locks on the
lower part. Lower the frame and pull it
forward.
4
2 Remove from the upper two catches.
• The frame can be removed from the top side in
the same manner.
❏ Removing the unit
1 Remove the trim plate. (See the left
column.)
2 Insert the two extraction keys (4), then
pull them as illustrated so that the unit can
be removed.
4
• Be careful to avoid injury from the catch pins on
the extraction key.
