OTHER EXTERNAL COMPONENTSOTHER EXTERNAL COMPONENTS

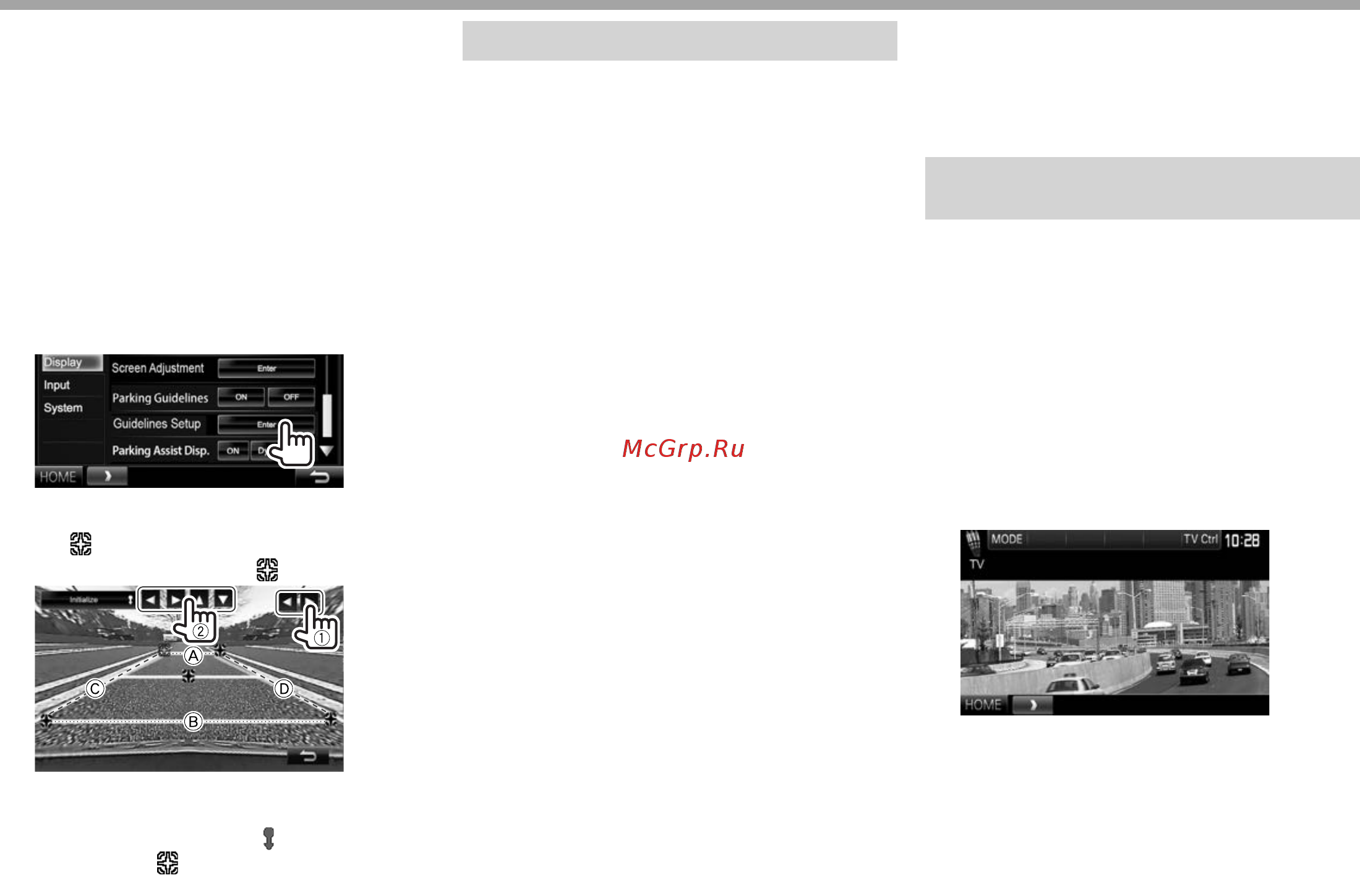

Adjusting the parking guidelines
Adjust the parking guidelines according to the size
of the car, parking space and so on.
• Install the rear view camera in the appropriate
position according to the instructions supplied
with the rear view camera.
• When adjusting the parking guidelines, make sure
to use the parking brake to prevent the car from
moving.
1 Display the <Display> setting screen.
(Page33)
• Press [K] repeatedly to change the page on
the <Display> menu screen.
2
3 Adjust the parking guidelines by selecting
the
mark (1), then adjusting the
position of the selected
mark (2).
Make sure that A and B are horizontally
parallel, and that C and D are the same length.
• Press and hold [Initialize ] for 2 seconds
to set all the marks to the initial default
position.
Using a smartphone—HDMI/MHL
❏ What is HDMI/MHL?
HDMI stands for High Definition Multi-media
Interface. HDMI connections can transfer digital
video source signals (such as from a DVD player)
without converting them to analog.
A new feature that has been added to HDMI that
extends its capabilities further is MHL, or Mobile
High-definition Link.
Both interfaces allow your smartphone to connect to
the device. When it is connected, you can see your
smartphone’s screen on the monitor.
About Wireless Display Adapter
This unit is compatible with Wireless Display
Adapters. Connecting a Wireless Display Adapter
(KCA-WL100: optional accessory) to the HDMI/MHL
input terminal (Page 63 ) enables you to enjoy
listening to music, watching videos, or viewing
pictures over a wireless connection.
• For details about Wireless Display Adapter
settings, etc., refer to the instructions supplied
with the Wireless Display Adapter.
❏ Displaying the screen of the
smartphone
You can display the screen of smartphones
connected via the HDMI/MHL input terminal.
1 Connect your smartphone to the HDMI/
MHL input terminal. (Page 63)
• Use HDMI cable KCA-HD100 (optional
accessory) or MHL cable KCA-MH100 (optional
accessory).
2 Select “HDMI/MHL” as the source.
(Page9)
3 Start an application or playback on your
smartphone.
Watching a TV (Only for DDX5016DAB/
DDX5016BT)
Preparation
• Connect the TV tuner box to AV-IN1 input terminal
and TV tuner remote control output terminal.
(Page 63)
• Select [ON] for <TV Tuner Control>. (Page54)
❏ Displaying the TV screen
1 Select “AV-IN1” as the source. (Page9)
2 Turn on the TV.
❏ Operation buttons on the source
control screen
[TV Ctrl ] Displays the TV control screen.
• [J]/[K]: Displays the TV List screen.
• [H]/[I]: Displays the Radio List screen.
• [Menu/OK]: Displays the menu or
confirms the selection.
• [Back]: Restores the TV screen.
[HOME] Displays the <HOME> screen.
