ENGLISH 63
CONNECTION/INSTALLATIONCONNECTION/INSTALLATION

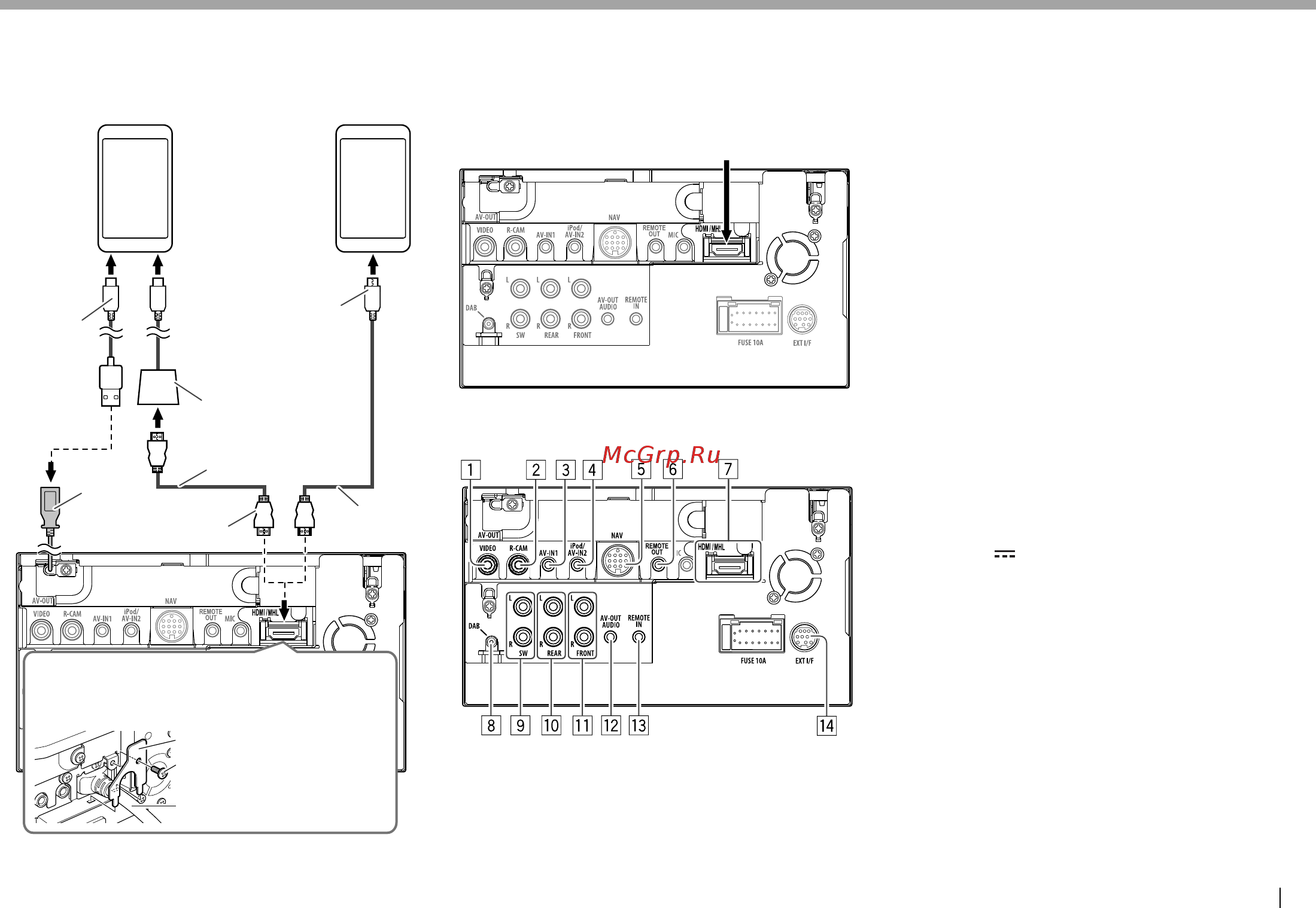

❏ Connecting a Smartphone
Android, etc.
(with HDMI)
(commercially available)
Android, etc
(with MHL)
(commercially available)
Micro USB Micro HDMI (Type D)
Micro HDMI to HDMI
adapter (commercially
available)
KCA-HD100
(optional accessory)
Micro USB to
USB cable
(commercially
available)
KCA-MH100
(optional accessory)*
HDMI/MHL cable
6
7
When connecting to the HDMI/MHL connector, fix the
HDMI/MHL cable using the fixture (6) and screw (7).
1.8 m
1.8 m
1.0 m
* Use conversion adapter to connect to smartphones if necessary.
❏ Connecting the Wireless Display
Adapter to use smartphone/iPod/
iPhone over a wireless connection
Wireless Display Adapter: KCA-WL100
(optional accessory)
❏ Connecting external components
1 AV-OUT/Video output (Yellow)
2 Rear view camera input (Yellow)
3 Audio Video input (AV-IN1)*
1
4 iPod/Audio Video input (iPod/AV-IN2)*
1
5 NAVI I/F input*
2
6 TV tuner remote control output*
2
7 HDMI/MHL input
8 DAB aerial input*
3
9 Subwoofer preout (monaural output)*
4
• Subwoofer left output (White)
• Subwoofer right output (Red)
p Rear preout*
4
• Audio left output (White)
• Audio right output (Red)
q Front preout*
4
• Audio left output (White)
• Audio right output (Red)
w Audio output (ø3.5 mini jack)
Resistance-free stereo type mini plug
e Direct steering remote control input (ø3.5 mini
jack)*
2
• Contact your Kenwood dealer for details.
r External I/F for connecting a commercial adapter
(DC 12 V 500 mA max)*
2
*
1
When connecting the component to play on “AV-IN1” or
“AV-IN2”, use the Audio and Video cable CA-C3AV (optional
accessory).
*
2
Only for DDX5016DAB/DDX5016BT.
*
3
Only for DDX5016DAB. To use the digital radio, connect CX-DAB1
(optional accessory).
*
4
When connecting an external amplifier, connect its ground wire to
the chassis of the car; otherwise the unit may be damaged.
DDX_Mid_E.indb 63DDX_Mid_E.indb 63 2015/12/24 14:022015/12/24 14:02
