CONNECTION/INSTALLATIONCONNECTION/INSTALLATION

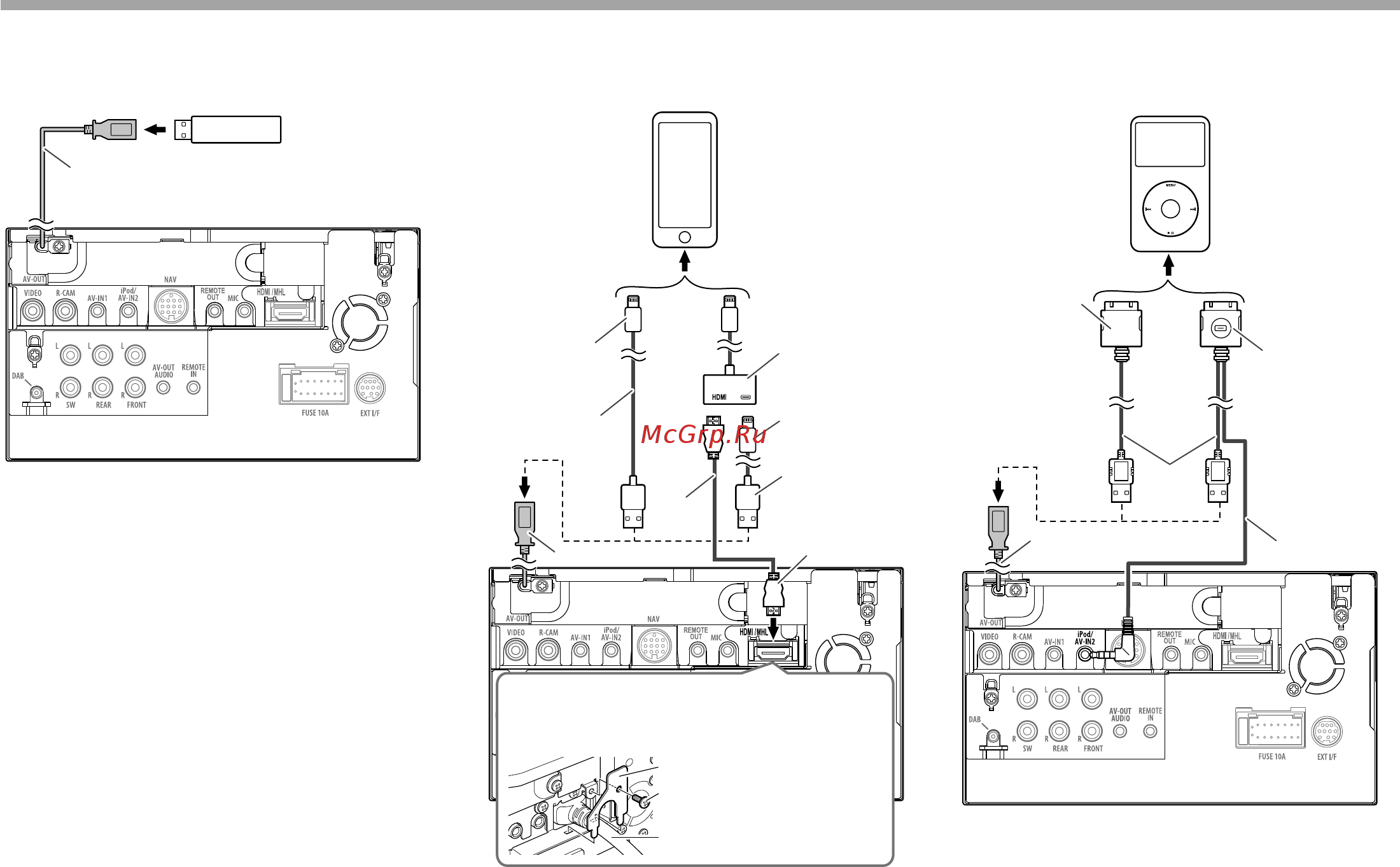

❏ Connecting a USB device
1.0 m
USB device*
(commercially available)
* Use CA-U1EX to extend the cable if necessary. (Max 500 mA, 5V)
❏ Connecting an iPod/iPhone
iPod/iPhone (Lightning connector models)
(commercially available)
Lightning-Digital AV
adapter (accessory of the
iPod/iPhone)
KCA-iP103
(optional accessory)
KCA-HD100
(optional accessory)
When connecting to the HDMI/MHL connector, fix the
HDMI/MHL cable using the fixture (6) and screw (7).
HDMI/MHL cable
6
7
0.8 m
0.8 m
1.8 m
KCA-iP103
(optional accessory)
1.0 m
iPod/iPhone (30-pin connector models)
(commercially available)
KCA-iP202
(optional accessory)
KCA-iP102
(optional accessory)
1.8 m
0.8 m
1.0 m
