Software Description
Intel
®
Turbo Boost Max Technology 3.0 Application / Driver
Processors containing the Intel
®
Turbo Boost Max Technology 3.0 feature have at
least one processor core whose maximum turbo frequency is higher than the other
cores. To realize the higher performance benefit of such a processor core, targeted
applications must run on that core.
The Intel
®
Turbo Boost Max Technology 3.0 Application / Driver directs targeted
application software to run on the higher performance processor cores as configured
by the user.
After installation, the Intel
®
Turbo Boost Max Technology 3.0 Application / Driver
automatically loads when the system starts.

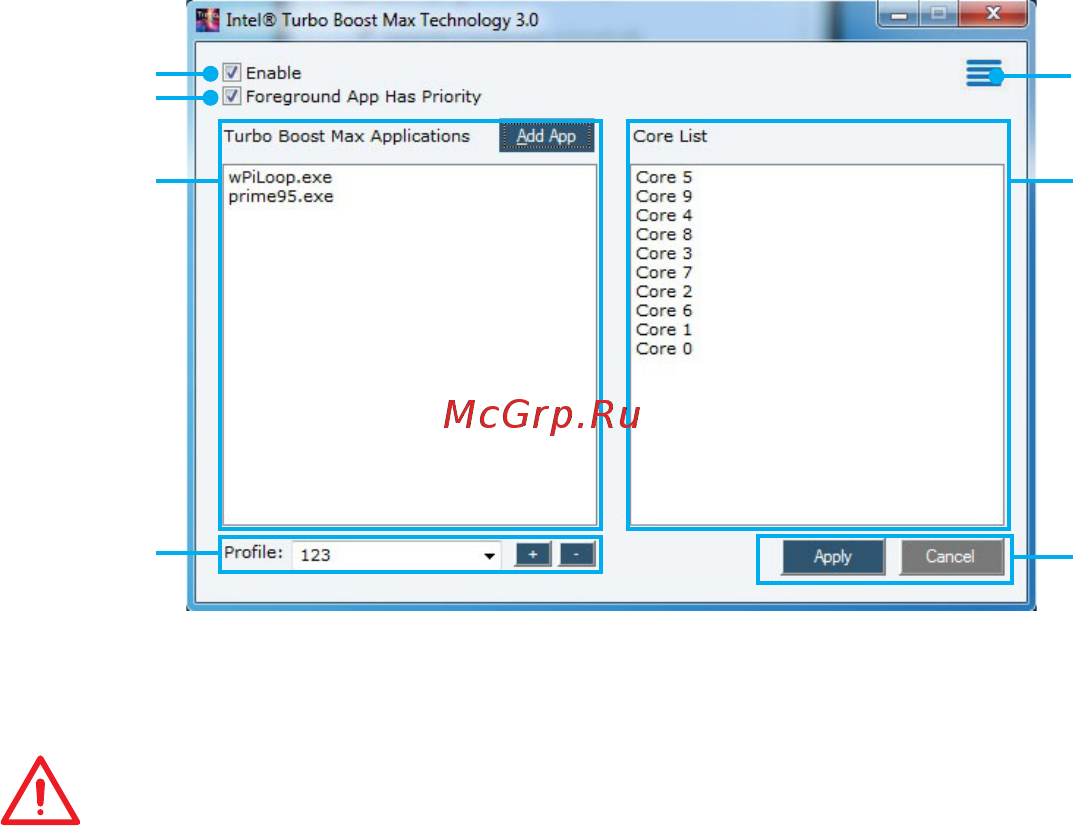

Enable
Foreground App
Has Priority
Turbo Boost Max
Applications
Profile
Core List
Advanced
Settings
Apply & Cancel
y Enable - allows you to enable Intel
®
Turbo Boost Max Technology 3.0 by checking
the box. When the box is un-checked, the software returns the system to normal OS
operation, which may not provide the best performance.
Important
In some cases, external software may cause the Intel
®
Turbo Boost Max Technology
3.0 Application / Driver to become disabled. In this case, the application displays
(External Control Active) to the right of the Enable control. Note that this may occur
even when you have checked the Enable check box.
y Foreground App Has Priority - When the box is checked, the in-focus application
becomes a targeted application and priority is given to it for placement of its
demanding work on processor cores in the Core List over any other targeted
applications in the Turbo Boost Max Applications list. When the box is unchecked,
priority is given to targeted applications in the Turbo Boost Max Applications list in
list order.
y Turbo Boost Max Applications - The list is in priority order with the top priority
targeted application at the top of the list. The Add App control can be used to
browse and select targeted applications to be added to the list. The list order can
be changed by right clicking on a targeted application name and selecting a control
from the displayed dialog box. Select Move Up to move the targeted application
towards the top of the list or Move Down to move the targeted application towards
the bottom of the list. Select Delete to delete the list entry.
