Overview of Components

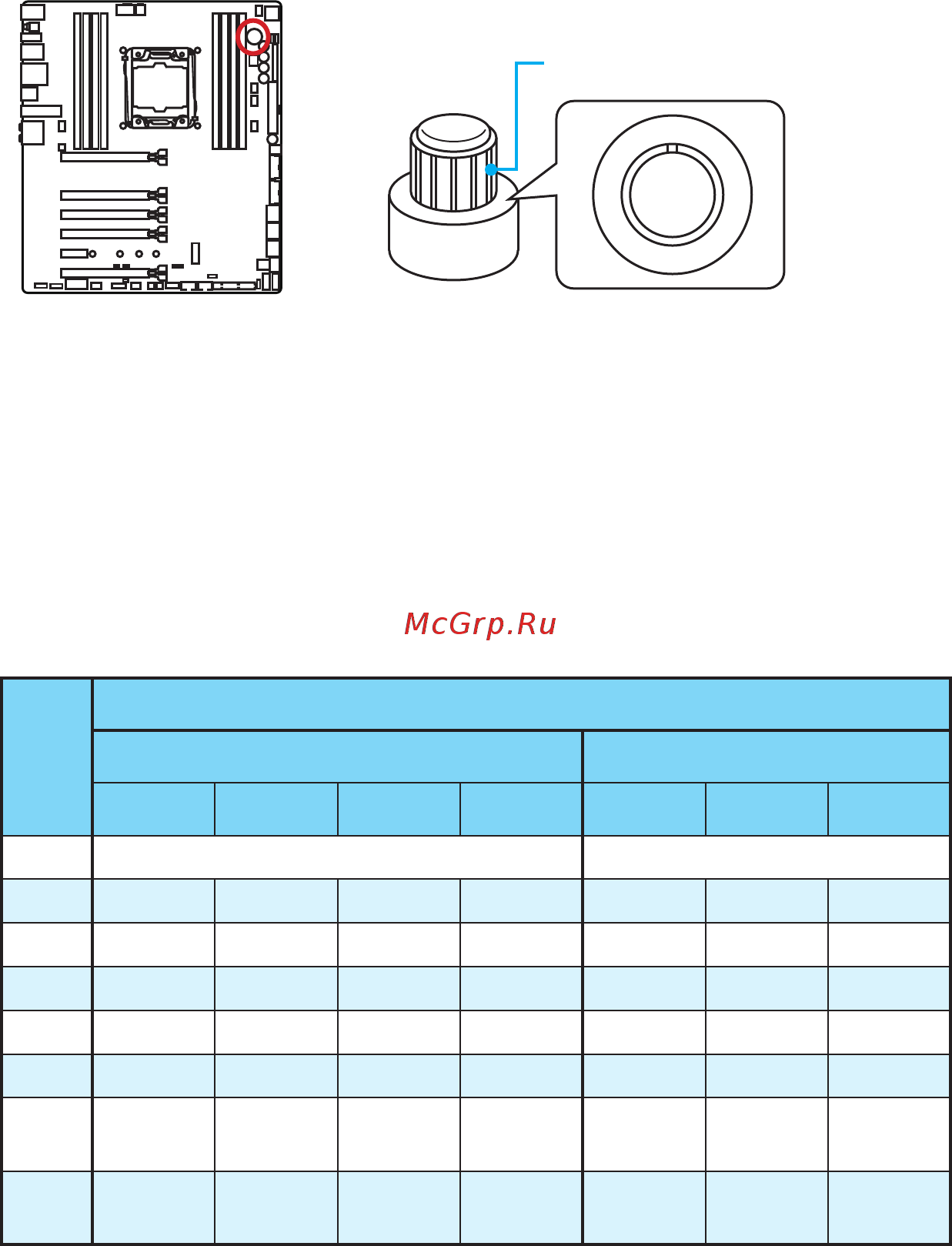

OC1: GAME BOOST Knob
This knob allows you to manually select a stage from number 0 (default) to number 11
(extreme) for overclocking the Intel X-SKU processors. The processor’s voltage and
frequency will be automatically adjusted after you power on your computer.
GAME BOOST knob
0
1
2
4
6
8
1
0
1
1
Using GAME BOOST Knob
To setup the GAME BOOST knob, take the following steps:
1. Set the GAME BOOST knob to hardware mode in BIOS Setup.
Note: To make sure the GAME BOOST is controlled by hardware, please refer to the
GAME BOOST LED indicators next to the GAME BOOST knob on the motherboard.
The red LED indicates the GAME BOOST is controlled by hardware and the white
by software. You can switch between hardware and software in BIOS Setup.
2. Power off the computer.
3. Rotate the GAME BOOST knob to select the overclocking stage as you desire.
Stage
CPU Frequency
Broadwell-E Haswell-E
i7-6950K i7-6900K i7-6850K i7-6800K i7-5960X i7-5930X i7-5820X
0 GAME BOOST disabled GAME BOOST disabled
1 3.6 GHz 3.8 GHz 3.9 GHz 3.7 GHz 3.7 GHz 3.9 GHz 3.8 GHz
2 3.7 GHz 3.9 GHz 4.0 GHz 3.8 GHz 3.8 GHz 4.0 GHz 3.9 GHz
4 3.9 GHz 4.0 GHz 4.1 GHz 3.9 GHz 4.0 GHz 4.2 GHz 4.1 GHz
6 4.1 GHz 4.2 GHz 4.3 GHz 4.1 GHz 4.2 GHz 4.4 GHz 4.3 GHz
8 4.3 GHz 4.3 GHz 4.4 GHz 4.2 GHz 4.4 GHz 4.6 GHz 4.5 GHz
10
4.5~4.4
GHz
4.6~4.4
GHz
4.7~4.6
GHz
4.5~4.4
GHz
4.6 GHz 4.8 GHz 4.7 GHz
11
4.6~4.5
GHz
4.7~4.5
GHz
4.8~4.7
GHz
4.7~4.6
GHz
4.8 GHz 5.0 GHz 4.9 GHz
4. Power on and then GAME BOOST will automatically overclock processor depending
on the stage you selected.
