43
Overview of Components
To disable GAME BOOST:
1. Set the GAME BOOST knob to HW mode in BIOS Setup.
2. Power off the computer.
3. Rotate the GAME BOOST knob to 0 and then power on. The configuration
parameters will be returned to its default values.
Important
y
You can also control the GAME BOOST function in BIOS Setup or with MSI
COMMAND CENTER software.
y
In order to optimize performance and improve system stability, when you activate
the GAME BOOST function, please leave the settings in the BIOS > OC menu
unchanged.
y
The success of overclocking depends on the components of your computer.
y
We do not guarantee the GAME BOOST overclocking range or the damages/risks
caused by overclocking behavior.
y
MSI components are recommended for better compatibility when using GAME
BOOST function.
Enabled
(Please enable this function during BIOS POST.)
Normal
(Default)

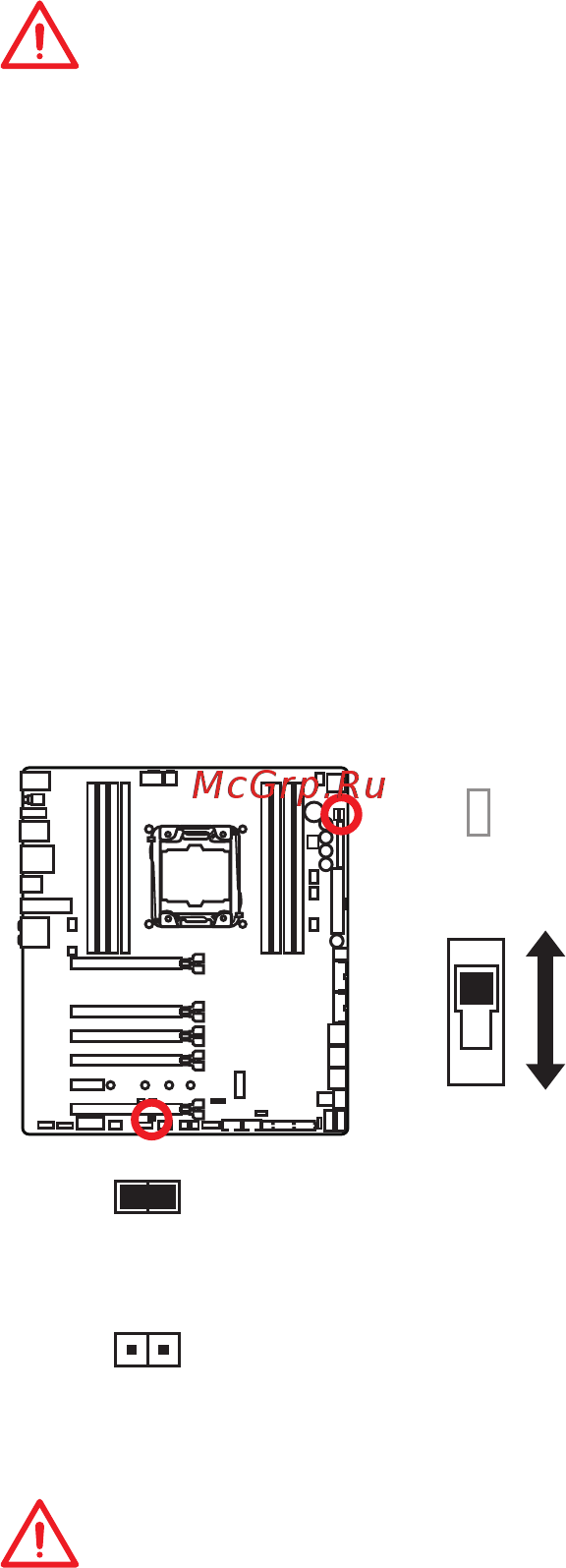

SLOW_1, JSLOW_1: Slow Mode Booting Switch/ Jumper
These switch and jumper are used for LN2 cooling solution, that provides the extreme
overclocking conditions, to boot at a stable processor frequency and to prevent the
system from crashing. You can use either switch or jumper to enable the Slow Mode.
Enabled
(Please enable this function during BIOS
POST.)
Normal
(Default)
White LED indicates that the Slow Mode is
enabled
Important
y
Users will try extreme low temperature overclocking at their own risks. The
overclocking results will vary according to the CPU version.
y
Please don’t switch to Enabled when power-off or the system will be un-bootable.
