54

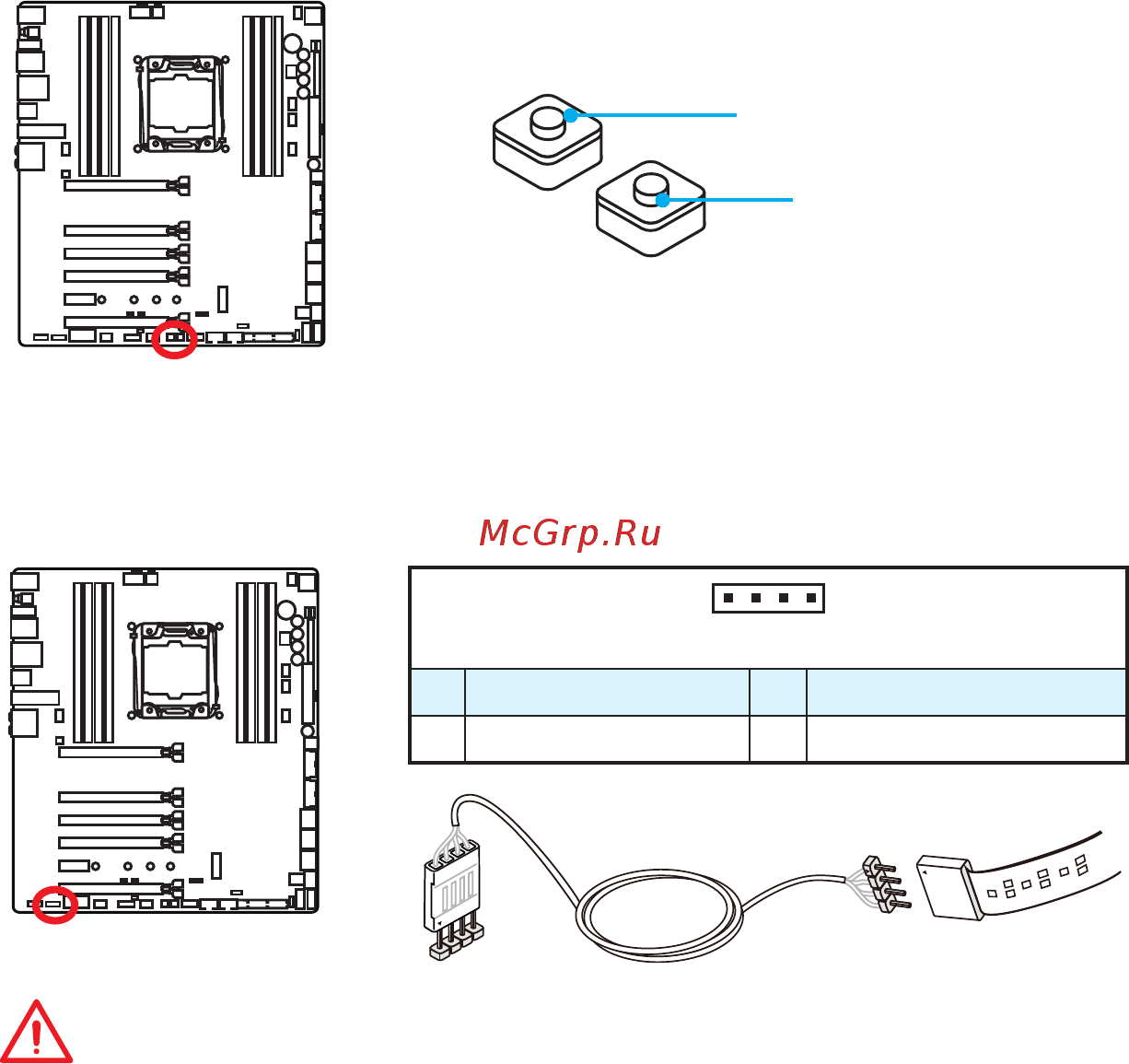

Overview of Components
OC_RT1, OC_FS1 : OC Retry Button, OC Force Enter BIOS Button
OC_RT1: When you press and hold this button, the system will keep retrying OC items
until it boot up successfully.
OC_FS1: When you press this button, the system will be forced into BIOS without
showing the OC_FAIL message.
OC_RT1
OC_FS1
JLED1: RGB LED connector
This connector allows you to connect the RGB LED strip.
Important
y
This connector supports 5050 RGB multi-color LED strips (12V/G/R/B) within 2
meters.
y
Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing the RGB LED strip.
y
Please use the LED Effect of GAMING APP to adjust, calibrate and control the LED
light, refer to the Software section for details.
1
1 +12V 2 G
3 R 4 B
1
