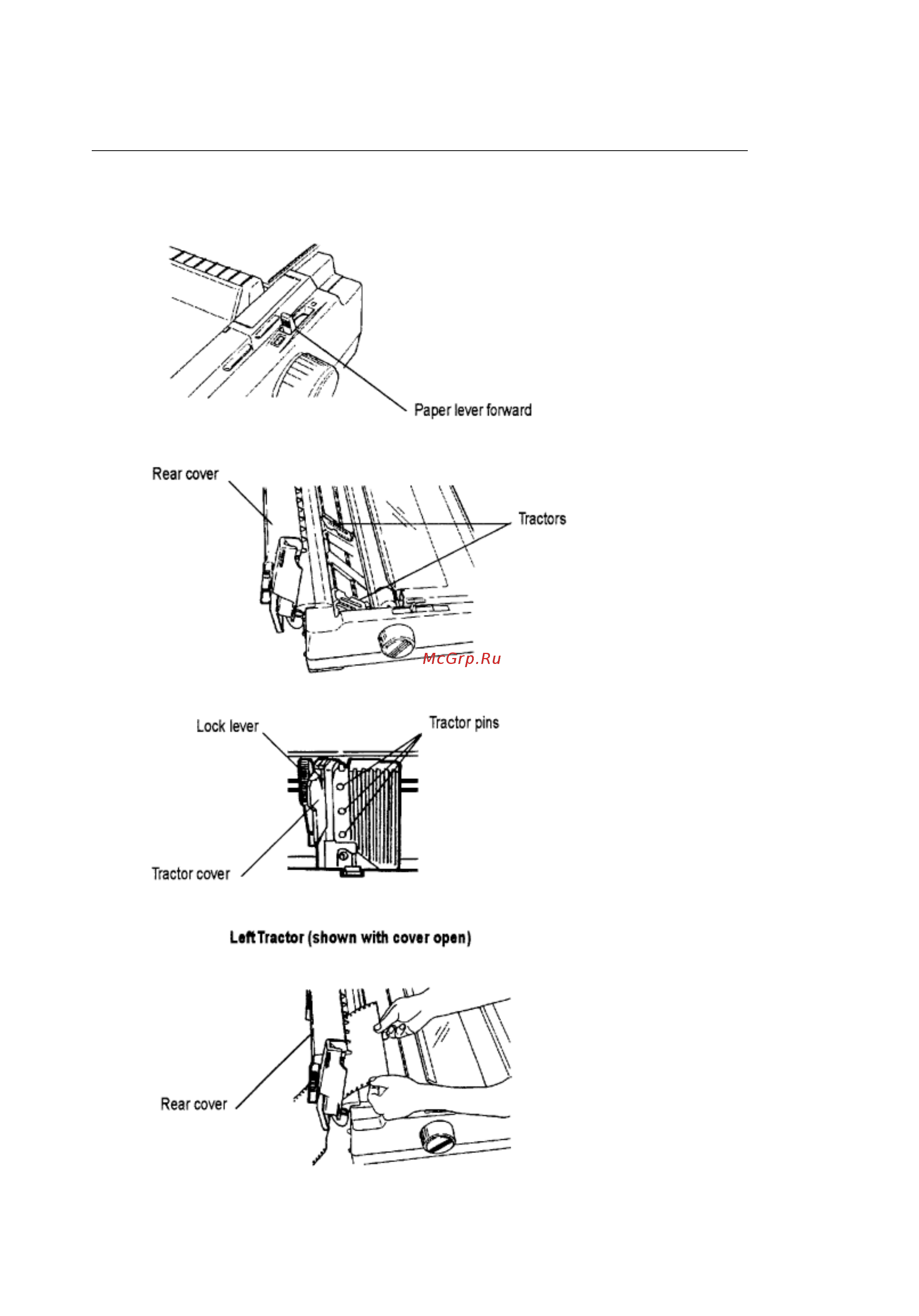

Loading Rear-Feed Continuous Forms
Loading Rear-Feed Continuous Forms
1. Pull paper lever forward to continuous forms position.
2. Open rear cover and locate tractors.
3. Open both tractor covers and pull forward on right-hand lock lever to unlock right tractor.
4. Insert paper under rear cover and pull it through.
5. Slide right-hand tractor to adjust it to width of paper, then set paper on tractor pins at either end and
ML395 ( 96-02-07 )
